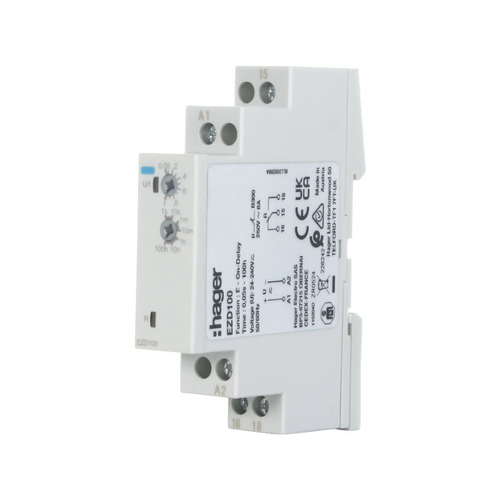

Name: Hager EZD100 | Delay On Time Relay 24-240V AC/DC | 50ms-100h
Brand: Hager Electrical
SKU: EZD100
Price: 161.65 AUD
Availability: InStock

Hager EZD100 | Delay On Time Relay 24-240V AC/DC | 50ms-100h

Description:

The Hager EZD100 is a Delay On Time Relay designed for electricians needing to manage circuit activation with precision. This device provides a controlled delay to the initiation of current, starting when voltage is applied, and is adjustable from 50 milliseconds to 100 hours to suit various requirements. The relay operation is indicated through green and yellow LED signals, offering clear status updates. It's built to cater to a wide range of power inputs and comes with specifications aimed at ensuring dependable performance over many uses.

Features:

Time Delay Control: Adjustable from 50 milliseconds to 100 hours.

LED Indicators: Visual confirmation of delay timing and relay status.

Wide Voltage Range: 24 to 240 V AC/DC, accommodating various power supplies.

High Capacity: Handles up to 2000 VA (8 A/250 V).

Durability: Mechanical life of 20 million operations and electrical longevity with 200,000 operations at 1000 VA resistance load.

Precision: Basic accuracy within ±1% and repeat accuracy less than 0.5% or ±5 ms.

FAQ:

Q: What is the maximum switching capacity of the Hager EZD100?
A: The maximum switching capacity is 2000 VA (8 A/250 V).

Q: How accurate is the delay timing on the Hager EZD100?
A: The basic accuracy is within ±1% of the maximum scale value, and the repeat accuracy is less than 0.5% or ±5 ms.

Q: Can the Hager EZD100 handle different power supply voltages?
A: Yes, it supports a supply voltage range of 24 to 240 V AC/DC, making it versatile for various installations.

Specification

Details

Supply voltage

24 ... 240 V

Supply voltage limit

-15% ... +10%

Rated consumption

4 VA (1.5 W)

Rated frequency

48 ... 63 Hz

Adjustable Range

50ms - 100h

Recovery time

100 ms

Drop out voltage

>30% of the min supply voltage

Rated voltage

250 V ~

Switching capacity

2000 VA (8 A/250 V ~)

Fuse protection

8 A fast acting

Mechanical Life

20 x 10⁶ operations

Electrical Life

2 x 10⁵ operations at 1000 VA resistive load

Switching frequency max.

6/min at 1000 VA

Overvoltage category

III

Rated surge voltage

4 kV

Insulation testing voltage

1680 V

Duty cycle

100%

Connecting terminal cross-sections

With conductor sleeve 1 x 0.5 to 2.5 mm² /2 x 0.5 to 1.5 mm²
Without conductor sleeve 1 x 4 mm²
Without conductor sleeve (flexible) 2 x 2.5 mm²

Basic accuracy

±1% of maximum scale value

Adjustment accuracy

<5% of maximum scale value

Repeat accuracy

<0.5% or ± 5 ms

Temperature influence

≤0.01% / °C

Operating temperature

-25 ... +55°C

Storage/transport temperature

-25 ... +70°C

Relative humidity

15% ... 85%

IP Rating

IP20

TYPE

VALUE

Type

Delay Timer

Brand

Hager

Brand	Hager Electrical
SKU	EZD100
Barcode #	3250615600592
Shipping Weight	0.0700kg
Shipping Width	0.095m
Shipping Height	0.025m
Shipping Length	0.085m
Shipping Cubic	0.000201875m3
