Description:

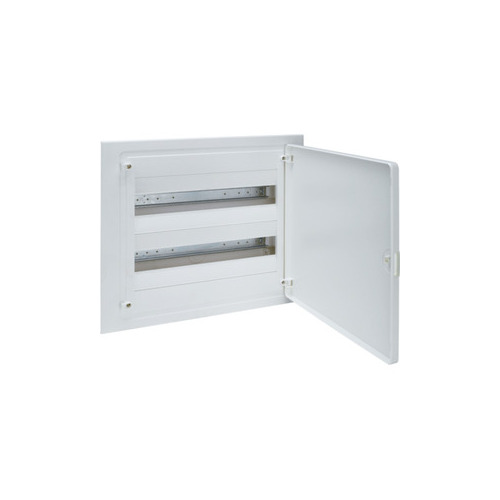

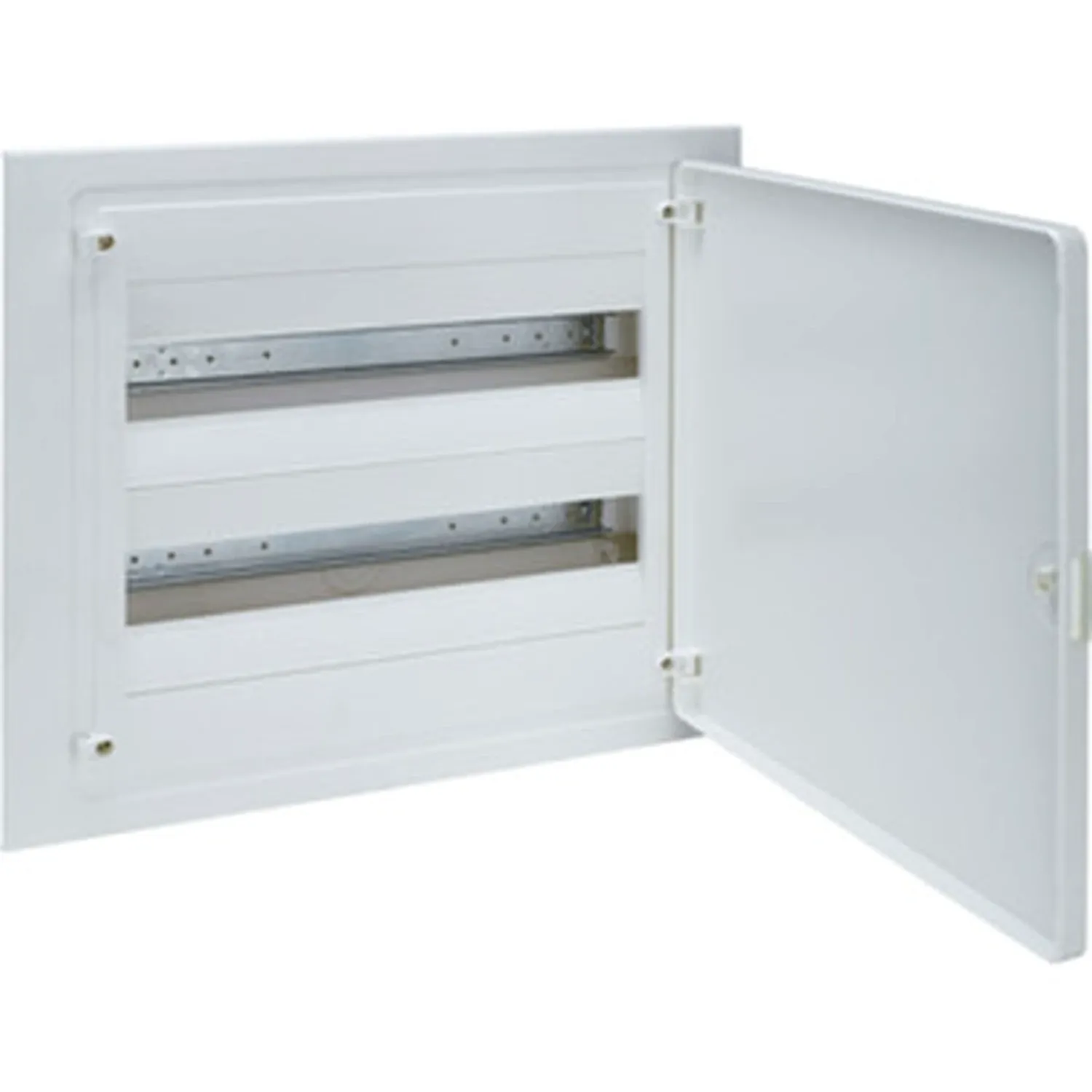

The Hager VF218PT GOLF 36 Pole 2 Row Flush Mount Distribution Board stands as a benchmark in electrical distribution, offering a blend of innovation and efficiency for both contractors and homeowners. Designed for flush mount installations, this board is part of a versatile range that accommodates 2 rows and 36 modules.
Its adaptable design accommodates devices up to 70mm in installation depth. The door's flexibility to open up to 180 degrees, with the option to be fitted on either the right or left side, enhances user convenience and accessibility. For added security, an optional lock and keys are available.
The VF218PT distribution board is engineered for ease of installation. Its symmetrical wall box and cover, along with removable cable entry sliders, ensure efficient cable management for both cable and conduit connections. Essential components such as earth and neutral terminals, pole fillers, and a patented marking system in enclosures of 36 modules streamline the installation process.
This distribution board also features cable management clips in 36-module enclosures, aiding in organized and clutter-free setups. The inclusion of transport protection film ensures the board remains pristine during transit.
Available in both flush and surface mounting options, and compatible with Q Link 63A terminals or 80A brass links, the Hager VF218PT GOLF Distribution Board is tailored to meet a wide range of distribution needs, marrying functionality with ease of use.
Features:
FAQ:
Q: Can this board be mounted in different ways?
A: Yes, it's designed for both flush and surface mounting.
Q: Does the distribution board have a locking option?
A: An optional lock and keys are available for enhanced security.
Q: Is it suitable for large electrical setups?
A: Absolutely, with 36 poles and 2 rows, it caters to extensive electrical configurations.
(VF218PT)
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
Specification | Details |
---|---|
Fixing mode | flush-mounting |
With a pipe-in lead | Yes |
Number of modules | 36 |
Nominal voltage | 400V |
Rated current | 80A |
Insertion depth | 72mm |
Depth of wall niche | 72mm |
Internal depth | 97.5mm |
Installation Dimensions (H x W x D) | 418 x 460 x 97.5mm |
Width in division units | 18 |
Built-in height | 382mm |
Built-in width | 426mm |
Identification of protection index | 40 |
Interlockable | No |
Number of keylock of the door | 0 |
Cover type | Closed(plain) |
Door locking | Without |
Door leave | Single |
Cover type | Door |
Transparent cover or door | No |
Colour | White |
RAL colour | RAL 9010 - Pure White |
Suitable for outdoor use | No |
Number of rows | 2 |
Can be accessorised | Yes |
Extension possible | Yes |
Earthing terminal block | Yes |
Neutral terminal block | Yes |
Signal passing door | Yes |
GWT Glow wire test | 850°C |
IK Rating | IK07 |
IP Rating | IP40 |
These specifications and characteristics outline physical, mechanical, electrical details.
Brand | Hager Electrical |
SKU | VF218PT |
Barcode # | 3250616464926 |
Shipping Weight | 3.2500kg |
Shipping Width | 0.470m |
Shipping Height | 0.105m |
Shipping Length | 0.430m |
Shipping Cubic | 0.021220500m3 |
TYPE | VALUE |
---|---|
Type | Enclosure |
Brand | Hager |
Colour | White |
