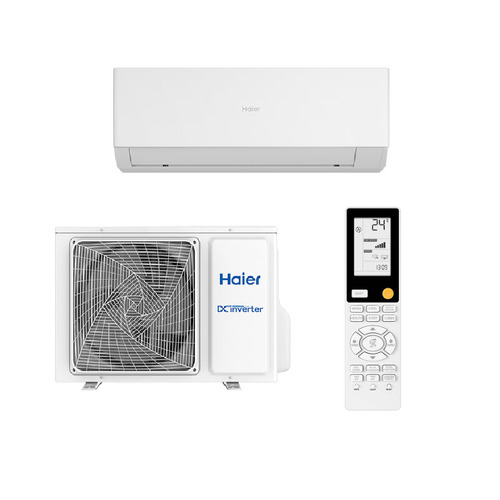

        Haier AS90QFDHRA-SET | 9kW Reverse Cycle Split System Air Conditioner

        9.0 kW Cooling
        9.5 kW Heating

        Haier Quartz: The Ultimate Blend of Style, Comfort, and Efficiency

        When it comes to air conditioning, Australians deserve nothing but the best. Enter Haier Quartz, the perfect combination of style, efficiency, and comfort.

        UV Protect sterilisation: UV Protect helps to deliver clean air to your room using Health mode, with built-in LED UV lights that kill airborne Staphylococcus aureus bacteria and the H3N2 virus at more than 91% effectiveness under specific test conditions.

        Self-cleaning technology: Your Quartz air conditioner will continue working efficiently to produce clean air, with a Self-clean function that flushes away dirt from the evaporator and reduces the growth of mould and bacteria. This process also cleans the outdoor unit, helping to clear salt and debris that can lead to corrosion.

        Smart control: Use the SmartHQâ„¢ app to turn on your air conditioner from anywhere to ensure the perfect temperature when you get home, or use your Wi-Fi-enabled Quartz with Google Home or Amazon Alexa voice control.

        Coanda Plus airflow: Engineered to send airflow further, an aerodynamic louvre design helps to circulate air evenly throughout your room for total comfort.

        Easy installation and maintenance: Designed to help your installer get the job done fast, Quartz air conditioners come with simple positioning specifications. The control board and motor are also easily accessible for maintenance.

        Sleep mode: Sleep mode supports your ideal sleeping environment, raising, lowering or maintaining the temperature throughout the night for maximum comfort.

        Turbo mode: With the Turbo function, the motor and fan work more frequently, so you can enjoy a cool or warm room within a much shorter time.

        (AS90QFDHRA-SET)

        Warranty

        Warranty starts from the Invoice Date

        5-Year Warranty
        The Haier '5-Year Parts and Labour' warranty applies to all Haier split, multi-split and ducted air conditioners professionally installed in domestic premises in Australia, so when you choose Haier, you do so with the confidence of knowing you have many years of worry-free comfort ahead.

        Features
        Category Specification
        CAPACITY
        Cooling capacity (kW): 9kW
        Heating capacity (kW): 9.5kW
        CONSUMPTION
        COP: 3.57 / 3.54
        EER: 3.40 / 3.37
        HSPF-RES (Hot/Average/Cold): 4.481 / 3.908 / 3.392
        Star-Cool (Hot/Average/Cold): 4.5 / 3.5 / 4.0
        Star-Heat (Hot/Average/Cold): 2.5 / 2.0 / 1.5
        TCSPF-RES (Hot/Average/Cold): 6.078 / 5.394 / 5.746
        FEATURES
        Blue fin coils: true
        Built-in Wi-Fi smart control: true
        Compressor type: Rotary
        Concealed LED display: true
        DRED (Demand Response) ready: true
        Google Home: true
        Infrared remote control: true
        Refrigerant factory charge: 1.55kg
        Standard controller: YR-HJ
        INSTALLATION
        Indoor unit model: AS90QFDHRA
        Indoor unit weight: 21.5kg
        Liquid line: 6.35mm
        Maximum pipe run: 25m
        Outdoor unit model: 1U90QADFRA
        Outdoor unit weight: 51kg
        Suction line: 15.88mm
        PERFORMANCE
        Airflow: 320L/S
        DC inverter: true
        R32 Refrigerant: true
        Sound power SWL (outdoor): 69dBA
        Sound pressure SPL (indoor): 48 / 42 / 36 / 30dBA
        Sound pressure SPL (outdoor): 56dBA
        Working temperature cooling: -10℃ ~ 46℃
        Working temperature heating: -15℃ ~ 24℃
        POWER REQUIREMENTS
        Supply frequency: 50Hz
        Supply voltage: 220-240V
        PRODUCT DIMENSIONS
        Indoor unit depth : 275mm
        Indoor unit height: 365mm
        Indoor unit width: 1316mm
        Outdoor unit depth : 370mm
        Outdoor unit height : 815mm
        Outdoor unit width: 950mm
        WARRANTY
        Parts and labour: 5 years
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Haier
        SKU AS90QFDHRA-SET
        TYPE VALUE
        Type Air Conditioning
