        Learn more by watching our Clipsal Schneider TeSys LADN22 | Auxiliary contact block | 2NO + 2NC video.

        Description

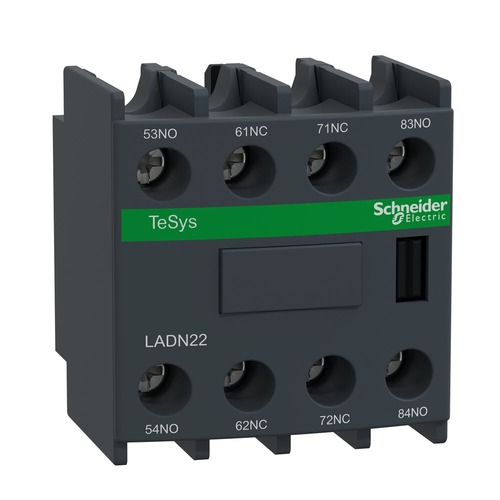

        Clipsal Schneider TeSys LADN22 | Auxiliary contact block | 2NO + 2NC

        The TeSys D instantaneous auxiliary contact block is designed for use with contactors LC1D, LC1F, and control relays CAD.

        It offers 2 normally open (NO) and 2 normally closed (NC) contact, with the NC contacts certified to mirror the NO contacts.

        The contact block can handle a rating of up to 10A/690V AC and has screw clamp terminals for easy connection.

        It features a convenient clip-on front mounting and ensures high reliability and durability.

        The contact block is certified to multiple standards, such as IEC, UL, CSA, CCC, and EAC and complies with Green Premium regulations (RoHS/REACh).

        Features:

        Range TeSys
        TeSys Deca
        Product name TeSys Deca
        Product or component type Auxiliary contact block
        device short name LADN
        Range compatibility TeSys D CAD
        TeSys D LC1D
        TeSys F LC1F
        TeSys F CR1F
        TeSys Deca CAD
        TeSys Deca LC1D
        Mounting location Front
        Pole contact composition 2 NO + 2 NC
        Contacts operation Instantaneous
        [Ue] rated operational voltage 690 V AC 25...400 Hz
        [Ie] rated operational current 6 A at 120 V AC-15
        1.04 A at 690 V AC-15
        0.55 A at 125 V DC-13
        0.1 A at 600 V DC-13
        [Ui] rated insulation voltage 690 V conforming to IEC 60947-5-1
        600 V conforming to UL
        600 V conforming to CSA
        [Ith] conventional free air thermal current 10 A (at 60 °C)
        Standards EN/IEC 60947-5-1
        UL 60947-5-1
        CSA C22.2 No 60947-5-1
        GB/T 14048.5

        (LADN22)

        Warranty

        The warranty starts from the Invoice Date.

        Domestic Use: 12 Months
        Commercial Use: 12 Months
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU LADN22
        Barcode # 3389110384031
        Shipping Weight 0.0500kg
        Shipping Width 0.044m
        Shipping Height 0.048m
        Shipping Length 0.042m
        Shipping Cubic 0.000089000m3
        View Datasheet
        TYPE VALUE
        Type Contactor
        Brand Clipsal by Schneider Electric
        Range TeSys Deca contactors
        [Ue] rated operational voltage 690 V AC 25...400 Hz
        Product or component type Auxiliary contact block
        Pole contact composition 2 NO + 2 NC
        Conventional free air thermal current 10 A (at 60 °C)
