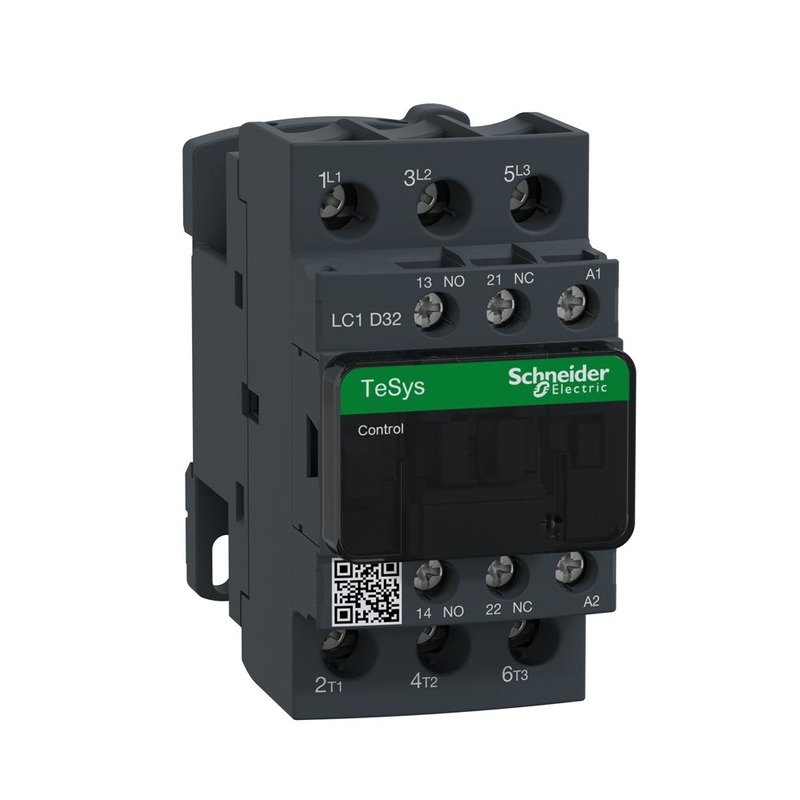

Clipsal Schneider TeSys LC1D32N7 | D Contactor 32A | AC-3 | 415Vac Coil
Learn more by watching our Clipsal Schneider TeSys LC1D32N7 | D Contactor 32A | AC-3 | 415Vac Coil video.
The TeSys D contactor is a device used for controlling motors. It has three poles. It is normally open (NO), meaning the circuits are not connected when the contactor is not energised. It is designed for motor control applications with a maximum current rating of 32A and a voltage rating of 690V in AC-3 mode (suitable for motor power of 15kW at 400V).
The contactor has a coil that operates on 415V AC power at 50/60Hz. It also has built-in auxiliary contacts, consisting of one normally open (NO) and one normally closed (NC) contact. These auxiliary contacts are certified to provide reliable switching.
The connection to the contactor is made using screw clamp terminals, which provide secure and easy-to-use connections. The contactor is designed to handle high operating rates of up to 3600 cycles per hour and can operate in environments with temperatures up to 60 degrees Celsius. This ensures its reliability and durability in demanding applications.
The TeSys D contactor has a compact design with a width of 45mm, allowing for easy installation on a DIN rail or through screw fixing. It is certified to meet multiple international standards, including IEC, UL, CSA, CCC, EAC, and Marine. It also complies with Green Premium standards and meets environmental regulations such as RoHS and REACh.
Highly competitive coil consumption Small changes can generate significant savings. The new Deca green contactor is equipped with an innovative electronic coil. These electronic-coil contactors require up to 80 % less energy than electro-mechanical contactors. This innovation results in concrete values: for example, large plants can noticeably reduce their energy bills and heat dissipation in cabinets.
Features:
| Range | TeSys TeSys Deca |
|---|---|
| Range of product | TeSys Deca |
| Product or component type | Contactor |
| device short name | LC1D |
| Contactor application | Resistive load Motor control |
| Utilisation category | AC-4 AC-1 AC-3 AC-3e |
| Poles description | 3P |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC 25...400 Hz Power circuit: <= 300 V DC |
| [Ie] rated operational current | 32 A (at <60 °C) at <= 440 V AC AC-3 for power circuit 50 A (at <60 °C) at <= 440 V AC AC-1 for power circuit 32 A (at <60 °C) at <= 440 V AC AC-3e for power circuit |
| [Uc] control circuit voltage | 415 V AC 50/60 Hz |
(LC1D32N7)
Warranty starts from the Invoice Date
Domestic Use: 18 Months
Commercial Use: 18 Months
Warranty Method: Return to Sparky Direct
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Clipsal by Schneider Electric |
| SKU | LC1D32N7 |
| Barcode # | 3389110351118 |
| Shipping Weight | 0.3750kg |
| Shipping Width | 0.045m |
| Shipping Height | 0.085m |
| Shipping Length | 0.092m |
| Shipping Cubic | 0.000351900m3 |
| TYPE | VALUE |
|---|---|
| Type | Contactor |
| Brand | Clipsal by Schneider Electric |
| Range | TeSys Deca contactors |
| Rated Current (A) | AC-1 40A |
| Rated Current (A) | AC-3 25A |
| Kilowatt Rating (kW) | 15kW at 415V 50/60Hz |
| Contact Configuration | 3P+NO+NC |
| Control circuit voltage | 240 V AC 50/60 Hz |
