    Learn more by watching our Schneider Electric TeSys LC1D32U7 | D Contactor 32A | AC-3 | 240Vac Coil video.

    Description

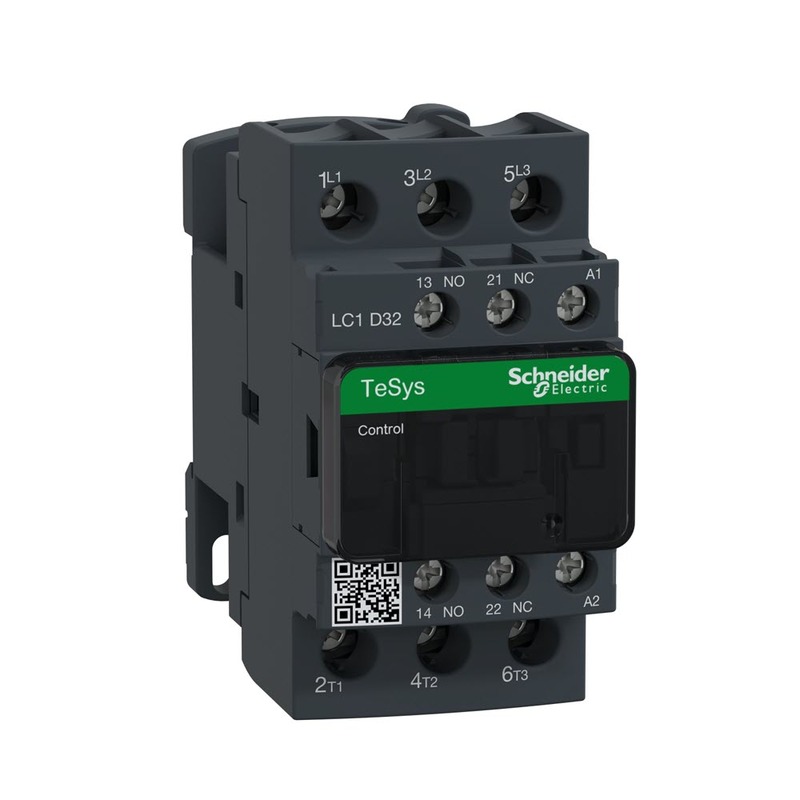

    Schneider Electric TeSys LC1D32U7 | D Contactor 32A | AC-3 | 240Vac Coil

    The TeSys D contactor is a device used for controlling motors. It has three poles. It is normally open (NO), meaning the circuits are not connected when the contactor is not energised. It is designed for motor control applications with a maximum current rating of 32A and a voltage rating of 690V in AC-3 mode (suitable for motor power of 15kW at 400V).

    The contactor has a coil that operates on 240V AC power at 50/60Hz. It also has built-in auxiliary contacts, consisting of one normally open (NO) and one normally closed (NC) contact. These auxiliary contacts are certified to provide reliable switching.

    The connection to the contactor is made using screw clamp terminals, which provide secure and easy-to-use connections. The contactor is designed to handle high operating rates of up to 3600 cycles per hour and can operate in environments with temperatures up to 60 degrees Celsius. This ensures its reliability and durability in demanding applications.

    The TeSys D contactor has a compact design with a width of 45mm, allowing for easy installation on a DIN rail or through screw fixing. It is certified to meet multiple international standards, including IEC, UL, CSA, CCC, EAC, and Marine. It also complies with Green Premium standards and meets environmental regulations such as RoHS and REACh.

    Highly competitive coil consumption Small changes can generate significant savings. The new Deca green contactor is equipped with an innovative electronic coil. These electronic-coil contactors require up to 80 % less energy than electro-mechanical contactors. This innovation results in concrete values: for example, large plants can noticeably reduce their energy bills and heat dissipation in cabinets.

    Features:

    Range TeSys
    TeSys Deca
    Range of product TeSys Deca
    Product or component type Contactor
    device short name LC1D
    Contactor application Resistive load
    Motor control
    Utilisation category AC-4
    AC-1
    AC-3
    AC-3e
    Poles description 3P
    [Ue] rated operational voltage Power circuit: <= 690 V AC 25...400 Hz
    Power circuit: <= 300 V DC
    [Ie] rated operational current 32 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
    50 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
    32 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
    [Uc] control circuit voltage 240 V AC 50/60 Hz

    (LC1D32U7)

    Warranty

    Warranty starts from the Invoice Date

    Domestic Use: 18 Months
    Commercial Use: 18 Months
    Warranty Method: Return to Sparky Direct

    Specifications

    These specifications and characteristics outline physical, mechanical, electrical details.

    Brand Clipsal by Schneider Electric
    SKU LC1D32U7
    Barcode # 3389110351729
    Package Weight 0.375kg
    Package Width 0.045m
    Package Height 0.085m
    Package Length 0.092m
    TYPE VALUE
    Type Contactor
    Brand Schneider Electric
    Range TeSys Deca contactors
    Rated Current (A) AC-1 40A
    Rated Current (A) AC-3 25A
    Kilowatt Rating (kW) 15kW at 415V 50/60Hz
    Contact Configuration 3P+NO+NC
    Control circuit voltage 240 V AC 50/60 Hz
