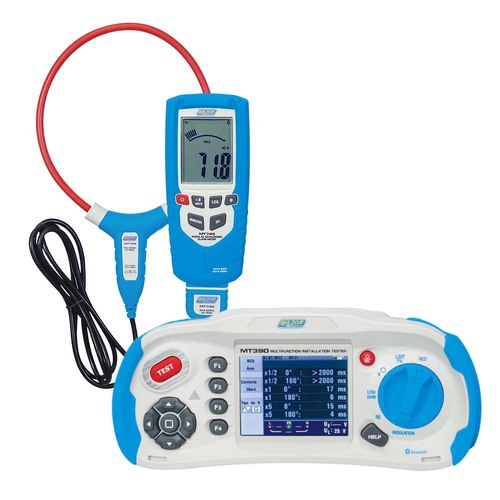

Major Tech MATE-2 | MT745 Clamp Meter + MT390 Tester
$2,568.50
$2,335.00 ex. GST
In Stock
Search Results:
Search Results:
Search Results:
Search Results:
Learn more by watching our Major Tech MATE-2 | MT745 Clamp Meter + MT390 Tester video.
Additional related video.
Additional related video.
Major Tech MT745 | 3000A AC True RMS Clamp Meter
Download the Datasheet
Description:
The MT745 3000A AC Flexible Current Clamp Meter with Data Logging is ergonomically designed for ease of use in confined spaces. The 8mm flexible coil can easily fit around flat busbar or parallel supply cables and can be maneuvered into cable trays where conventional hard jaw clamps cannot reach. The Bluetooth feature can perform live recordings or transfer recorded data to a smartphone app. Using the Log Key will start a recording stored on the instrument. The smartphone app allows the user to retrieve Data and set up recording sample rates. The unit features inrush current and frequency measurements and has a large backlit LCD, making it easier to read measurements.
Features:
Major Tech MT390 | Multifunction Installation Tester
Download the Datasheet
Description:
The MT390 is a fast and accurate multifunction installation tester that makes testing installations easy, ensures safety, and complies with regulations. It is a must-have in an electrician’s arsenal. It is the most cost-effective MFT on the market and is a favourite among electrical installers and commissioning engineers.
The unit features insulation resistance, low Ohm measurement, loop/PSC measurement, RCD measurement, earth resistance measurement, and phase rotation, and it shows the main voltage with frequency on screen. The MT390 has soft keys and menu options that allow the user to access the easy-to-use menu to select and change parameters. A friendly “Help” option displays a wiring diagram on the screen to ensure correct connection. With safety in mind, the meter connections panel has a protective slide that prevents incorrect connection while charging and communicating with the meter. The 3.5″ TFT screen displays multiple readings clearly and is visible from all angles. The instrument allows the user to save, review and label recordings. The all-in-one design includes Bluetooth file transfer and internal memory with easy-to-use software that eliminates time-consuming paperwork while testing multiple sites. The Bluetooth app allows the user to share a measurement to a smartphone instantly; both iOS and Android devices are supported, and the test report can be shared instantly via email in CSV format. Other connection options include Mini USB, S-Video TV out and MicroSD. The rugged double injection rubber housing withstands the knocks and bangs of everyday heavy use, and is supplied in a hard plastic carrying case. The MT390 complies with the IEC 61010 CAT IV 400V safety ratings.
Features:
(MATE-2)
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
| Function | Range | Resolution | Accuracy |
| AC Current | 0.5 to 3000A | 0.01A | ±(3.0% + 5 Digits) |
| Frequency | 50Hz – 400Hz | 0.1A | ±(3.0% + 5 Digits) |
| True RMS Measurements | ACA | ||
| AC Bandwidth | 50 to 400Hz | ||
| Digital Display | 3000 | ||
| Bargraph | Yes | ||
| Data Logging | Yes | ||
| Overrange Indication | Yes | ||
| Jaw Size | 150mm Flexi Clamp | ||
| Min Max | Yes | ||
| Data Hold | Yes | ||
| Back Light | Yes | ||
| Enclosure | Moulded case | ||
| Low Battery Indication | Yes | ||
| Batteries | 2 x AAA | ||
| Weight | 315g | ||
| Dimensions | 230 x 76 x 40mm | ||
| Safety Specs | IEC61010-1 CAT IV 600V | ||
| Function | Range | Resolution | Accuracy |
| Continuity | 4-400.0Ω | 0.001Ω | ±(1.5% + 30 Digits) |
| Insulation Resistance | 125/250/500/1000V | 0.125 – 4000MΩ | ±(2% + 10 Digits) |
| Loop Range | 0 – 999Ω | 0.01Ω | ±(4% + 6 Digits) |
| PSC/PFC | 0.23A – 23000A | Derived from Loop and Voltage measurement | |
| RCD | x 5, x 1, x 1/2, auto ramp mA | 15/30/50/100/200/500/650/1000mA | |
| Measuring Range | 2000ms | ±(1% + 3) | |
| Voltage Measurement | 80V – 500V | 1V | ±(2% + 2 Digits) |
| Frequency Response | 45-65Hz | 1Hz | ±(2Hz) |
| Earth Resistance | 99.99/2000Ω | 0.01Ω | ±(2% + 30 Digits) |
| Short Circuit Current | >200mA | ||
| Rated Current | 1mA | ||
| Loop Impedance | L-PE, L-PE(ATT), L-N, L-L | ||
| Test Current | 8.0A – 25.0A | ||
| Phase Angle | 0° to 180° | ||
| PC Interface | USB/Bluetooth | ||
| Display | 3.5″TFT Display | ||
| Memory | SD Card | ||
| Back Light | Yes | ||
| Enclosure | Over Moulded case | ||
| Low Battery Indication | Yes | ||
| Batteries | 8 x AA | ||
| Weight | 631g | ||
| Dimensions | 220 x 94.6 x 60.5mm | ||
| Safety Specs | IEC61010-1 CAT IV 400V | ||
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Major Tech |
| SKU | MATE-2 |
| TYPE | VALUE |
|---|---|
| Brand | Major Tech |
| Combo | MT745 + MT390 |
