Name: Major Tech MT-COMBO-3 | MT720 Clamp Meter + MT310 ELCB Tester + MT403 NCV Detector
Brand: Major Tech
SKU: MT-COMBO-3
Price: 214.50 AUD
Availability: InStock

Video

Learn more by watching our Major Tech MT-COMBO-3 | MT720 Clamp Meter + MT310 ELCB Tester + MT403 NCV Detector video.

Additional related video.

Description

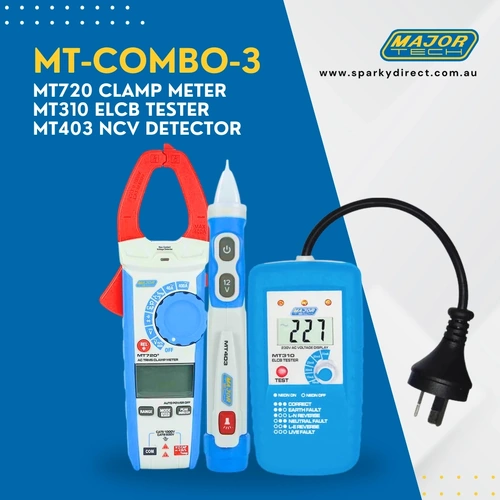

Major Tech MT-COMBO-3 | MT720 Clamp Meter + MT310 ELCB Tester + MT403 NCV Detector

Description:

The Major Tech MT-COMBO-3 is an all-encompassing electrical testing kit for professional electricians. It combines the MT720 Clamp Meter for accurate AC and DC measurements, the MT310 ELCB Tester for socket testing, and the MT403 NCV Detector, which is waterproof and dustproof. This kit offers everything needed for comprehensive diagnostics and testing in any environment, ensuring safety and efficiency on the job.

MT720 400A AC True RMS Clamp Meter:

The MT720 offers precise True RMS readings for AC/DC voltage up to 1000V and AC up to 400A. It features a 4000-count backlit LCD for clear visibility, integrated functions for resistance, frequency, capacitance, and temperature measurements, and special modes like INRUSH Current and VFD. The clamp’s 30mm size accommodates large cables, enhancing its versatility in industrial applications.

MT720 Features:

True RMS Measurement: Ensures accurate and reliable readings.
Comprehensive Testing Range: Measures AC/DC voltage, current, resistance, frequency, capacitance, and temperature.
Advanced Functions: Includes INRUSH Current measurement and VFD capability.
User-Friendly Design: Features a backlit LCD and auto power-off for energy saving.

MT310 Socket ELCB Tester:

Compact and user-friendly, the MT310 efficiently tests socket wiring and circuit breakers with a test current of 35mA. It displays voltage and test results on an easy-to-read LCD and indicates correct wiring configurations with neon lights. Designed with durability, it features double-injected rubber housing and fixed current settings for reliable operation.

MT310 Features:

Accurate ELCB Testing: Provides precise socket testing and circuit evaluation.
Neon Light Indicators: Visual confirmation of correct wiring.
Rugged Construction: Double injection rubber housing enhances durability.
Compact and Lightweight: Easy to carry and use in various settings.

MT403 IP67 1000V NCV Detector:

Engineered for extreme conditions, the MT403 offers IP67 waterproof and dustproof protection. It detects AC voltages up to 1000V and includes a high-sensitivity mode for low voltage (12V) detection. The device's audiovisual indicators increase in frequency as it gets closer to the voltage source, and it features a robust design capable of withstanding a 2m drop.

MT403 Features:

IP67 Rating: Waterproof and dustproof, suitable for harsh environments.
Enhanced Detection: Features a thinner probe tip for detailed work in socket outlets.
Dual Mode Operation: High voltage and low voltage detection modes for versatile use.
Drop Proof: Designed to withstand up to a 2m drop, ensuring robustness.

FAQ:

Q: What is the advantage of using the MT720 Clamp Meter for industrial applications?
A: The MT720's broad measurement capabilities and large clamp size make it ideal for diverse industrial environments. It provides accurate diagnostics for high-demand systems.

Q: Can the MT310 ELCB Tester be used on any AC voltage system?
A: The MT310 is optimized for 230V systems, making it suitable for most residential and commercial settings.

Q: How does the MT403 NCV Detector ensure safety in wet conditions?
A: With its IP67 rating, the MT403 ensures safe operation in wet and dusty conditions, preventing damage to the device and safeguarding the user during voltage detection tasks.

(MT-COMBO-3)

Warranty

Warranty starts from Invoice Date

Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct

Features

MT720 Specifications	Range	Accuracy
AC Current	40.00A - 400A	±(2.0% +8)
DC Voltage	4.000V – 1000V	±(1.0% +3)
AC Voltage	4.000V – 1000V	±(1.2% +5)
Resistance	400.0Ω – 40MΩ	±(1.5% +2)
Frequency	10Hz – 100kHz	±(1.0% +5)
Capacitance	99.00nF – 100mF	±(3.0% +5)
Temperature	-20⁰C – 1000⁰C	±(3.0% +3⁰C)
Duty Cycle	20.0% to 80%	±(1.2% +10)
Size	220 x 80 x 39mm
Weight	305g
MT310 Specifications	Range	Accuracy
ELCB Trip Ratings	10mA - 15mA - 20mA - 25mA - 30mA - 35mA	± 1.75mA AT 220V AC
AC Voltage Indication	From 150V AC to 245V AC
Wiring Identification
R R R	R R R Wiring Correct
Neon On	R R B No Earth
B B B	R B B Live and Neutral Reversed
Neon Off	B R R No Neutral
	B B R Live and Earth Reversed
	B B B No Live
Size	130 x 69 x 32mm
Weight	130g
MT403 Specifications	Details
AC Voltage	12V - 1000V
Frequency	50/60Hz
Voltage Detector	100V -1000V Red LED audible beep
Voltage Detector	12V -1000V Yellow then Red LED audible beep
Size	160 x 23 x 25mm
Weight	55g

Specifications

These specifications and characteristics outline physical, mechanical, electrical details.

Brand	Major Tech
SKU	MT-COMBO-3

TYPE	VALUE
Brand	Major Tech
Combo	MT720 + MT310 + MT403
