Name: Major Tech MT-COMBO-6 | MT1882 TRMS Multimeter + MT310 ELCB Tester + MT403 NCV Detector
Brand: Major Tech
SKU: MT-COMBO-6
Price: 319.00 AUD
Availability: InStock

Video

Learn more by watching our Major Tech MT-COMBO-6 | MT1882 TRMS Multimeter + MT310 ELCB Tester + MT403 NCV Detector video.

Additional related video.

Description

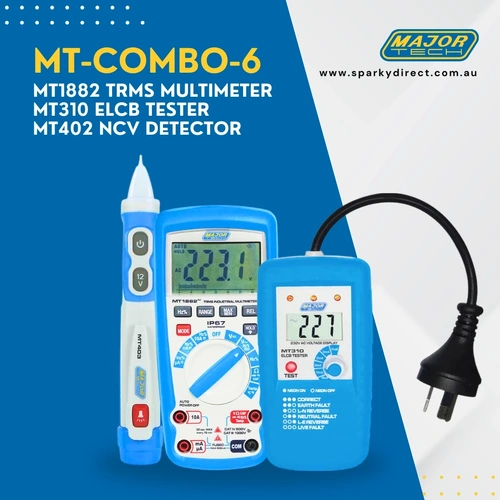

Major Tech MT-COMBO-6 | MT1882 TRMS Multimeter + MT310 ELCB Tester + MT403 NCV Detector

Description:

The Major Tech MT-COMBO-6 is a premium electrical testing kit designed for professional electricians. This comprehensive bundle includes the MT1882 True RMS Multimeter, MT310 Socket ELCB Tester, and MT403 IP67 NCV Detector, each offering advanced features to handle a wide range of testing requirements efficiently and safely.

MT1882 TRMS Multimeter:

The MT1882 is a high-performance multimeter providing accurate readings for AC/DC voltage up to 1000V, current up to 10A, and more. It features an IP67 dust and waterproof casing, variable frequency drive measurement capabilities, and a robust set of functions, including Min/Max/Data hold, auto range with manual override, and a non-contact voltage detector. Its ergonomic design includes overmould rubber housing and an integrated test lead holder for enhanced durability and usability.

MT1882 Features:

True RMS Accuracy: Delivers precise readings for all types of loads, critical for electrical diagnostics.
IP67 Protection: Dust and waterproof casing allows usage in harsh environments.
Comprehensive Measurement Capabilities: Includes voltage, current, resistance, capacitance, frequency, and temperature.
Enhanced Visibility: Features a 6000-count LCD with backlight and analogue bar graph.
Safety Functions: Includes non-contact voltage detection, auto power-off, and overmould rubber housing for durability.

MT310 Socket ELCB Tester:

Compact and easy to use, the MT310 tests the functionality of earth leakage circuit breakers using a clear LCD display to show AC voltage and correct wiring status with neon lights. It operates on 230V systems and offers fixed current settings for comprehensive testing.

MT310 Features:

User-Friendly Design: Lightweight and compact with neon indicators for wiring status.
Fixed Current Settings: Ranges from 10mA to 35mA for consistent ELCB testing.
Durable Build: Double injection rubber housing enhances its ruggedness.

MT403 IP67 NCV Detector:

The MT403 detects AC voltages up to 1000V without direct contact and is rated IP67 for waterproof and dustproof performance. It features dual modes for different voltage levels, increasing flash and beep rates as it approaches the voltage source, and includes a power on/off with a silent mode option for discreet use.

MT403 Features:

Non-Contact Voltage Detection: Safely identifies live voltages with visual and auditory signals.
Dual Detection Modes: Includes a high voltage and a low voltage (12V) mode for versatility.
Robust and Weather-Resistant: IP67 is rated for use in adverse conditions and is drop-proof up to 2 meters.

FAQ:

Q: What makes the MT1882 Multimeter suitable for industrial use?
A: The MT1882 is designed with a durable, waterproof casing and advanced measurement capabilities, making it ideal for demanding industrial environments.

Q: How does the MT310 ELCB Tester enhance testing efficiency?
A: The MT310 provides quick and clear results for earth leakage tests, with straightforward controls and fixed settings to speed up the testing process.

Q: Can the MT403 NCV Detector be used in wet conditions?
A: Yes, the MT403's IP67 waterproof and dustproof rating allows it to perform reliably, even in wet or dusty conditions.

(MT-COMBO-6)

Warranty

Warranty starts from Invoice Date

Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct

Features

MT1882 Specifications	Range	Accuracy
DC Voltage	600.0mV - 1000V	±(0.5% +2)
AC Voltage	6.000V - 1000V	±(0.8% +4)
AC Voltage VFD	50V - 600V	±(4.0% +9)
DC Current	600.0μA - 10A	±(1.0% +3)
AC Current	600.0μA - 10A	±(1.5% +3)
Resistance	600Ω - 60.00MΩ	±(0.8% +2)
Temperature	20 to 1000°C	±(3.0% +5)
Capacitance	40.00nF - 4000μF	±(1.0% +5)
Frequency	9.999Hz - 9.999MHz	±(4.0% +3)
Size	187 x 81 x 50mm
Weight	342g
MT310 Specifications	Range	Accuracy
ELCB Trip Ratings	10mA - 15mA - 20mA - 25mA - 30mA - 35mA	± 1.75mA AT 220V AC
AC Voltage Indication	From 150V AC to 245V AC
Wiring Identification
R R R	R R R Wiring Correct
Neon On	R R B No Earth
B B B	R B B Live and Neutral Reversed
Neon Off	B R R No Neutral
	B B R Live and Earth Reversed
	B B B No Live
Size	130 x 69 x 32mm
Weight	130g
MT403 Specifications	Range	Accuracy
AC Voltage	12V - 1000V
Frequency	50/60Hz
Voltage Detector (100V - 1000V)	Red LED audible beep
Voltage Detector (12V - 1000V)	Yellow then Red LED audible beep
Size	160 x 23 x 25mm
Weight	55g

Specifications

These specifications and characteristics outline physical, mechanical, electrical details.

Brand	Major Tech
SKU	MT-COMBO-6

TYPE	VALUE
Brand	Major Tech
Combo	MT1882 + MT310 + MT403
