Name: Major Tech MT290 | Electric Vehicle Supply Equipment Adaptor
Brand: Major Tech
SKU: MT290
Price: 742.50 AUD
Availability: InStock

Major Tech MT290 | Electric Vehicle Supply Equipment Adaptor

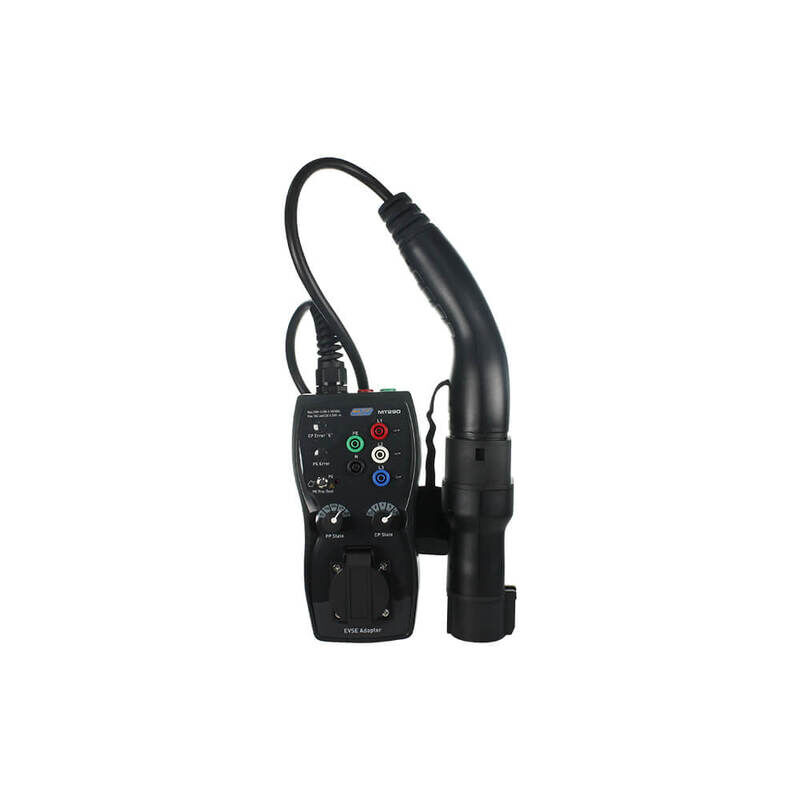

The Major Tech MT290 Electric Vehicle Supply Equipment Adaptor is an essential tool for verifying the electrical safety and functionality of all single and three-phase EV charge points. Designed for use with Mode 3 supply equipment, this adaptor facilitates testing connections for Type 1 and Type 2 EV plugs. It features measuring terminals for L1, L2, L3, N, and PE, as well as a mains socket to check external loads.

The MT290 can handle single-phase systems with a maximum input voltage of up to 250V and three-phase systems with a maximum input voltage of up to 430V. Equipped with separate phase indicators using three LED lamps, it also includes PE-Pre-test functions and rotary dials to simulate PP and CP states. This versatile adaptor is housed in an IP54-rated enclosure for dust and splash-proof protection.

EV Adaptor Features:

Type 2 to Type 1 Adaptor: Converts Type 2 connection to Type 1, for compatibility with a wider range of vehicles.

Mode 3 Testing Adaptor: Designed to verify EV charge points.

Comprehensive Measuring Terminals: Includes L1, L2, L3, N, and PE terminals for thorough testing.

Mains Socket: Allows connection to check an external load.

Single and Three-Phase Systems: Handles single-phase (up to 250V) and three-phase (up to 430V) systems.

Phase Indication: Three LED lamps indicate voltage presence.

Safety Features: PE Pre-Test function tests for dangerous voltage presence against earth.

Simulation Capabilities: Rotary dials simulate PP State (Cable Simulation) and CP State (Vehicle Simulation).

Robust Design: Housing is IP54-rated for dust and splash-proof protection.

MT290 FAQ:

Q: What types of EV connections does the MT290 support?
A: The MT290 supports both Type 1 and Type 2 EV connections.

Q: Can the MT290 handle three-phase systems?
A: Yes, it can handle three-phase systems with a maximum input voltage of up to 430V.

Q: How does the MT290 indicate the presence of voltage?
A: It uses three LED lamps to separately indicate the presence of voltage in each phase.

Q: What is the purpose of the rotary dials on the MT290?
A: The rotary dials simulate Proximity Pilot (PP) and Control Pilot (CP) states to mimic various charging scenarios and current capabilities of EV charging cables.

Specification

Details

Input Max Single Phase System

250V

Input Max Three Phase System

430V, 50/60Hz

Input Max

10A200.0mV – 600V

EVC-200 Connector

AC charging mode 3. Suitable for Type 2 wall top contact or fixed cable with vehicle connection (type 2 7P operation phase)

EVC-100 Connector

AC charging mode 3. Suitable for Type 1 with vehicle connection (type 1 5P single-phase)

PE Pre-Test

Yes
open (Error condition or disconnection of plug).
13A Coding for maximum current of the EV cable

PP Stimulation

20A
32A EVSE is connected and can operate in any
63A of these coding position.

CP Stimulation

states A (EV disconnect)
states B (EV connected)
states C (EV charged without ventilation)
states D (EV charged with ventilation)

CP Error “E”

On (CP short to PE via diode / off)

PE Error

On (PE error) / off

Size

227 x 115 x 60mm

Weight

832g (without connection cables)

TYPE

VALUE

Type

Tester

Brand

Major Tech

Colour

Black
