Learn more by watching our Major Tech MT300 | Multi-Function Wall Scanner 120mm Detection video.
Additional related video.
Additional related video.

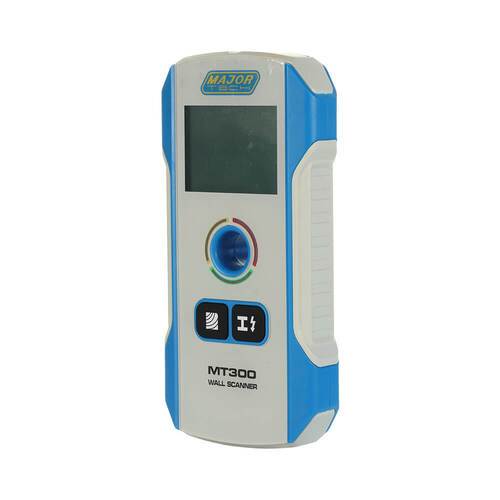

The Major Tech MT300 Multi-Function Wall Scanner is an essential tool for electricians and tradesmen. It is designed to detect metal, wires, pipes, wood, studs, and live AC cables with pinpoint precision. With a newly designed positioning hole, this scanner accurately and swiftly marks the edges and centres of metal, streamlining your projects. The 3-level sensitivity adjustment enhances measurement accuracy, ensuring you find your target with ease.
The scanner features an illuminating system that turns yellow or red based on the proximity to the target and green when no target is present. An audible beep guides the user, with continuous alarms indicating the centre of the target. Equipped with a high-performance anti-jamming chip, the MT300 guarantees accuracy. Its depth range includes 120mm for metal, 100mm for non-ferrous metal (copper), 50mm for AC lines, 40mm for single-strand copper wire, 38mm in Depth Mode, and 20mm in Exact Mode.
Q: What materials can the MT300 detect?
A: It can detect metal, wires, pipes, wood, studs, and live AC cables.
Q: How does the illuminating system work?
A: The scanner illuminates yellow or red based on the proximity to the target and turns green when no target is present.
Q: What is the maximum detection depth?
A: The maximum detection depths are: Metal: 120mm, Non-ferrous metal (copper): 100mm, AC line: 50mm, Single strand copper wire: 40mm, Wood: 2mm, Depth Mode: 38mm, and Exact Mode: 20mm.
(MT300)
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
| Specification | Details |
|---|---|
| Ferrous Metals Detection | 120mm |
| Non-Ferrous Metals (Copper) Detection | 100mm |
| AC Wire Detection | 50mm |
| Single Strand Copper Wire (≥4mm²) Detection | 40mm |
| Foreign Objects (Generally Refers to Wooden Files) | Exact Mode: 20mm, Deep Mode: 38mm |
| Foreign Objects | Refers to Wooden Files |
| Battery Capacity | 3.7V 300mAH |
| Continuous Working Time | About 2 Hours |
| Dimensions | 138 x 68 x 22mm |
| Weight | 122g |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Major Tech |
| SKU | MT300 |
| Barcode # | 6008229040993 |
| Shipping Weight | 0.2550kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.205m |
| Shipping Length | 0.050m |
| Shipping Cubic | 0.001025000m3 |
| TYPE | VALUE |
|---|---|
| Type | Wall Scanner |
| Brand | Major Tech |
| Max Detection | 120mm |
| Detects | Metal, wires, pipes, wood, studs and live AC cables |
