        Major Tech MT577 | Diagnostic Insulation Tester 10kV | Metal Case
        $2,766.50 $2,515.00 ex. GST
        Video

        Learn more by watching our Major Tech MT577 | Diagnostic Insulation Tester 10kV | Metal Case video.

        Description

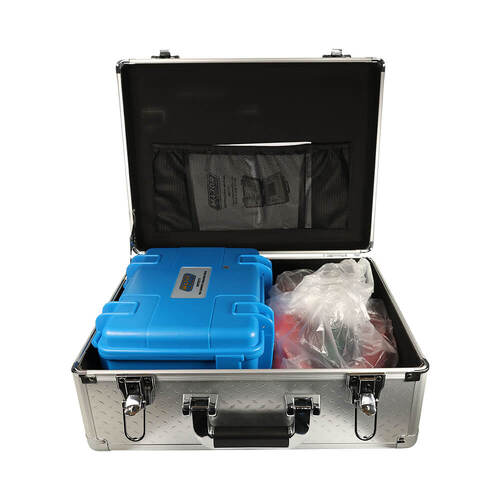

        Major Tech MT577 | Diagnostic Insulation Tester 10kV | Metal Case

        The Major Tech MT577 is a high-performance 10kV diagnostic insulation tester designed for professional electricians. This microprocessor-controlled device features a large 4-bit backlit display and provides precise insulation resistance measurements up to 35TΩ.

        With test voltages ranging from 250V to 10kV and a short circuit current output of up to 6mA, the MT577 is perfect for testing insulation on rotating machines, transformers, cables, high-voltage generators, electric circuits, and surge arresters.

        It includes advanced functions like Dielectric Absorption Ratio (DAR) and Polarization Index (PI) indication, auto-ranging, adjustable test times, and data storage for up to 500 recordings. The robust design, auto power-off feature, and ability to measure up to 750V AC and 1000V DC make the MT577 an essential tool for field use.

        Diagnostic Insulation Tester Features:

        • Wide Test Voltage Range: Insulation test voltages from 250V to 10kV with increments of 50V.
        • High Resistance Measurement: Measures insulation resistance up to 35TΩ.
        • Advanced Functions: Includes DAR and PI indications, auto-ranging, and adjustable test times.
        • Large Backlit Display: 4-bit backlit display for clear and easy reading.
        • Data Storage: Saves up to 500 recordings, which can be recalled and displayed.
        • Safety and Convenience: Automatically discharges the circuit after testing, auto power off, and alarm settings for measured values.
        • Versatile Measurement: Measures up to 750V AC and 1000V DC, and capacitance up to 50µF.
        • Robust Design: Housed in a durable case for extended field use, powered by 12.6V Lithium batteries.
        • PC Connectivity: Data is transferred to the PC via optical USB and supplied software.

        MT577 FAQ:

        Q: What voltage range does the Major Tech MT577 cover?
        A: It covers insulation test voltages from 250V to 10kV with increments of 50V.

        Q: What is the maximum insulation resistance the MT577 can measure?
        A: The MT577 can measure insulation resistance up to 35TΩ.

        Q: Can the MT577 store test results?
        A: Yes, it can save up to 500 test measurement results in its memory.

        Q: Is the MT577 suitable for field use?
        A: Yes, it is housed in a robust case for extended field use and powered by 12.6V Lithium batteries, with data transferable to a PC via optical USB.

        (MT577)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Features
        Specification Range Accuracy
        Insulation 250V - 1000GΩ
        500V - 2000GΩ
        1000V - 5000GΩ
        2500V - 1TΩ
        5kV - 10TΩ
        10kV - 35TΩ
        ±(3.0% +5)
        ±(3.0% +5)
        ±(3.0% +5)
        ±(3.0% +5)
        ±(3.0% +5)
        ±(3.0% +5)
        AC Voltage 0.1V – 750V ±(1.5% +3)
        DC Voltage 0.1V – 1000V ±(1.5% +3)
        DC Current 0.01nA – 6mA ±(5% +2)
        Capacitance 10nF – 50µF ±(10% +5)
        Short Circuit Current 6mA
        Current Measurement 0.1nA to 50µA (Depending on insulation resistance)
        Batteries 12.6V Rechargeable Lithium Batteries
        Dimensions 240 x 188 x 85mm
        Weight 2.75kg
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Major Tech
        SKU MT577
        Barcode # 6008229041259
        Shipping Weight 6.3600kg
        Shipping Width 0.475m
        Shipping Height 0.395m
        Shipping Length 0.230m
        Shipping Cubic 0.043153750m3
        TYPE VALUE
        Type Diagnostic Insulation Tester
        Brand Major Tech
        Insulation Resistance 1000GΩ - 35TΩ
        AC Voltage 0.1V – 750V
        Included Carry Case, Carry Straps, Tester, Test Leads, High Pressure Rod, USB, Data Line, Charger
        DC Voltage 0.1V – 1000V
        Insulation 250V - 10kV
