Description:

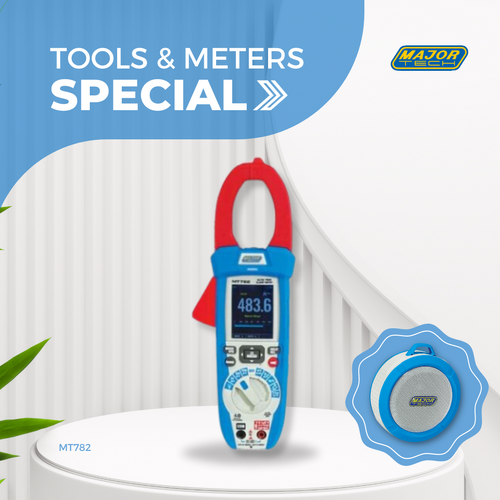

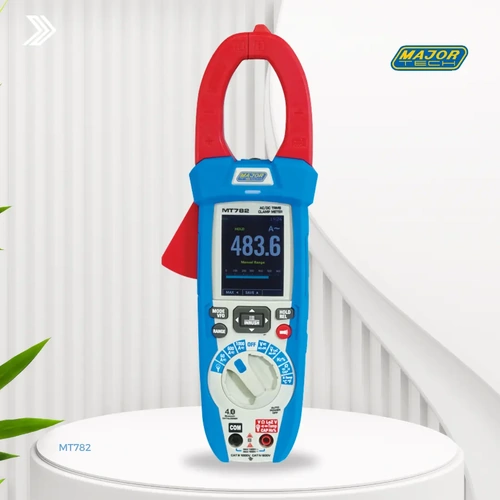

Are you ready to take control of your solar energy systems with unmatched precision and ease? The Major Tech MT782 1500V DC Solar Clamp Meter is here to revolutionize how you monitor, measure, and manage your solar installations. Don't just rely on guesswork; empower yourself with the tools you need for a sustainable, efficient energy future.
Benefits:
Crystal-Clear Display: Experience unparalleled clarity with the 2.4" TFT Colour LCD display featuring 6000 counts. No more squinting at tiny numbers; see your data in full detail.
Powerful Performance: With a Ø37mm Cable Clamp size and the capability to measure up to 1000A AC/DC, this clamp meter is designed to handle the demands of solar energy systems, ensuring accurate readings every time.
High Voltage Confidence: Trust in your measurements with the ability to handle up to 1500V DC and 1000V AC. Safely measure high-voltage components without compromising accuracy.
Versatile Functionality: This clamp meter goes beyond basic measurements. It offers AC+DC TRMS Voltage readings, INRUSH Current measurements, Capacitance up to 100mF, Resistance up to 60MΩ, and Frequency measurements up to 10MHz. It even includes a K-type Temperature range of -40⁰C to 1000⁰C.
Data Logging: Stay ahead of the curve with the built-in logging function, complete with Trend Capture. Monitor trends and make informed decisions to optimize your solar energy system's performance.
Safety First: The NCV (Non-Contact Voltage) Detector ensures your safety by detecting voltage without physical contact. The built-in flashlight adds convenience, especially in low-light conditions.
Comprehensive Testing: Conduct continuity tests, check diodes, and benefit from Max, Min, and Average readings with Time Stamps for thorough analysis.
Expandable Capabilities: For even greater flexibility, consider the optional MT740 Flexible Coil Clamp, extending measurement capacity to a whopping 3000A AC.
FAQ:
Q: Is this clamp meter suitable for solar energy applications?
A: Absolutely. The Major Tech MT782 is specifically designed to meet the demands of solar energy systems, offering precision and reliability in measuring critical parameters.
Q: Can I trust the high-voltage readings?
A: Yes, you can. This clamp meter is built to handle up to 1500V DC and 1000V AC safely and accurately, ensuring your confidence in high-voltage measurements.
Q: Does it come with data logging capabilities?
A: Yes, it does. The MT782 features a built-in logging function with Trend Capture, allowing you to monitor and analyze data trends over time.
Q: Can I expand its measurement capacity?
A: Certainly. Consider the optional MT740 Flexible Coil Clamp for an extended measurement range of up to 3000A AC.
Empower your solar energy journey with the Major Tech MT782 1500V DC Solar Clamp Meter. Take control, make informed decisions, and unlock the full potential of your solar installations. It's time to harness the sun's power with precision and confidence.
(MT782)
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Major Tech |
| SKU | MT782 |
| Barcode # | 6008229037887 |
| Package Weight | 0.550kg |
| Package Width | 0.270m |
| Package Height | 0.095m |
| Package Length | 0.042m |
| TYPE | VALUE |
|---|---|
| Type | Clamp Meter |
| Brand | Major Tech |
| Batteries | 7.4v Rechargeable |
| DC Voltage | 600mV-1500V |
| AC Voltage | 6V-1000V |
| Current | 600.0A-1000A DC, 60A-1000A AC |
| Colours | Blue, Red, White |
