        Description

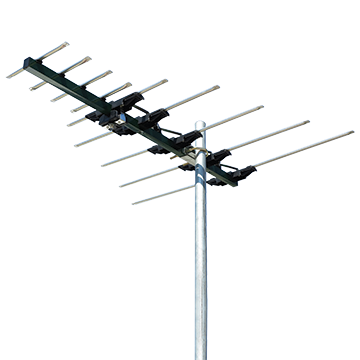

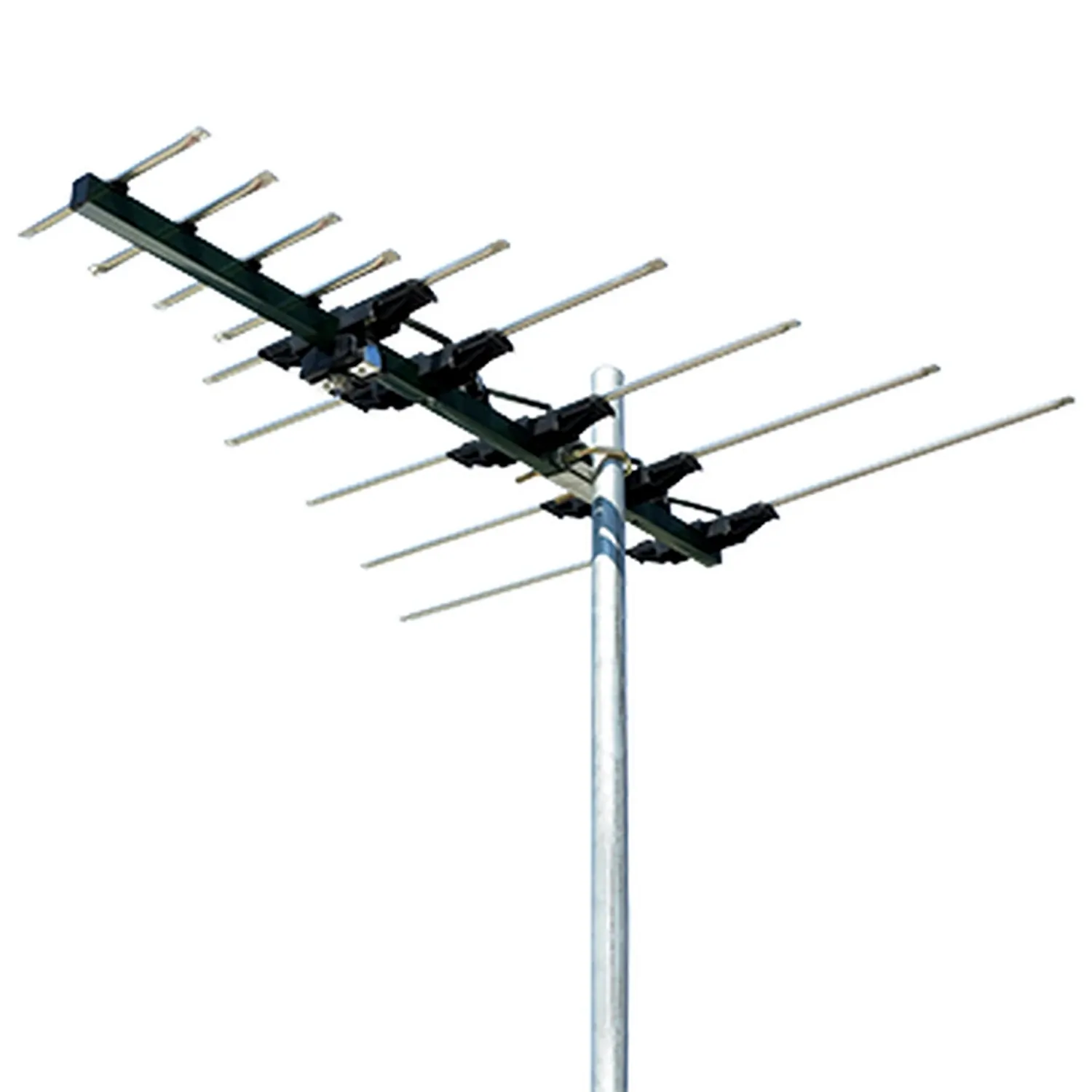

        Matchmaster 01MM-SA100 | Log Periodic Digital TV Antenna VHF/UHF 9 Elements

        Description:

        The MATCHMASTER 01MM-SA100 stands out as a compact yet highly efficient nine-element VHF/UHF log periodic/Yagi hybrid antenna. This Australian-made antenna is specifically designed to receive channels 6-12(VHF) and 28-46(UHF), making it perfect for metropolitan applications.

        One of its key features is the integrated 4G/5G low pass filter starting from 652MHz, offering more than 40dB of attenuation at 750MHz. This advanced filtering significantly reduces interference from cellular signals, ensuring the delivery of the best possible picture quality for your viewing experience.

        The SA100's VHF elements are constructed from 9.54mm diameter aluminium tubes, ensuring durability and optimal performance. Its thoughtful design includes a mounting clamp positioned at the balance point to prevent antenna sagging, enhancing both aesthetic appeal and functional longevity.

        Fully assembled and ready to install with snap-out elements, the SA100 is not just an antenna; it's a hassle-free solution for improved TV reception in urban environments.

        Features:

        • Hybrid Log Periodic/Yagi Design: Maximizes gain for desired channels.
        • 4G/5G LTE Filter: Over 40dB attenuation at 750MHz.
        • Durable Construction: Aluminum tubes with a diameter of 9.54mm.
        • Easy Installation: Fully assembled with snap-out elements.
        • Australian-Made: Locally produced for quality assurance.

        FAQ

        Q: Is the antenna difficult to install?
        A: No, it comes fully assembled and is designed for easy installation.

        Q: Does it reduce interference from mobile networks?
        A: Yes, it features a 4G/5G filter to minimize cellular interference.

        Q: What channels does it receive?
        A: It's designed to receive VHF/UHF channels 6-12 and 28-46.

        (01MM-SA100)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Features
        Specification Details
        Element 9
        Band B3, UHF
        Channels VHF (6-12)
        UHF (28-46)
        Maximum Gain VHF 5dB
        UHF 7dB
        Filtering 80dB
        4G/5G LTE 652MHz low pass filter
        40dB attenuation at 750MHz
        AV VSWR <2:1
        Front/Back Ratio VHF 12dB
        UHF 14dB
        Balun Type 'F' Type Balun
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Matchmaster
        SKU 01MM-SA100
        Barcode # 9322190021582
        Shipping Weight 1.7000kg
        Shipping Width 0.870m
        Shipping Height 0.130m
        Shipping Length 0.255m
        Shipping Cubic 0.028840500m3
        TYPE VALUE
        Type TV Antenna
        Brand Matchmaster
