        Learn more by watching our Matchmaster 03MM-DC21V | Digital Antenna VHF High Grain 8 Elements video.

        Description

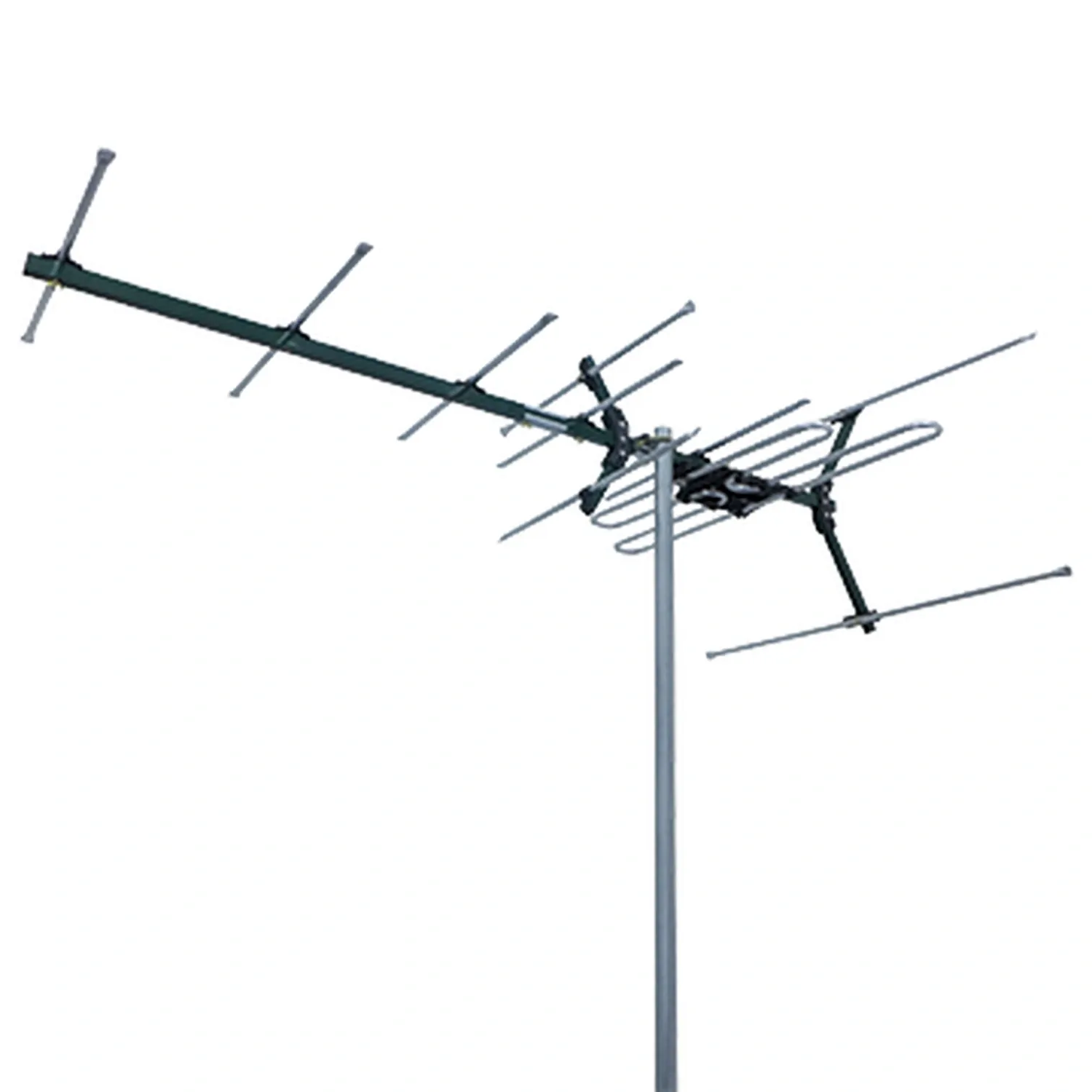

        Matchmaster 03MM-DC21V | Digital Antenna VHF High Grain 8 Elements

        Description:

        The Matchmaster 03MM-DC21V is an eight-element Yagi-style VHF antenna that is specifically engineered for exceptional reception of channels 6-12, making it an indispensable tool for electricians and consumers in both metro and country regions. It boasts a significant gain of 8dB, ensuring reliable medium to long-range reception, particularly in VHF (Band 3) frequencies.

        A standout feature of this antenna is its integrated 4G/5G LTE 652MHz low pass filter, which effectively minimizes signal interference from cellular networks, thus enhancing the overall quality of the TV picture. This technological advancement is crucial in today's increasingly connected world, where cellular signals are ubiquitous.

        The DC21V is designed to withstand the harsh Australian environment, featuring robust 12.7mm heavy-duty extruded aluminium elements. This durability ensures long-term reliability and performance, even in challenging conditions. Additionally, the snap lock design of the antenna facilitates quick and hassle-free installation.

        Features:

        • 8 Element VHF G Unit Yagi Antenna: Optimal reception for channels 6-12.
        • 4G/5G LTE Filter: 80dB low pass to reduce interference.
        • Heavy-Duty Construction: 12.7mm extruded aluminum for durability.
        • Easy Installation: Convenient snap lock design.
        • Ideal for Harsh Environments: Designed to endure Australian conditions.

        FAQ

        Q: Is this antenna suitable for areas with strong cellular signals?
        A: Yes, its built-in 4G/5G LTE filter effectively eliminates interference from cellular networks.

        Q: What is the gain of this antenna?
        A: It offers a maximum gain of 8dB, ideal for medium to long-range VHF reception.

        Q: Is the antenna easy to install?
        A: Yes, it features a snap lock design for quick and easy installation.

        (03MM-DC21V)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Features
        Specification Details
        Band B3
        Element 8 VHF G unit yagi antenna
        Channels VHF (6-12)
        Maximum Gain 8dB
        Filtering 80dB
        4G/5G LTE 652MHz low pass filter
        AV VSWR <2:1
        Front/Back Ratio 16dB
        Balun Type 'F' Type Balun
        Boom Length 1538mm
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Matchmaster
        SKU 03MM-DC21V
        Barcode # 9322190021278
        Shipping Weight 5.0000kg
        Shipping Width 0.260m
        Shipping Height 0.130m
        Shipping Length 0.960m
        Shipping Cubic 0.032448000m3
