Learn more by watching our Mercator Ikuu SSW03GN-ZB | Smart Triple Light Switch 10A Requires Neutral | Zigbee video.

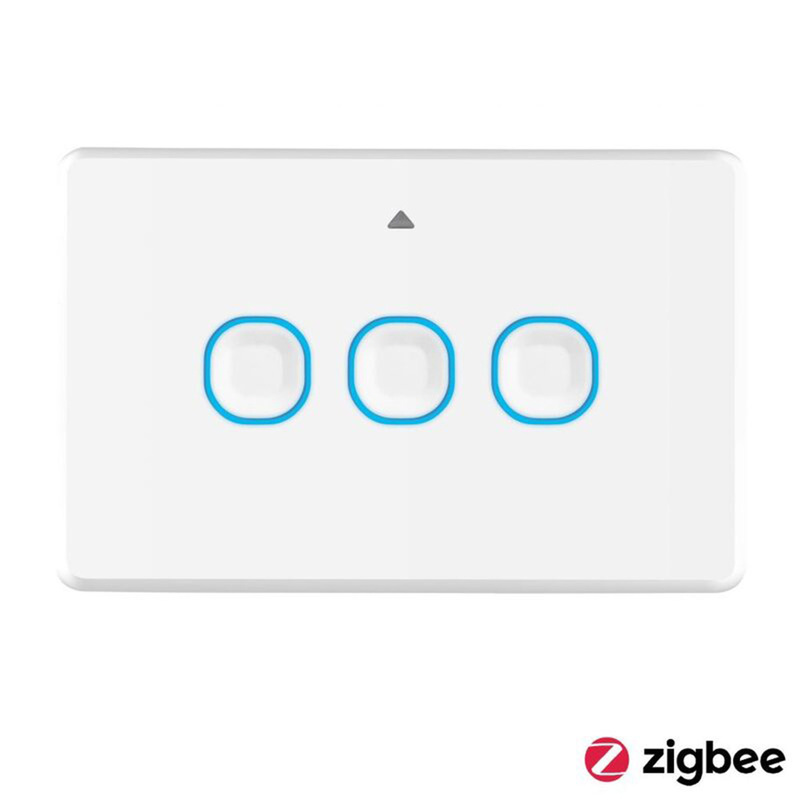

The Mercator Ikuu SSW03GN-ZB is a smart triple light switch designed for Zigbee 3.0 networks. It requires a neutral wire for installation and features touch-sensitive capacitive switches for smooth operation. A blue backlight indicator provides clear status visibility. Made from UV-resistant white polycarbonate, this switch fits standard mounting brackets and includes combination head screws for secure installation.
This switch enables app-based control for both individual and master switches, allowing users to customize timers and schedules via the Mercator Ikuu app. Compatible with Amazon Alexa and Google Assistant, it integrates seamlessly with smart home ecosystems. Designed for indoor use, the SSW03GN-ZB operates on 230-250V AC at 50Hz, supporting resistive, incandescent, and LED loads. It comes with a three-year in-home warranty for added peace of mind.
Q: Does this switch require a neutral wire for installation?
A: Yes, a neutral wire is required for proper operation.
Q: Can this switch be controlled remotely?
A: Yes, it supports app-based control, timers, and schedules via the Mercator Ikuu app.
Q: Is it compatible with voice assistants?
A: Yes, it works with Amazon Alexa and Google Assistant for hands-free control.
(SSW03GN-ZB)
Warranty starts from Invoice Date
Domestic Use: 3 Year
Commercial Use: 3 Year
Warranty Method: This product is valid for 3 years warranty from the date of purchase. Mercator requires a copy of "certificate of compliance' from the installing electrician to complete the claim.
| Specification | Details |
|---|---|
| Model | SSW03GN-ZB |
| Switches | 3 |
| Neutral Required | Yes |
| Connectivity | Zigbee 3.0 |
| Protocol | IEEE 802.15.4 |
| Wireless Frequency | 2.4GHz |
| Supply Voltage | 230 - 250V AC, 50Hz |
| Standby Wattage | <0.05W |
| Operating Load (All Channels Combined) | Resistive: 2500W (max) Incandescent: 2500W (max) LED: 250W (max) |
| Operating Load (Each Gang) | Resistive: 300W Incandescent: 300W LED: 300W |
| Switched Poles | Active |
| IP Rating | IP20 (Indoor use only) |
| Terminal Size | 6mm² (Fits up to 3 x 2.5mm² wires per terminal) |
| Housing Material | Polycarbonate |
| Contact Material | Brass |
| Weight | 145g |
| Dimensions | 115mm x 74mm x 44mm |
| Cut-out Dimensions | 80mm x 50mm |
| Mounting Centres | 84mm |
| Compliance / Standards | AS/NZS 4268, AS/NZS 60669.1, AS/NZS 60669.2.1, CISPR 15, CISPR 32, AS/NZS 2772.2 |
| Touch Capacitive Switches | Yes |
| Backlight Indicator | Blue backlight to indicate switch status |
| Smart Home Integration | Compatible with Amazon Alexa and Google Assistant |
| Warranty | 3 years in-home |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Mercator |
| SKU | SSW03GN-ZB |
| Barcode # | 9312699215193 |
| Package Weight | 0.192kg |
| Package Width | 0.080m |
| Package Height | 0.050m |
| Package Length | 0.150m |
| TYPE | VALUE |
|---|---|
| Type | Smart Automation |
| Brand | Mercator Ikuu |
| Range | Mercator Ikuu |
| Colour | White |
| Height (mm) | 74 |
| Depth (mm) | 44 |
| Length (mm) | 115 |
| Complete / Skin Only / Grid Plate Only | Complete |
| Neutral Required | Yes |
| App Requirements | Mobile device running iOS or Android. (Refer to ikuu.com.au for minimum specs) |
| Wireless Frequency | 2.4GHz |
| Protocol | IEEE 802.15.4 |
| Operating Load | Resistive: 2500W, Incandescent: 2500W, LED: 250W |
| Product Type | Switch |
| System Requirements | Mercator Ikuü zigbee hub |
| Terminal Sizes (mm²) | 6mm (3 x 2.5mm) |
| Technology | Zigbee |
| Mounting Centre Distance (mm) | 84 |
| Warranty | 3 Yr (in Home) |
| IP Rating | IP20 rated (Indoor only) |
| Material | Polycarbonate |
