Learn more by watching our Mercator Ikuu SSWM-WIFI | Smart Single Switch Mechanism | Wi-Fi video.

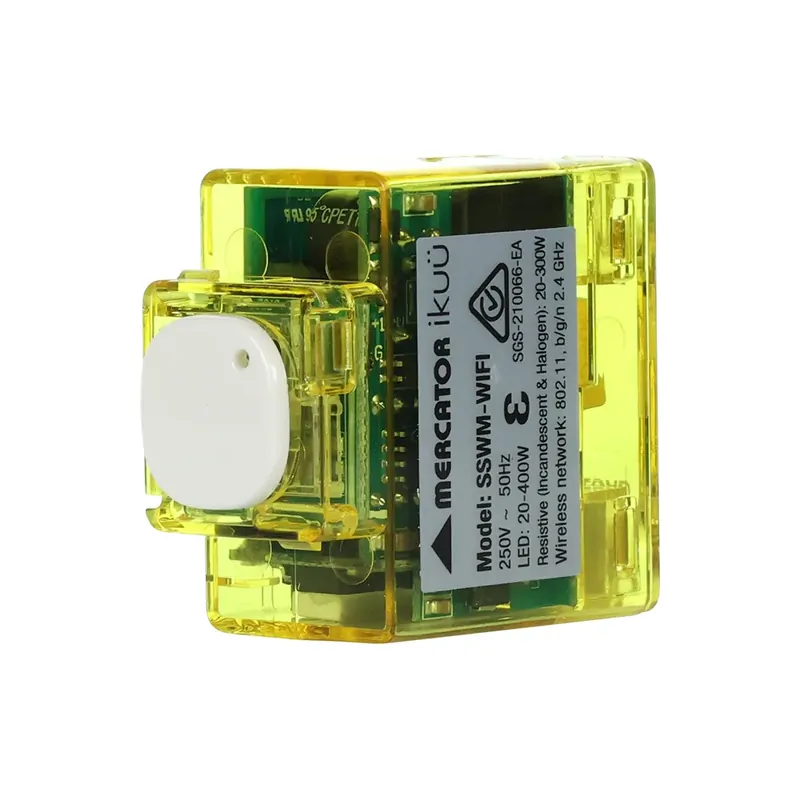

The Mercator Ikuü SSWM-WIFI Smart Single Switch Mechanism simplifies lighting control with its Wi-Fi connectivity, eliminating the need for a hub. Designed to connect directly to existing 2.4GHz networks, this no-neutral switch is easy to install and works seamlessly with most wiring setups.
Control your lights remotely through the Ikuü app or hands-free via Amazon Alexa and Google Assistant. Customizable timers and schedules enhance energy efficiency and provide tailored lighting control. Its compact, durable polycarbonate design ensures compatibility with most switch plates, combining functionality with sleek aesthetics.
Q: Does this switch require a hub to operate?
A: No, it connects directly to your 2.4GHz Wi-Fi network without the need for a hub.
Q: Is a neutral wire required for installation?
A: No, it is designed to work without a neutral wire for simpler installation.
Q: What loads are supported by this switch?
A: It supports 5W–400W for LEDs and 5W–300W for resistive loads.
Q: Can it be controlled via voice assistants?
A: Yes, it is compatible with Amazon Alexa and Google Assistant for voice control.
Q: Is this switch suitable for outdoor use?
A: No, it is rated IP20 and designed for indoor use only.
(SSWM-WIFI)
Warranty starts from Invoice Date
Domestic Use: 3 Year
Commercial Use: 3 Year
Warranty Method: This product is valid for 3 years warranty from the date of purchase. Mercator requires a copy of "certificate of compliance' from the installing electrician to complete the claim.
Specification | Details |
---|---|
Model | SSWM-WIFI |
Series | Isaac |
Connectivity | Wi-Fi |
Protocol | IEEE 802.11 b/g/n |
Wireless Frequency | 2.4 GHz |
Neutral Required | No |
Supply Voltage | 230 - 250V a.c. 50Hz |
Standby Wattage | <1W |
Operating Load | 5W – 300W (resistive), 5W - 400W (LED) |
Switching Poles | 1 |
IP Rating | IP20 (Indoor use only) |
Housing Material | Polycarbonate |
Dimensions | 24mm x 40mm x 47mm |
Weight | 35g |
App Compatibility | Works with Amazon Alexa and Google Assistant |
Features | - Wi-Fi (No hub required) - No neutral required - On/off control via app - Customizable timers & schedules - White LED to indicate switch status - Interchangeable with most popular brands |
Compliance Standards | AS/NZS 4268, AS/NZS 60669.1, AS/NZS 60669.2.1, CISPR 15, CISPR 32 |
Warranty | 3 years (in-home) |
These specifications and characteristics outline physical, mechanical, electrical details.
Brand | Mercator |
SKU | SSWM-WIFI |
Barcode # | 9312699204814 |
Package Weight | 0.051kg |
Package Width | 0.050m |
Package Height | 0.090m |
Package Length | 0.045m |
TYPE | VALUE |
---|---|
Type | Smart Automation |
Brand | Mercator Ikuu |
Range | Mercator Ikuu |
Colour | White |
Complete / Skin Only / Grid Plate Only | Mechanism Only |
Neutral Required | No |
App Requirements | Mobile device running iOS or Android. (Refer to ikuu.com.au for minimum specs) |
Wireless Frequency | 2.4GHz |
Protocol | IEEE 802.11 b/g/n |
Operating Load | 5W – 300W (resistive) 5-400W (LED) |
Product Type | Switch |
System Requirements | Existing 2.4GHz Wi-Fi network |
Terminal Sizes (mm²) | 3.5mm² (can fit up to 3 x 1.5mm² wires per terminal) |
Technology | Wi-Fi |
Warranty | 3 Yr (in Home) |
IP Rating | IP20 rated (Indoor only) |
Material | Polycarbonate |
