Learn more by watching our Mercator Ikuu SSWM10-WIFI | Smart Single Switch Mechanism | Wi-Fi video.

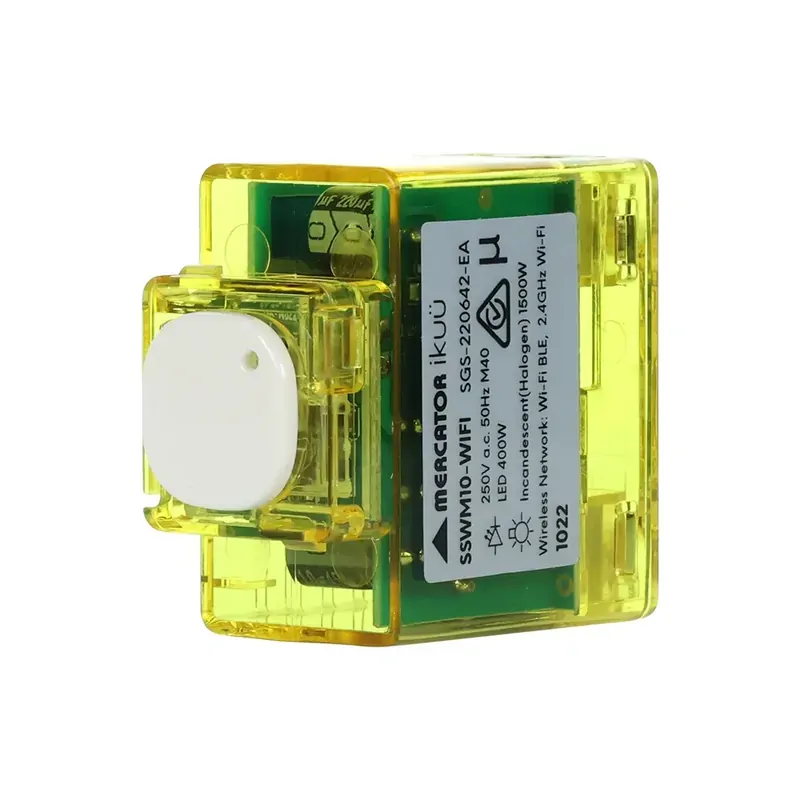

The Mercator Ikuü SSWM10-WIFI Smart Single Switch Mechanism brings effortless lighting control to your home or business. With Wi-Fi connectivity, this switch integrates directly into a 2.4GHz network, requiring no additional hub. Manage lighting through the Ikuü app, the on-device switch, or voice commands with Amazon Alexa and Google Assistant for hands-free convenience.
Built to handle diverse lighting needs, this switch supports up to 400W for LED loads and 1500W for incandescent bulbs. Its slim, modern design is compatible with most popular switch plates, and the included black touch pad accessory allows for aesthetic customization. With features like customizable schedules and timers, it combines functionality with energy efficiency.
Q: Does this switch require a hub to function?
A: No, it connects directly to your 2.4GHz Wi-Fi network without the need for a hub.
Q: Is a neutral wire required for installation?
A: Yes, a neutral wire is necessary for proper installation.
Q: What is the maximum load supported by this switch?
A: It supports up to 400W for LED lighting and 1500W for incandescent bulbs.
Q: Can this switch be controlled by voice assistants?
A: Yes, it is compatible with Amazon Alexa and Google Assistant for voice control.
Q: Is it suitable for outdoor use?
A: No, the switch is rated IP20 and designed for indoor use only.
(SSWM10-WIFI)
Warranty starts from Invoice Date
Domestic Use: 3 Year
Commercial Use: 3 Year
Warranty Method: This product is valid for 3 years warranty from the date of purchase. Mercator requires a copy of "certificate of compliance' from the installing electrician to complete the claim.
Specification | Details |
---|---|
Model | SSWM10-WIFI |
Series | Isaac |
Connectivity | Wi-Fi |
Protocol | IEEE 802.11 b/g/n |
Wireless Frequency | 2.4GHz |
Neutral Required | Yes |
Supply Voltage | 230 - 250 V a.c. 50Hz |
Standby Wattage | <1W |
Operating Load | LED: 400W (max) Incandescent: 1500W (max) |
Switching Poles | 1 |
IP Rating | IP20 (Indoor use only) |
Housing Material | Polycarbonate |
Dimensions | 24mm x 40mm x 47mm |
Weight | 35g |
Features | - Wi-Fi (No hub required) - Interchangeable with most popular brands - White LED to indicate switch status - Customizable timers & schedules via the app - Includes black touch pad accessory - Works with Amazon Alexa and Google Assistant |
Compliance Standards | AS/NZS 4268, AS/NZS 60669.1, AS/NZS 60669.2.1, AS/NZS 2772.2, CISPR 15, CISPR 32 |
Warranty | 3 years (in-home) |
These specifications and characteristics outline physical, mechanical, electrical details.
Brand | Mercator |
SKU | SSWM10-WIFI |
Barcode # | 9312699210822 |
Package Weight | 0.550kg |
Package Width | 0.050m |
Package Height | 0.090m |
Package Length | 0.045m |
TYPE | VALUE |
---|---|
Type | Smart Automation |
Brand | Mercator Ikuu |
Range | Mercator Ikuu |
Colour | White |
Complete / Skin Only / Grid Plate Only | Mechanism Only |
Neutral Required | Yes |
App Requirements | Mobile device running iOS or Android. (Refer to ikuu.com.au for minimum specs) |
Wireless Frequency | 2.4GHz |
Protocol | IEEE 802.11 b/g/n |
Operating Load | LED: 400W Incandescent: 1500W |
Product Type | Switch |
System Requirements | Existing 2.4GHz Wi-Fi network |
Terminal Sizes (mm²) | 3.5mm² (can fit up to 3 x 1.5mm² wires per terminal) |
Technology | Wi-Fi |
Warranty | 3 Yr (in Home) |
IP Rating | IP20 rated (Indoor only) |
Material | Polycarbonate |
