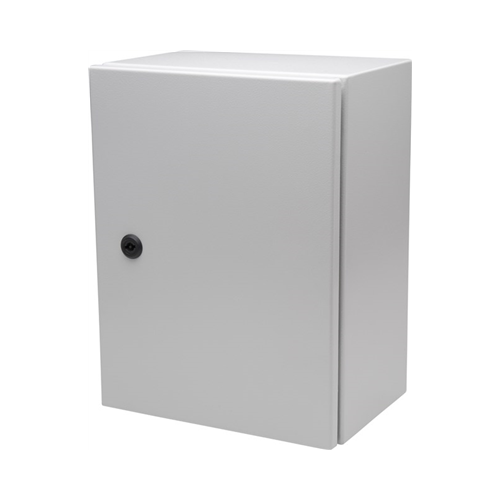

        NHP NLS0303021 | Enclosure NLINE M/Steel 300 x 300 x 210mm IP66

        Description:

        Transform your electrical infrastructure with the NLS0303021 Enclosure from NHP. Designed with precision and boasting an IP66 and IK10 rating, this Mild Steel enclosure ensures unparalleled protection for your valuable components. The light grey powder coating adds a touch of sophistication, making it an ideal choice for any indoor application. Explore the extraordinary benefits and find answers to your questions in our comprehensive FAQ section.

        Benefits:

        • Robust Mild Steel Construction: Crafted from robust Mild Steel, the NLS0303021 is engineered for durability and longevity, providing a secure housing for your electrical components.

        • IP66 and IK10 Protection: With an IP66 rating, this enclosure is impervious to dust and water ingress, making it ideal for demanding environments. The IK10 rating adds impact resistance, ensuring reliable performance in high-stress conditions.

        • Complete Installation Kit: The package includes a 2mm galvanized steel mounting plate, gland plate, and a quarter-turn double-bit 3mm insulated lock with key, offering all the essentials for a hassle-free installation.

        • Reversible Door: The reversible door design enhances installation flexibility, allowing the same enclosure to serve multiple applications effortlessly.

        • Sophisticated Aesthetics: The light grey powder coating not only enhances the enclosure's aesthetics but also provides an additional layer of protection against corrosion.

        FAQ:

        Q: Can I use this enclosure outdoors?
        A: The NLS0303021 is recommended for indoor use. For outdoor applications, consider additional protective measures.

        Q: What does the IP66 rating mean?
        A: The IP66 rating certifies that the enclosure is dust-tight and resistant to powerful water jets, ensuring robust protection against environmental elements.

        Q: How can I access the enclosure after installation?
        A: The enclosure features a quarter-turn double-bit 3mm insulated lock with a key for secure and convenient access.

        Elevate your electrical infrastructure with the NLS0303021 by NHP—an enclosure that offers exceptional durability, advanced features, and a sleek design. Trust in its quality to safeguard your critical components effectively.

        (NLS0303021)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Features

        Product Specifications

        Specifications Details
        Material, Body / Housing Powder Coated Mild Steel material
        Colour, Body / Housing Light Grey (RAL 7035) colour
        Finish, body / housing Ripple body/housing
        Height 300 mm
        Width 300 mm
        Depth 210 mm
        Weight 6.5 kg
        IP Rating IP66
        IK Rating IK10
        Material, Mounting Plate / Bracket Zinc Galvanized Steel
        Material Thickness, Mounting Plate / Bracket 2 mm
        Height, Mounting Plate 270 mm
        Width, Mounting Plate 250 mm
        Number of Gland Plates 1 qty
        Height, Gland Plate Opening 210 mm opening height
        Width, Gland Plate Opening 96 mm opening width
        Number of Locks 1 qty
        Lock Type DIN - 1/4 Turn type
        Diameter, Lock 3 mm
        Material, Lock Plastic material
        Certifications CE
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand NHP
        SKU NLS0303021
        Barcode # 9321807208279
        Shipping Weight 7.0000kg
        Shipping Width 0.320m
        Shipping Height 0.230m
        Shipping Length 0.320m
        Shipping Cubic 0.023552000m3
        TYPE VALUE
        Type Enclosures
        Brand NHP
        Colour Light Grey
