Description:

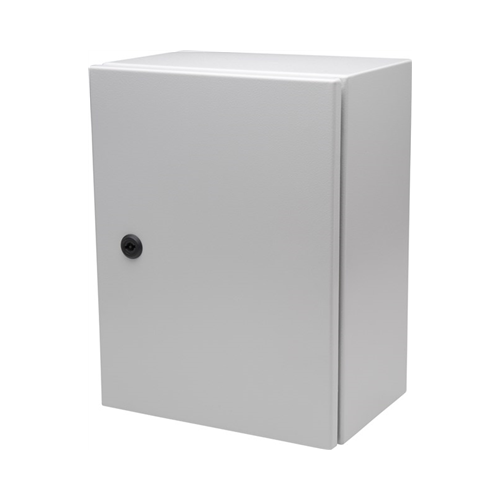

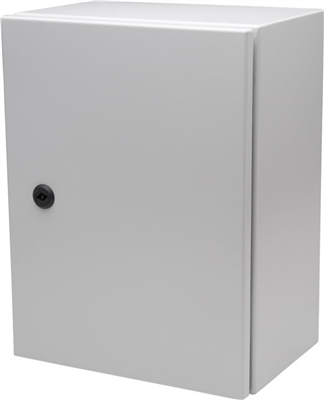

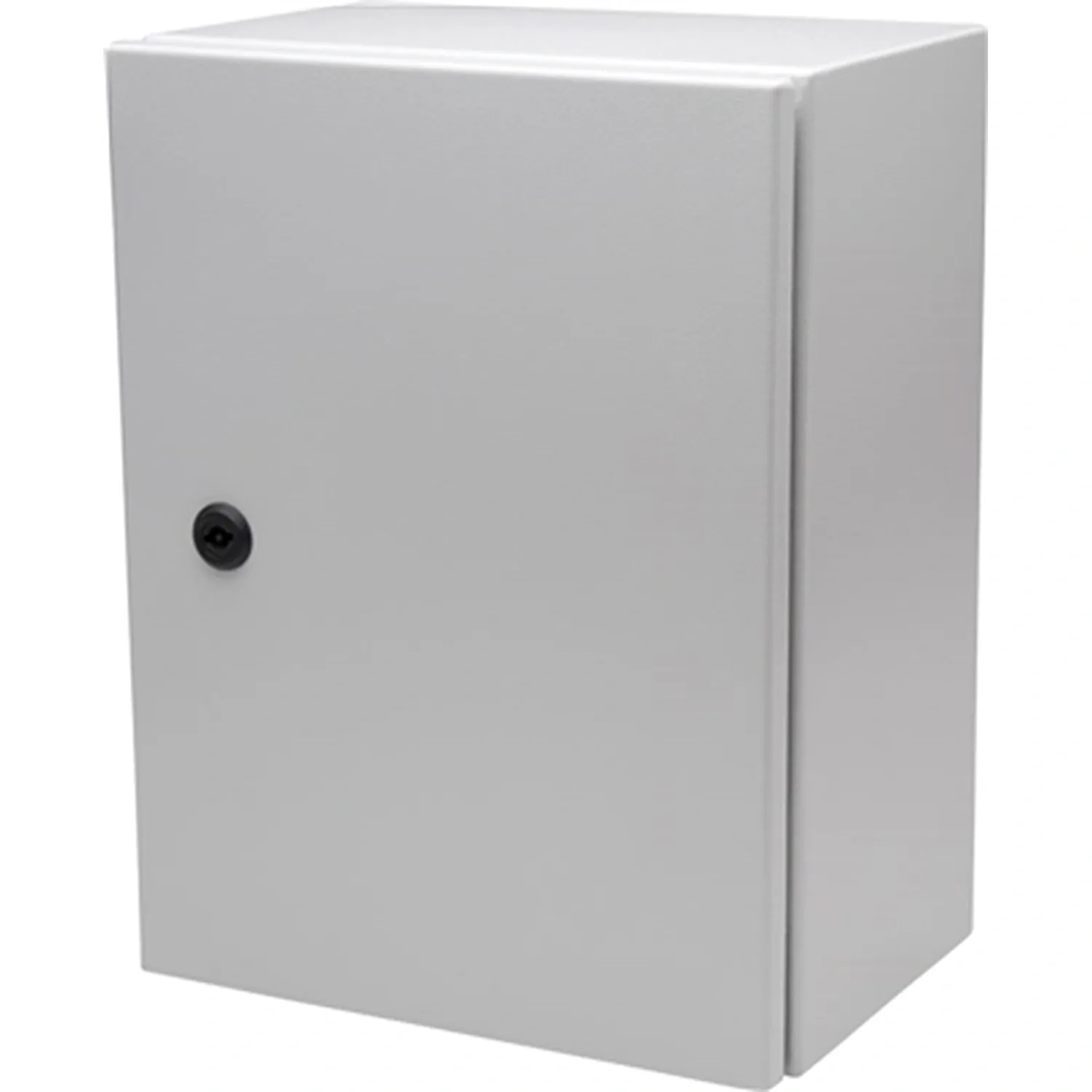

Elevate your electrical infrastructure with the NLS0403021 Enclosure by NHP, a testament to advanced engineering and robust design. This enclosure, boasting a light grey powder coating, not only enhances aesthetics but also delivers superior protection with its IP66 and IK10 ratings—setting a new standard for quality and durability. Delve into the outstanding benefits and get answers to your queries in our comprehensive FAQ section.
Benefits:
Premium Mild Steel Construction: Crafted from premium Mild Steel, the NLS0403021 offers unparalleled strength and resilience, ensuring the long-term protection of your critical electrical components.
IP66 and IK10 Ratings: With an IP66 rating, this enclosure provides complete protection against dust and powerful water jets, making it ideal for challenging environments. The IK10 rating ensures exceptional impact resistance, adding an extra layer of security.
All-Inclusive Installation Kit: The package includes a 2mm galvanized steel mounting plate, gland plate, and a quarter-turn double-bit 3mm insulated lock with a key—everything you need for a seamless and secure installation.
Versatile Reversible Door: The reversible door design enhances installation flexibility, allowing the same enclosure to serve a multitude of applications effortlessly.
Certified Quality: Certified with CE, the NLS0403021 adheres to stringent quality standards, giving you confidence in its performance and reliability.
FAQ:
Q: Can I install this enclosure outdoors?
A: The NLS0403021 is recommended for indoor use. For outdoor applications, consider additional protective measures.
Q: What does the IP66 rating signify?
A: The IP66 rating certifies the enclosure's dust-tight design and resistance to powerful water jets, ensuring robust protection against environmental elements.
Q: How do I access the enclosure after installation?
A: The enclosure features a quarter-turn double-bit 3mm insulated lock with a key for secure and convenient access.
Immerse yourself in the world of superior protection and versatility with the NLS0403021 by NHP. Trust in its quality to safeguard your critical components effectively and elevate your electrical infrastructure to new heights.
(NLS0403021)
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
Specifications | Details |
---|---|
Material, Body / Housing | Powder Coated Mild Steel material |
Colour, Body / Housing | Light Grey (RAL 7035) colour |
Finish, body / housing | Ripple body/housing |
Height | 400 mm |
Width | 300 mm |
Depth | 210 mm |
Weight | 7.5 kg |
IP Rating | IP66 |
IK Rating | IK10 |
Material, Mounting Plate / Bracket | Zinc Galvanized Steel |
Material Thickness, Mounting Plate / Bracket | 2 mm |
Height, Mounting Plate | 370 mm |
Width, Mounting Plate | 250 mm |
Number of Gland Plates | 1 qty |
Height, Gland Plate Opening | 210 mm opening height |
Width, Gland Plate Opening | 96 mm opening width |
Number of Locks | 1 qty |
Lock Type | DIN - 1/4 Turn type |
Diameter, Lock | 3 mm |
Material, Lock | Plastic material |
Certifications | CE |
These specifications and characteristics outline physical, mechanical, electrical details.
Brand | NHP |
SKU | NLS0403021 |
Barcode # | 8713574205222 |
Shipping Weight | 8.0000kg |
Shipping Width | 0.320m |
Shipping Height | 0.420m |
Shipping Length | 0.230m |
Shipping Cubic | 0.030912000m3 |
TYPE | VALUE |
---|---|
Type | Enclosures |
Brand | NHP |
Colour | Light Grey |
