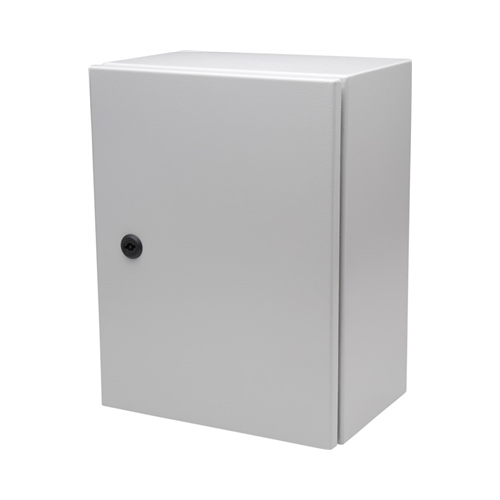

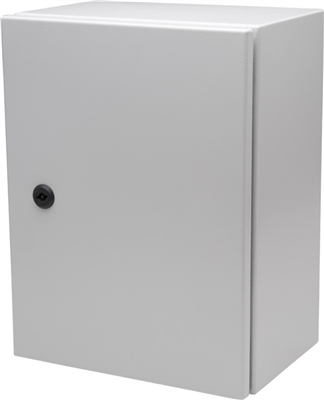

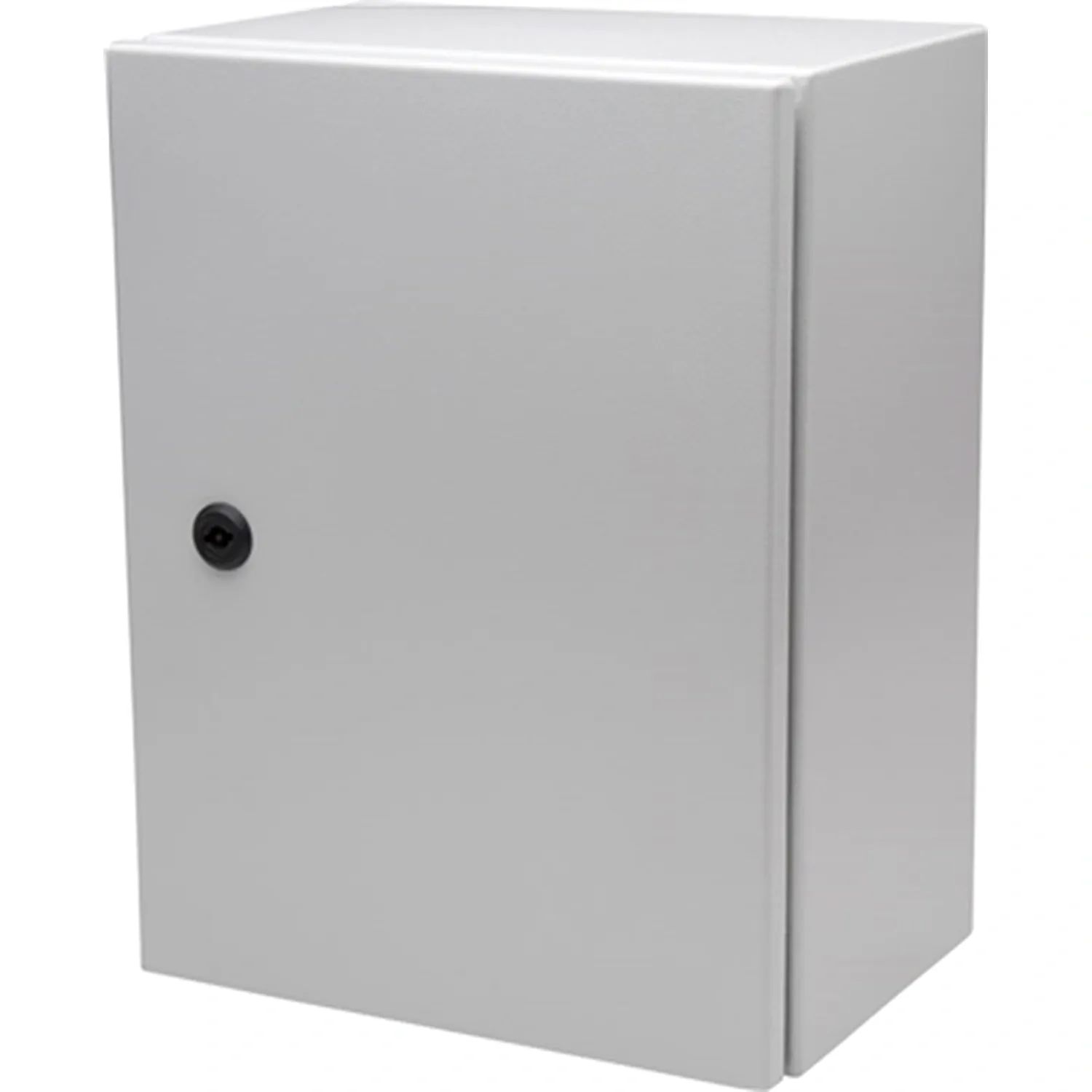

        NHP NLS0404021 | Enclosure NLINE M/Steel 400 x 400 x 210mm IP66

        Description:

        Discover the pinnacle of protection with the NLS0404021 Enclosure by NHP. Boasting a sophisticated light grey powder coating and fortified with IP66 and IK10 ratings, this enclosure stands as a beacon of quality, offering an unrivalled shield for your vital electrical components. Explore the compelling benefits and find answers to your queries in our comprehensive FAQ section.

        Benefits:

        • Robust Mild Steel Construction: Crafted from premium Mild Steel, the NLS0404021 ensures durability and longevity, providing a fortress for your critical electrical infrastructure.

        • IP66 and IK10 Ratings: With an IP66 rating, this enclosure is impervious to dust and can withstand powerful water jets, making it ideal for both industrial and domestic applications. The IK10 rating guarantees exceptional resistance to impact, ensuring your components remain secure in challenging environments.

        • All-Inclusive Installation Kit: The package includes a 2mm galvanized steel mounting plate, gland plate, and a quarter-turn double-bit 3mm insulated lock with a key—everything you need for a hassle-free and secure installation.

        • Versatile Reversible Door: The reversible door design enhances installation flexibility, allowing the same enclosure to cater to a variety of applications effortlessly.

        • Certified Quality: Certified with CE, the NLS0404021 adheres to the highest quality standards, offering you peace of mind in its performance and reliability.

        FAQ:

        Q: Can I install this enclosure outdoors?
        A: The NLS0404021 is recommended for indoor use. For outdoor applications, additional protective measures may be necessary.

        Q: What does the IP66 rating signify?
        A: The IP66 rating certifies the enclosure's dust-tight design and its ability to withstand powerful water jets, ensuring robust protection in diverse environments.

        Q: How do I access the enclosure after installation?
        A: The enclosure features a quarter-turn double-bit 3mm insulated lock with a key for secure and convenient access.

        Elevate your space with the NLS0404021 by NHP, where cutting-edge design meets unparalleled protection. Trust in its quality to safeguard your essential components and fortify your electrical infrastructure with confidence.

        (NLS0404021)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Features

        Product Specifications

        Specifications Details
        Material, Body / Housing Powder Coated Mild Steel material
        Colour, Body / Housing Light Grey (RAL 7035) colour
        Finish, body / housing Ripple body/housing
        Height 400 mm
        Width 400 mm
        Depth 210 mm
        Weight 9.5 kg
        IP Rating IP66
        IK Rating IK10
        Material, Mounting Plate / Bracket Zinc Galvanized Steel
        Material Thickness, Mounting Plate / Bracket 2 mm
        Height, Mounting Plate 370 mm
        Width, Mounting Plate 350 mm
        Number of Gland Plates 1 qty
        Height, Gland Plate Opening 310 mm opening height
        Width, Gland Plate Opening 96 mm opening width
        Number of Locks 1 qty
        Lock Type DIN - 1/4 Turn type
        Diameter, Lock 3 mm
        Material, Lock Plastic material
        Certifications CE
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand NHP
        SKU NLS0404021
        Barcode # 9321807208248
        Shipping Weight 10.0000kg
        Shipping Width 0.420m
        Shipping Height 0.420m
        Shipping Length 0.230m
        Shipping Cubic 0.040572000m3
        TYPE VALUE
        Type Enclosures
        Brand NHP
        Colour Light Grey
