Learn more by watching our NLS 30820 | 25 amp 4.5KA Single Pole RCBO * NEW A TYPE * video.

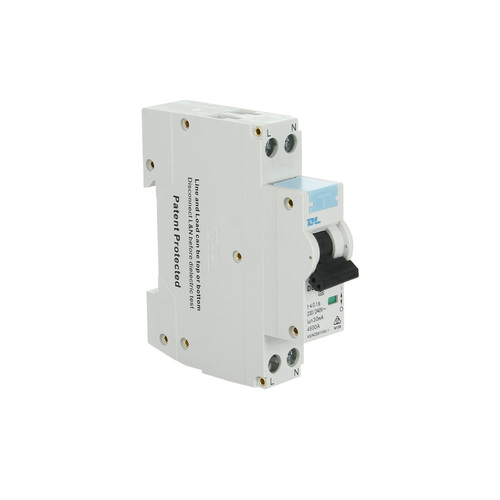

The NLS 30820 | 25 amp 4.5KA Single Pole RCBO is reliable, efficient and designed with the get-the-job-done electricians in mind. This latest 'A Type' model brings new convenience and safety to your work.
An RCBO combines the functionality of a Miniature Circuit Breaker (MCB) and a Residual Current Device (RCD) into one compact unit, conserving valuable space within your enclosure and streamlining the installation process. The risk of incorrect installations is significantly reduced with the option to load from either the top or the bottom.
Designed to handle high-stress electrical situations, this Single Pole RCBO boasts a rated breaking capacity of 4.5kA, which can interrupt a fault current of up to 4500 amperes. Its 30mA earth-leakage capacity provides an essential safety feature, immediately tripping the circuit if it detects a potentially dangerous leak to earth.
This non-polarised RCBO has a remarkable electro-mechanical endurance of 4000 cycles, ensuring longevity even in high-use situations. The device is easy to mount on a Din Rail, making it a versatile addition to any electrician's toolkit.
The NLS 30820 | 25 amp 4.5KA Single Pole RCBO adheres to the strictest safety and performance standards. It's ESV compliant and approved as per Australian Standards AS/NZS 61009:1, assuring its quality and reliability.
We also back this product with a 3-Year Replacement Warranty for added peace of mind.
IMPORTANT: This product is Type A and compliant with the new legislation.
(30820)
Warranty starts from Invoice Date
Domestic Use: 3 Year
Commercial Use: 3 Year
Warranty Method: Return to Sparky Direct
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | NATIONAL LIGHT SOURCES |
| SKU | 30820 |
| Barcode # | 9336700016494 |
| Shipping Weight | 0.1110kg |
| Shipping Width | 0.075m |
| Shipping Height | 0.020m |
| Shipping Length | 0.085m |
| Shipping Cubic | 0.000128000m3 |
| TYPE | VALUE |
|---|---|
| Type | Circuit Protection |
| Brand | National Light Sources |
| Rated Current (A) | 25 |
| Height (mm) | 81 |
| Width (mm) | 18 |
| Depth (mm) | 75 |
| Standards | AS/NZS 61009:1 |
| Mounting | Din Rail |
| Voltage (V) | 240V |
| Number of Poles | 1P+N |
| IP Rating | IP20 ( IP40 Enclosed ) |
| Breaking Capacity | 4.5kA |
| Box increments (This item is sold individually) | 12 |
| Earth Leakage Sensitivity | 30mA |
| Earth Leakage Protection Class | Type A |
| Curve | C |
