        Learn more by watching our NLS 30824 | 40Amp 6kA | 4 Pole RCBO | Type A video.

        Description

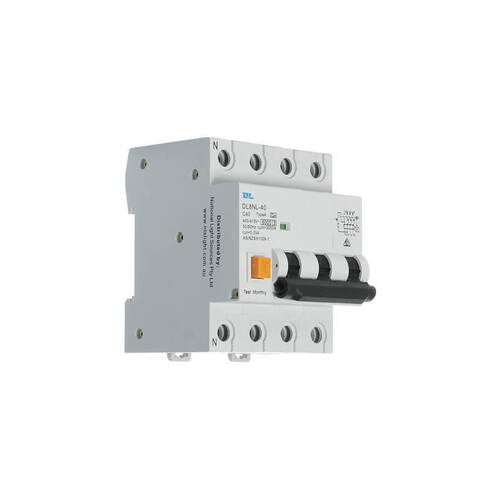

        NLS 30824 | 40Amp 6kA | 4 Pole RCBO | Type A

        The NLS 30822 is a 40 amp 6kA 4 Pole RCBO (Safety Switch) that offers both circuit protection and residual current breaker with overcurrent protection, meeting the latest wiring regulations to ensure electrical safety and minimize the risk of electric shock.

        Key Features:

        • Type A: The device provides comprehensive circuit protection as a Residual Current Breaker with Overcurrent Protection.
        • Lockable Toggle
        • Terminals suitable for up to 25mm Cable
        • Rated Current: With a capacity of 40 amps, it can handle moderate electrical loads.
        • Compact Size: The RCBO has dimensions of 84mm height, 71mm width, and 80mm depth, allowing easy installation and integration into electrical systems.
        • Compliance: It meets the standards of AS/NZ 61009-1, ensuring its reliability and adherence to industry regulations.
        • Mounting: Designed for DIN rail mounting, ensuring compatibility with common electrical installations.
        • Voltage: Compatible with 240V and 415V power systems, making it versatile for various applications.
        • Number of Poles: Features 3P+N configuration, protecting multiple phases and neutral.
        • IP Rating: It has an IP20 rating, suitable for indoor use, and an IP40 rating when enclosed.
        • Breaking Capacity: Capable of handling a breaking capacity of 6kA, ensuring safe operation and protection against overcurrent faults.
        • Earth Leakage Sensitivity: Offers a sensitivity of 30mA for detecting earth leakage faults promptly.
        • Curve: Operates on Curve C, responding appropriately to different fault conditions.
        • Earth Leakage Protection Class: Type A, specifically designed to detect and protect against sinusoidal alternating residual currents.

        (30824)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand NATIONAL LIGHT SOURCES
        SKU 30824
        Barcode # 9336700016548
        Package Weight 0.426kg
        Package Width 0.075m
        Package Height 0.075m
        Package Length 0.085m
        TYPE VALUE
        Type Circuit Protection
        Brand National Light Sources
        Rated Current (A) 40
        Height (mm) 84
        Width (mm) 71
        Depth (mm) 80
        Standards AS/NZ 61009-1
        Mounting Din Rail
        Voltage (V) 240/415
        Number of Poles 3P+N
        IP Rating IP20 ( IP40 Enclosed )
        Breaking Capacity 6kA
        Box increments (This item is sold individually) 1
        Earth Leakage Sensitivity 30mA
        Earth Leakage Protection Class Type A
        Curve C
