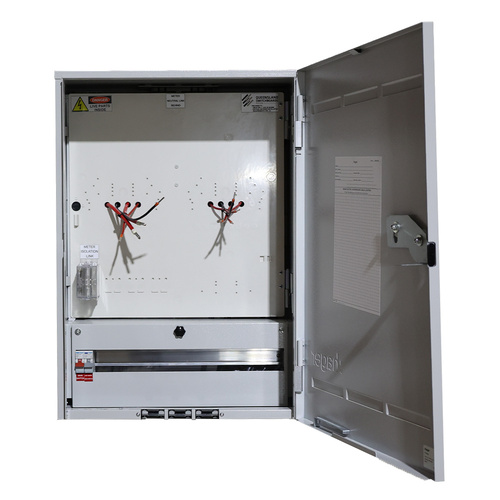

        Queensland Switchboards QSB-MB-1P-NR | Single Phase + Night Rate Pre-Wired Meter Box | 63A 1P MBC + 16A 1P+Ns RCBO

        The Queensland Switchboards QSB-MB-1P-NR is a single-phase pre-wired meter box with an additional night rate circuit, designed to simplify installations. It includes a pre-installed 63A 1P MCB and a 16A 1P+Ns RCBO, making it easy to set up controlled loads such as hot water systems. Fully pre-assembled, it allows contractors to quickly connect the main supply, neutral, and earth before wiring final subcircuits, reducing installation time.

        All meter boards in this range are labelled to current QEMM standards, ensuring compliance and accuracy. The main switch is pre-installed. This model comes housed in a Hager enclosure for durability and reliability.

        Key Features:

        • Pre-wired for quick installation with a fully assembled setup for easy connection of supply and subcircuits.
        • 63A 1P MCB + 16A 1P+Ns RCBO included, enabling a night rate circuit for controlled loads.
        • QEMM-compliant labelling ensures proper identification and meets industry standards.
        • Hager VYMBQ enclosure provides sturdy and reliable housing for long-term performance.
        • Enclosure dimensions are H688mm x W488mm x L278mm.

        QSB-MB-1P-NR FAQ

        Q: What is included in this pre-wired meter box?
        A: It includes a 63A 1P MCB, a 16A 1P+Ns RCBO for night rate circuits, and a pre-installed main switch.

        Q: Is this meter box compliant with QEMM standards?
        A: Yes, all labels and components meet current QEMM requirements.

        (QSB-MB-1P-NR)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Queensland Switchboards
        SKU QSB-MB-1P-NR
        Package Weight 22.700kg
        Package Width 0.515m
        Package Height 0.715m
        Package Length 0.310m
        TYPE VALUE
        Type Switchboard
        Height (mm) 688
        Width (mm) 488
        Length (mm) 278
        Single or 3 Phase Single Phase
        Amperage 63A
        Enclosure Hager
        Night Rate Yes
