        Robus RSBX12CCT3-01 | Speedbeam Plus Batten LED 1230MM 16/22/28/32W CCT
        $60.50 $55.00 ex. GST
        Description

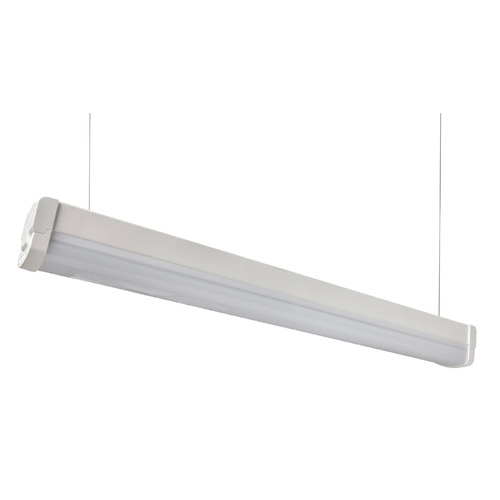

        Robus RSBX12CCT3-01 | Speedbeam Plus Batten LED 1230MM 16/22/28/32W CCT

        The Robus RSBX12CCT3-01 Speedbeam Plus Batten LED is a versatile lighting solution for residential and commercial spaces. With selectable wattage (16/22/28/32W) and colour temperature options (3000K, 4000K, 6500K), this 1230mm batten can be tailored to suit specific lighting needs in areas like garages, workshops, warehouses, and retail outlets.

        Its design features screw-less end caps and two-part construction for fast installation, along with high-impact IK06 protection for durability. Quick connectors allow easy integration with emergency packs and sensors, while its wide beam angle ensures even light distribution across large spaces.

        RSBX12CCT3-01 Features:

        • Adjustable Wattage: Select between 16W, 22W, 28W, and 32W to provide the required light output for different spaces.
        • Selectable Colour Temperature: Easily switch between 3000K (warm), 4000K (neutral), and 6500K (cool) to suit your lighting needs.
        • Quick Installation: Screw-less end caps and two-part construction for fast and easy installation, saving time on site.
        • Quick Connectors: Compatible with plug-in emergency packs (RHA2WEMSTA-PSU) and microwave sensors (RLMW) for added functionality.
        • Wide Beam Angle: 120° beam angle ensures broad and even light distribution, ideal for large spaces.
        • BESA Box Mounting: Base designed for BESA box mounting, providing installation flexibility.
        • Energy Efficient: Efficacy up to 129 lm/W, delivering more light with less power consumption.

        RSBX12CCT3-01 FAQ:

        Q: What wattage options are available?
        A: You can select from 16W, 22W, 28W, or 32W.

        Q: Does the batten support emergency lighting?
        A: Yes, it is compatible with plug-in emergency packs.

        Q: What is the colour temperature range?
        A: You can choose between 3000K, 4000K, and 6500K depending on the desired lighting ambiance.

        Q: Is this batten suitable for outdoor use?
        A: While robust, it is mainly designed for indoor use in protected areas such as garages, workshops, and warehouses.

        (RSBX12CCT3-01)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 5 Year
        Commercial Use: 5 Year
        Warranty Method: Clipsal on site warranty

        Features
        Specification Details
        Comparable to 1x/2x36W T8
        Operating Voltage (V) 220-240
        Total Power (W) 15.1/21.7/27.4/32.8
        Total Light Output (lm) 2090/2970/3650/4250
        Lumens Per W (LmW) 92-123
        Efficacy (lm/cctW) 138/137/133/129
        Lux at 1m (lux) 560/800/980/1140
        CCT (K) 3000/4000/6500
        CRI 80
        IP Rating IP20
        IK Rating IK06
        Operation Temperature (°C) -20~+40
        Inrush Current 11A/120us
        Lifetime 50,000 Hours
        Dimensions (LxWxH) 1230x66x66 mm
        Weight 1.52 kg
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Robus
        SKU RSBX12CCT3-01
        Barcode # 5391370089531
        Shipping Weight 1.6000kg
        Shipping Width 0.070m
        Shipping Height 0.070m
        Shipping Length 1.230m
        Shipping Cubic 0.006027000m3
        TYPE VALUE
        Type Batten Light
        Brand Robus
        Colour White
        Length (mm) 1230
        Lumens (Lm) 2090/2970/3650/4250
        Beam Angle 120°
        CRI 80
        CCT (K) 3000/4000/6500
        Total Wattage 15.1/21.7/27.4/32.8W
