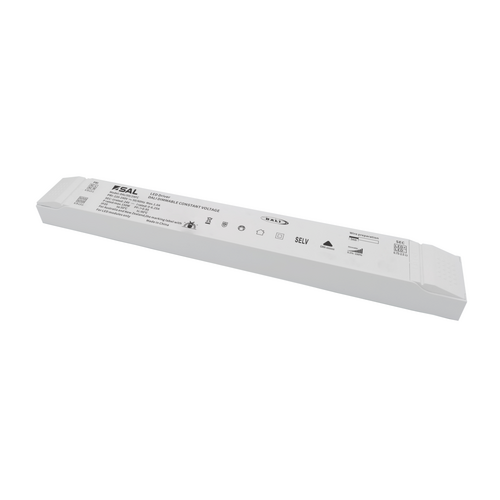

        SAL DIM150/24V/FC | Dimmable LED Driver Constant Voltage 150w 24VDC

        Reliable constant voltage,  trailing edge dimmable driver 150 watt

        The SAL Pluto LED Constant Voltage Driver is non-weatherproof.

        Installing low-voltage garden lighting/strip lighting or simply driving low-wattage devices,

        The DIM150/24V/FC

        • 150 watt / 24V
        • Trailing edge dimming control
        • Overload and short-circuit protection
        • SELV and EMC compliant
        • Fixed terminal termination
        • FlickerCONTROLLED technology
        • Electrical class II, Do Not Cover.
        • Dimensions: (LWH) 300 x 43 x 31mm
        • Power Factor .95
        • Dimmable - YES
        • Dimmer Type - Trailing or Leading Edge

        (DIM150-24V-FC)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 3 Year
        Commercial Use: 2 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand SAL
        SKU DIM150-24V-FC
        Barcode # 9328623131279
        Shipping Weight 0.2130kg
        Shipping Width 0.043m
        Shipping Height 0.031m
        Shipping Length 0.300m
        Shipping Cubic 0.000399900m3
        TYPE VALUE
        Type Lighting
        Brand SAL
        Height (mm) 31
        Width (mm) 43
        Length (mm) 300
        Standards SELV and EMC compliant
        Protection IP20
        Wattage (W) 150
        Dimmable Yes
        Driver Type 24V 150Watt Dimmable Constant Voltage
        Input Voltage 240Vac
        Output Voltage 24V/DC
        Power Factor 0.9
        Termination Hard Wired
        Circuit Protection Overload and Short Circuit
