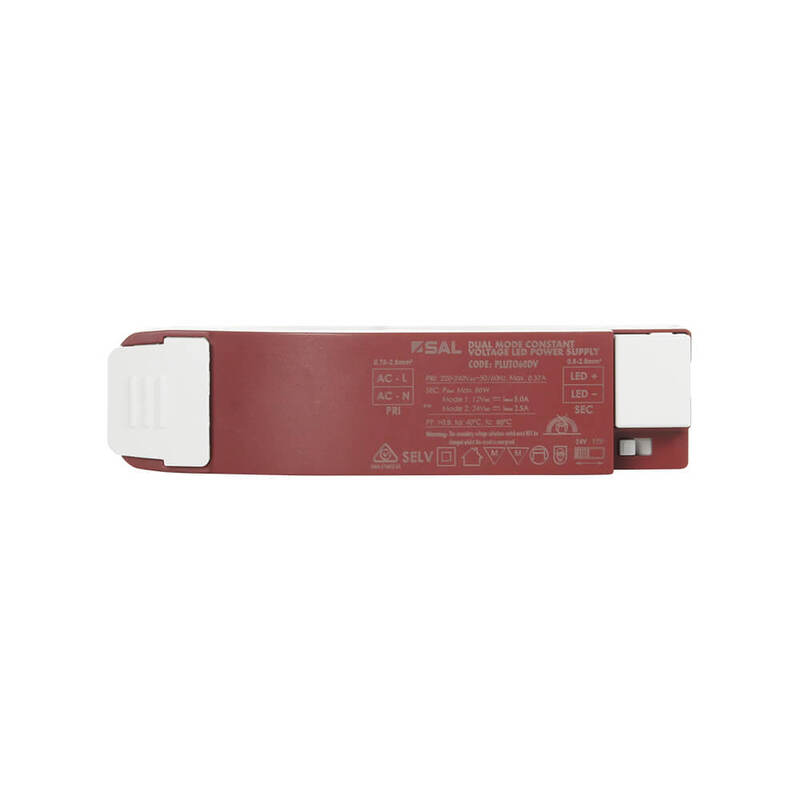

Name: SAL PLUTO60DV | Pluto LED 60W Power Supply | 12/24V
Brand: SAL
SKU: PLUTO60DV
Price: 32.99 AUD
Availability: InStock

SAL PLUTO60DV | Pluto LED 60W Power Supply | 12/24V

Description:

The SAL PLUTO60DV is a robust, reliable LED power supply designed for low-wattage retrofit and maintenance lighting applications. With a 60W capacity, this power supply offers selectable 12V DC or 24V DC outputs, making it versatile for various lighting needs. It is SELV and EMC compliant, ensuring safe operation without electromagnetic interference.

The unit features overload and short circuit protection for enhanced safety and a hard-wired termination design for secure connections. This non-dimmable power supply operates safely even with no load and is rated as Electrical Class II, indicating it does not require a protective earth connection.

Features:

Dual Voltage Output: Selectable 12V or 24V DC secondary outputs for flexible application.

Safety Compliance: Meets SELV and EMC standards for safe and interference-free operation.

Overload Protection: Includes overload and short circuit protection to safeguard against electrical faults.

Compact Design: Hard-wired termination design with captive terminal screws for easy and secure installation.

Non-Dimmable: Designed for consistent power delivery without dimming capabilities.

Electrical Class II: Ensures safe operation without needing a protective earth connection.

FAQ:

Q: What applications is the SAL PLUTO60DV suitable for?
A: It is ideal for low-wattage retrofit and maintenance lighting requirements, providing reliable power for various LED lighting systems.

Q: Can this power supply be used with dimmable lights?
A: No, the SAL PLUTO60DV is non-dimmable and is designed for use with non-dimmable lighting systems.

Q: What safety features does this power supply include?
A: It includes overload and short circuit protection to prevent damage to the power supply and connected lighting systems.

Q: What is the significance of the SELV and EMC compliance?
A: SELV (Safety Extra Low Voltage) ensures that the power supply operates at a safe voltage level, while EMC (Electromagnetic Compatibility) compliance ensures that it does not interfere with other electronic devices.

Specification

Detail

Input Voltage

240 V/AC

Frequency

50 Hz

Output Voltage

12-24 V/DC

Power

60 W

Power Factor

0.9

Dimmable

IP Rating

IP20

Dimensions

160(L) x 40(W) x 60(H) mm

TYPE

VALUE

Type

Lighting

Brand

SAL

Standards

SELV and EMC compliant

Protection

IP20

Dimmable

Output Voltage

12-24V/DC

Termination

Hard Wired

Circuit Protection

Overload and Short Circuit

Power

60W

Input Voltage (V/AC)

240

Brand	SAL
SKU	PLUTO60DV
Barcode #	9328623132610
Shipping Weight	0.2450kg
Shipping Width	0.050m
Shipping Height	0.040m
Shipping Length	0.200m
Shipping Cubic	0.000400000m3
