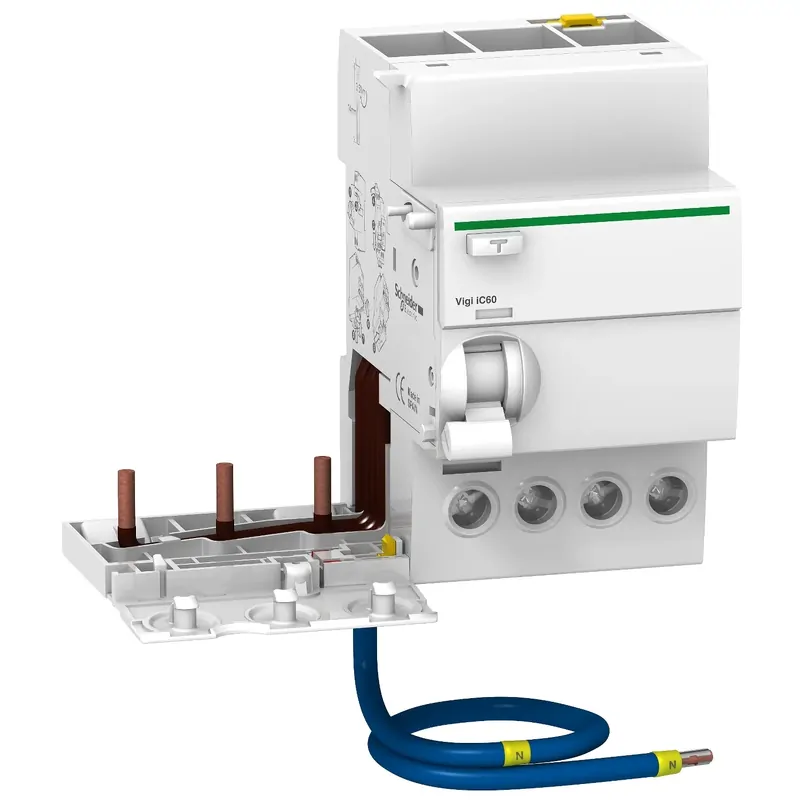

        Schneider Electric A9V02763 | Earth Leakage Add-On Block | Acti9 3P+N 63A 30mA A Type

        The Schneider Electric A9V02763 Acti9 Vigi iC60 is a modular earth leakage add-on block designed to enhance electrical safety. With 30mA sensitivity, it protects against electric shocks, indirect faults, and fire hazards. Its voltage-independent tripping ensures reliable operation regardless of external power conditions.

        This 3P+N unit operates at 400-415V AC and must be paired with an Acti9 iC60 circuit breaker for full protection. A VisiTrip indicator helps quickly identify fault trips, while the DIN rail mountable design ensures easy installation. Featuring tunnel-type terminals for secure wiring and compliant with IEC 61009-1 and IEC 61009-2-1 standards, it delivers both safety and convenience. The unit is IP20 rated (IP40 when enclosed) and has a compact size of 108mm x 91mm x 73.5mm.

        Schneider A9V02763 Features

        • 63A 3P+N earth leakage protection – Shields against electrical shocks and fire risks.
        • 30mA sensitivity, Type A – Detects both AC and pulsating DC residual currents.
        • Voltage-independent technology – Works reliably without requiring an external power source.
        • VisiTrip indicator – Displays fault tripping for quick troubleshooting.
        • DIN rail mountable – Clips onto DIN rails for effortless setup.
        • Compliant with IEC standards – Meets IEC 61009-1 and IEC 61009-2-1 for safety and performance.

        A9V02763 FAQ

        Q: Is this add-on block compatible with all circuit breakers?
        A: No, it is specifically designed for use with Schneider Acti9 iC60 circuit breakers.

        Q: What does the VisiTrip indicator do?
        A: It provides a visual signal when a fault trip occurs, making diagnostics easier.

        Q: What is the mounting method?
        A: It is DIN rail mountable with a clip-on design for quick installation.

        (A9V02763)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 18 Months
        Commercial Use: 18 Months
        Warranty Method: Clipsal in home warranty

        Features
        Specification Details
        Range Acti9
        Product Name Acti9 Vigi iC60
        Product Type Add-on residual current device
        Poles Description 3P + N
        Neutral Position Left
        Rated Current [In] 63 A
        Earth Leakage Sensitivity 30 mA
        Earth Leakage Protection Time Delay Instantaneous
        Earth Leakage Protection Type Type A
        Network Type AC
        Network Frequency 50/60 Hz
        Rated Operational Voltage [Ue] 400 - 415 V AC 50/60 Hz
        Standards EN/IEC 61009-1, EN/IEC 61009-2-1
        Residual Current Tripping Technology Voltage Independent
        Rated Insulation Voltage [Ui] 500 V AC
        Rated Impulse Withstand Voltage [Uimp] 6 kV
        Local Signalling Trip Indicator
        Mounting Mode Clip-on
        Mounting Support DIN Rail
        Height 91 mm
        Width 108 mm
        Depth 73.5 mm
        Weight 0.245 kg
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU A9V02763
        Barcode # 3606480551826
        Package Weight 0.296kg
        Package Width 0.145m
        Package Height 0.085m
        Package Length 0.115m
        TYPE VALUE
        Type Circuit Protection
        Brand Schneider Electric
        Rated Current (A) 63
        Mounting Din Rail
