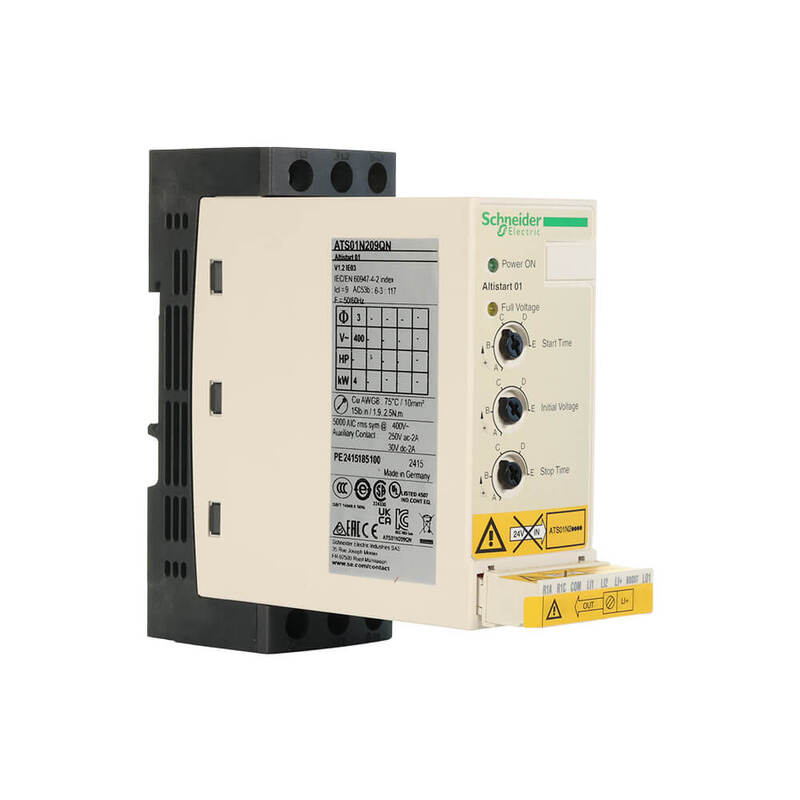

Learn more by watching our Schneider Electric ATS01N209QN | Altistart Soft Starter 9A 380-415V 4KW video.
Description:
The Schneider Electric ATS01N209QN Altistart Soft Starter is a compact and reliable solution for electricians. This soft starter is designed for DIN rail mounting and can feed 3-phase asynchronous motors with a rating of up to 9A. It is an ideal choice for a wide range of applications, including simple machines such as conveyors, pumps, fans, compressors, automatic doors, gates, small cranes, and belt-driven machinery.
The ATS01N209QN is suitable for motors with a rated power of up to 4kW or 2hp for 3-phase (200V to 240V AC). This soft starter provides a smooth start, reducing mechanical stresses and extending the service life of the machinery. Additionally, its progressive start feature limits the starting and stopping noise of motors, contributing to a more comfortable work environment.
Measuring only 45mm in width, the ATS01N209QN is one of the smallest soft starters on the market, allowing for easy installation in almost any space. Its integrated bypass reduces noise and heat dissipation, further enhancing operational efficiency.
The device is simple to set up, requiring only two settings which makes the setup process easier and quicker. This ease of use makes it an accessible and practical solution for various settings.
Features:
FAQ:
Q: What type of motors is this soft starter suitable for?
A: It's designed for 3-phase asynchronous motors up to 9A.
Q: How easy is it to install?
A: Its compact size and straightforward setup make it easy to install.
Q: Does it reduce operational noise?
A: Yes, it features an integrated bypass that reduces motor noise and heat.
(ATS01N209QN)
Warranty starts from Invoice Date
Domestic Use: 18 Months
Commercial Use: 18 Months
Warranty Method: Return to Sparky Direct
| Specifications | Details |
|---|---|
| Range | Altistart 01 |
| Product or component type | Soft Starter |
| Device application | Asynchronous motors |
| Product Specific Application | Simple machine |
| Network Number of Phases | 3 Phase |
| [Us] Rated Supply Voltage | 380...415 V - 10...10 % |
| Motor Power Kw | 4 kW, 3 phases at 380...415 V |
| Icl Starter Rating | 9 A |
| Utilisation category | AC-53B conforming to EN/IEC 60947-4-2 |
| Current Consumption | 45 A at nominal load |
| Type of Start | Start with voltage ramp |
| Power Dissipation In W | 94 W in transient state 4 W at full load and at end of starting |
| Complementary | |
| Assembly Style | With heat sink |
| Function Available | Integrated bypass |
| Supply Voltage Limits | 342…456 V |
| Supply Frequency | 50...60 Hz - 5...5 % |
| Network Frequency | 47.5...63 Hz |
| Output Voltage | <= power supply voltage |
| [Uc] Control Circuit Voltage | Built into the starter |
| Starting Time | 1 s / 100 5 s / 20 10 s / 10 Adjustable from 1 to 10 s |
| Deceleration Time Symb | Adjustable from 1 to 10 s |
| Starting Torque | 30...80 % of starting torque of motor connected directly on the line supply |
| Discrete Input Type | Logic (LI1, LI2, BOOST) stop, run and boost on start-up functions <= 8 mA 27 kOhm |
| Discrete Input Voltage | 24...40 V |
| Discrete Input Logic | Positive LI1, LI2, BOOST at State 0: < 5 V and 13 V, >= 0.5 mA |
| Discrete Output Current | 2 A DC-13 3 A AC-15 |
| Discrete Output Type | Open collector logic LO1 end of starting signal Relay outputs R1A, R1C NO |
| Discrete Output Voltage | 24 V (voltage limits: 6...30 V) open collector logic |
| Minimum Switching Current | 10 mA at 6 V DC for relay outputs |
| Maximum Switching Current | Relay outputs: 2 A at 250 V AC cos phi = 0.5 and L/R = 20 ms inductive load Relay outputs: 2 A at 30 V DC cos phi = 0.5 and L/R = 20 ms inductive load |
| Display Type | 1 LED (green) for starter powered up 1 LED (yellow) for nominal voltage reached |
| Tightening Torque | 0.5 N.m 1.9…2.5 N.m |
| Motor Power Range Ac-3 | 4…6 kW at 380…440 V 3 phases |
| General | |
| Standards | EN/IEC 60947-4-2 |
| Product Certifications | CSA GOST C-Tick UL CCC B44.1-96/ASME A17.5 for starter wired to the motor delta terminal |
| IP Degree Of Protection | IP20 |
| Vibration Resistance | 1 gn (f= 13…150 Hz) conforming to EN/IEC 60068-2-6 1.5 mm peak to peak (f= 3…13 Hz) conforming to EN/IEC 60068-2-6 |
| Shock Resistance | 15 gn for 11 ms conforming to EN/IEC 60068-2-27 |
| Relative Humidity | 5…95 % without condensation or dripping water conforming to EN/IEC 60068-2-3 |
| Ambient air temperature for operation | -10…40 °C (without derating) 40…50 °C (with current derating of 2 % per °C) |
| Dimensions (Height x Width x Depth) | 124 x 45 x 131 mm |
| Weight | 0.42 kg |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Clipsal by Schneider Electric |
| SKU | ATS01N209QN |
| Barcode # | 3389110667233 |
| Shipping Weight | 0.5350kg |
| Shipping Width | 0.175m |
| Shipping Height | 0.055m |
| Shipping Length | 0.155m |
| Shipping Cubic | 0.001491875m3 |
| TYPE | VALUE |
|---|---|
| Type | Circuit Protection |
| Brand | Schneider Electric |
| Range | Altistart 01 |
