Description:

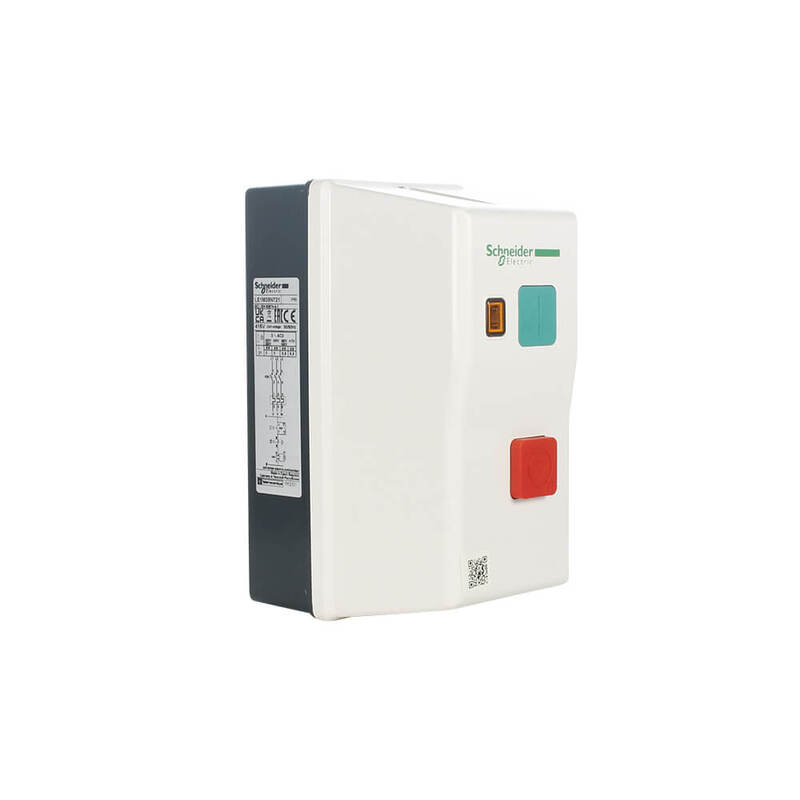

Upgrade your motor control experience with the Schneider Electric LE1M35N721 TeSys Enclosed DOL Starter. This powerful and reliable solution is designed to bring precision and efficiency to your motor-driven systems. Explore the outstanding benefits that set this starter apart and find answers to your questions in our FAQ section.
Benefits:
Versatile Motor Control: The TeSys LE1M35N721 offers a wide range of 10-14A, making it ideal for diverse motor applications, ensuring precise and efficient operation.
Durable Construction: Featuring a neutral terminal, contactor, earth terminal, and thermal overload relay, this starter is built for durability and longevity, even in demanding environments.
Universal Voltage Compatibility: With a 415 V AC coil, this starter accommodates various voltage requirements, providing flexibility for different motor configurations.
Advanced Motor Protection: The integrated thermal overload relay offers superior motor protection against overload conditions, contributing to the overall safety and durability of your motor-driven systems.
Intuitive Controls: The user-friendly control interface includes a push-button start in green (I) and a stop/reset button in red (O), ensuring straightforward and intuitive operation.
High Power Handling: Capable of handling motor powers up to 5.5 kW at 415 V AC 50/60 Hz, this starter is a robust choice for applications requiring substantial power.
Compact Design: The enclosed design ensures efficient use of space, making it easy to integrate into different setups without compromising performance.
FAQ:
Q: Can this starter be used for simple soft-starting applications?
A: Absolutely. The TeSys LE1M35N721 is suitable for applications that require simple soft-starting, ensuring controlled motor activation.
Q: How does the thermal overload relay benefit motor protection?
A: The thermal overload relay enhances motor protection by detecting and responding to overload conditions, safeguarding the motor and ensuring prolonged performance.
Q: Is the control interface user-friendly?
A: Yes. The push-button start (green) and stop/reset (red) buttons provide an intuitive control interface, ensuring ease of operation for users.
Elevate your motor control system with the Schneider Electric LE1M35N721 TeSys Enclosed DOL Starter—precision, power, and performance in one exceptional package.
(LE1M35N721)
Warranty starts from Invoice Date
Domestic Use: 18 Months
Commercial Use: 18 Months
Warranty Method: Return to Sparky Direct
| Specifications | Details |
|---|---|
| Range | TeSys |
| Product or component type | Enclosed DOL starter |
| Device application | Standard |
| Utilisation category | AC-3 |
| Device composition | Contactor Earth terminal Neutral terminal Thermal overload relay |
| Thermal protection adjustment range | 10…14 A |
| Motor power kW | 3 kW at 240 V AC 50/60 Hz 5.5 kW at 415 V AC 50/60 Hz 3 kW at 220/230 V AC 50/60 Hz 5.5 kW at 380/400 V AC 50/60 Hz |
| [Uc] control circuit voltage | 415 V AC 50/60 Hz |
| Control type | Push-button start green I Push-button stop/reset red O |
| Complementary | |
| Local signalling | Operating: LED (yellow) |
| Cable entry number | 2 ISO20 top 2 ISO25 top 2 Pg 13 top 2 Pg 21 top 2 ISO20 bottom 2 ISO25 bottom 2 Pg 13 bottom 2 Pg 21 bottom 2 Pg 16 top 2 Pg 16 bottom |
| Width | 78 mm |
| Height | 160 mm |
| Depth | 108 mm |
| Net weight | 0.6 kg |
| General | |
| Material | ABS (acrylonitrile-butadiene-styrene) |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Standards | IEC 60947-4-1 |
| Ambient air temperature for operation | -5…40 °C |
| Product certifications | UKCA |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Clipsal by Schneider Electric |
| SKU | LE1M35N721 |
| Barcode # | 3389110781229 |
| Shipping Weight | 0.5800kg |
| Shipping Width | 0.170m |
| Shipping Height | 0.120m |
| Shipping Length | 0.085m |
| Shipping Cubic | 0.001734000m3 |
| TYPE | VALUE |
|---|---|
| Type | Circuit Protection |
| Brand | Schneider Electric |
| Range | TeSys |
