Learn more by watching our Schneider Electric LE1M35U716 | TeSys enclosed DOL starter 8-11.5A 240V video.
Description:

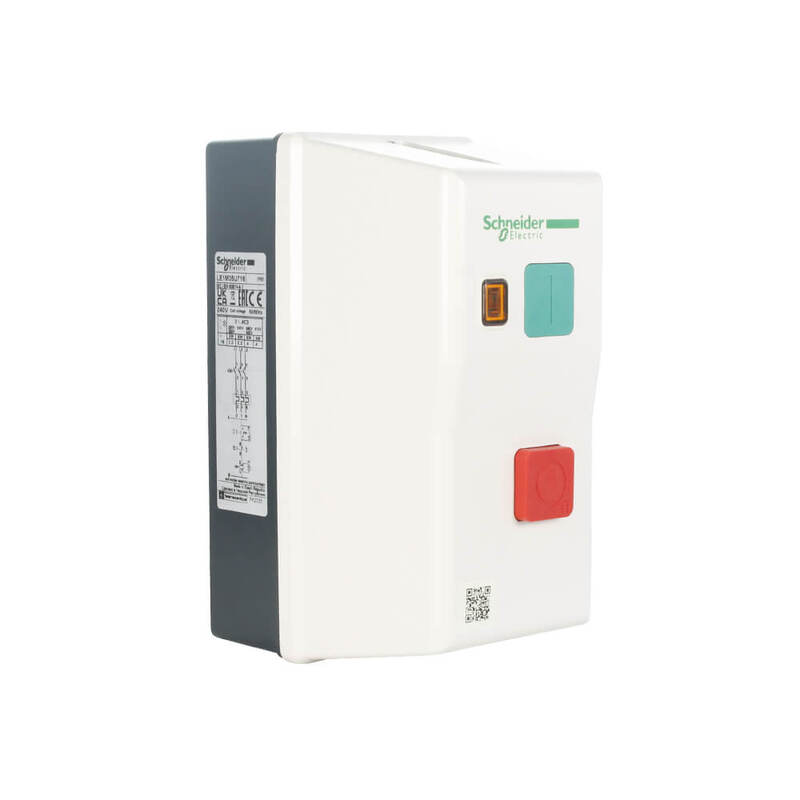

The Schneider Electric LE1M35U716 TeSys Enclosed DOL Starter is a powerhouse in motor control technology. Engineered with precision and innovation, this starter brings a new level of efficiency and reliability to your motor-driven systems. Discover the benefits that set it apart and find answers to common questions in our FAQ section.
Benefits:
Optimal Motor Control: The TeSys LE1M35U716 is designed for excellence, providing precise and efficient control for motors with power ratings between 8A and 11.5A, making it a versatile solution for various applications.
Robust Construction: The starter features a sturdy composition, including a contactor, earth terminal, thermal overload relay, and neutral terminal, ensuring durability and long-term reliability.
Wide Voltage Compatibility: With a 240 V AC coil, this starter accommodates various voltage requirements, offering flexibility for different motor setups.
Enhanced Motor Protection: The integrated thermal overload relay delivers superior motor protection, guarding against overload conditions and contributing to the overall longevity of your motor-driven systems.
Intuitive Controls: The control interface is user-friendly, featuring a push-button start in green and a stop/reset button in red, providing an intuitive and straightforward operation.
Versatile Applications: Suitable for machine manufacturers across all segments and control system panel builders, this starter is adaptable to a wide range of applications requiring simple soft starting.
Space-Efficient Design: The compact and enclosed design ensures efficient use of space, making it easy to integrate into various setups without compromising functionality.
High Power Handling: Capable of handling motor powers up to 4 kW at 415 V AC 50/60 Hz, this starter is a robust choice for demanding applications requiring substantial power.
FAQ:
Q: Can this starter be used for soft-starting applications?
A: Yes, the TeSys LE1M35U716 is suitable for simple soft-starting applications, providing smooth and controlled motor activation.
Q: What is the main benefit of the thermal overload relay in this DOL starter?
A: The thermal overload relay enhances motor protection by detecting and responding to overload conditions, ensuring the safety and longevity of your motor-driven systems.
Q: Is the control interface easy to operate?
A: Absolutely. The push-button start (green) and stop/reset (red) buttons offer an intuitive control interface, making operating straightforward for users.
Upgrade your motor control system with the Schneider Electric LE1M35U716 TeSys Enclosed DOL Starter, where precision meets power for an elevated motor control experience.
(LE1M35U716)
Warranty starts from Invoice Date
Domestic Use: 18 Months
Commercial Use: 18 Months
Warranty Method: Return to Sparky Direct
| Specifications | Details |
|---|---|
| Range | TeSys |
| Product or component type | Enclosed DOL starter |
| Device application | Standard |
| Utilisation category | AC-3 |
| Device composition | Contactor Earth terminal Neutral terminal Thermal overload relay |
| Thermal protection adjustment range | 8…11.5 A |
| Motor power kW | 2.2 kW at 240 V AC 50/60 Hz 4 kW at 415 V AC 50/60 Hz 2.2 kW at 220/230 V AC 50/60 Hz 4 kW at 380/400 V AC 50/60 Hz |
| [Uc] control circuit voltage | 240 V AC 50/60 Hz |
| Control type | Push-button start green I Push-button stop/reset red O |
| Complementary | |
| Local signalling | Operating: LED (yellow) |
| Cable entry number | 2 ISO20 top 2 ISO25 top 2 Pg 13 top 2 Pg 21 top 2 ISO20 bottom 2 ISO25 bottom 2 Pg 13 bottom 2 Pg 21 bottom 2 Pg 16 top 2 Pg 16 bottom |
| Width | 78 mm |
| Height | 160 mm |
| Depth | 108 mm |
| Net weight | 0.6 kg |
| General | |
| Material | ABS (acrylonitrile-butadiene-styrene) |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Standards | IEC 60947-4-1 |
| Ambient air temperature for operation | -5…40 °C |
| Product certifications | UKCA |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Clipsal by Schneider Electric |
| SKU | LE1M35U716 |
| Barcode # | 3389110781311 |
| Shipping Weight | 0.5750kg |
| Shipping Width | 0.170m |
| Shipping Height | 0.120m |
| Shipping Length | 0.085m |
| Shipping Cubic | 0.001734000m3 |
| TYPE | VALUE |
|---|---|
| Type | Circuit Protection |
| Brand | Schneider Electric |
| Range | TeSys |
