Description:

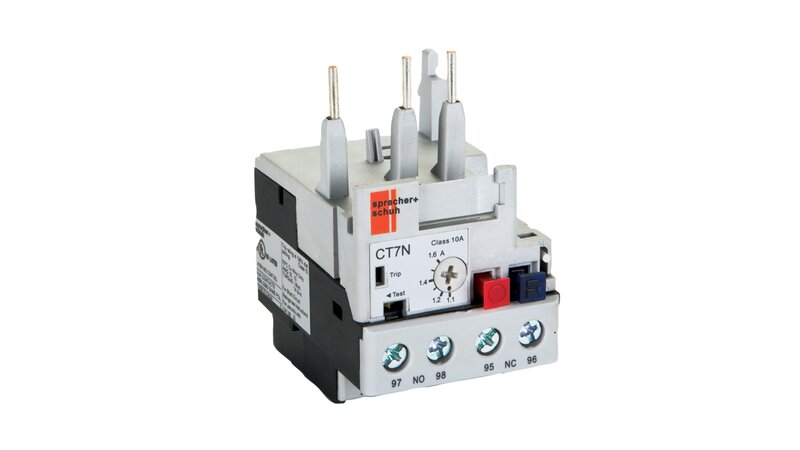

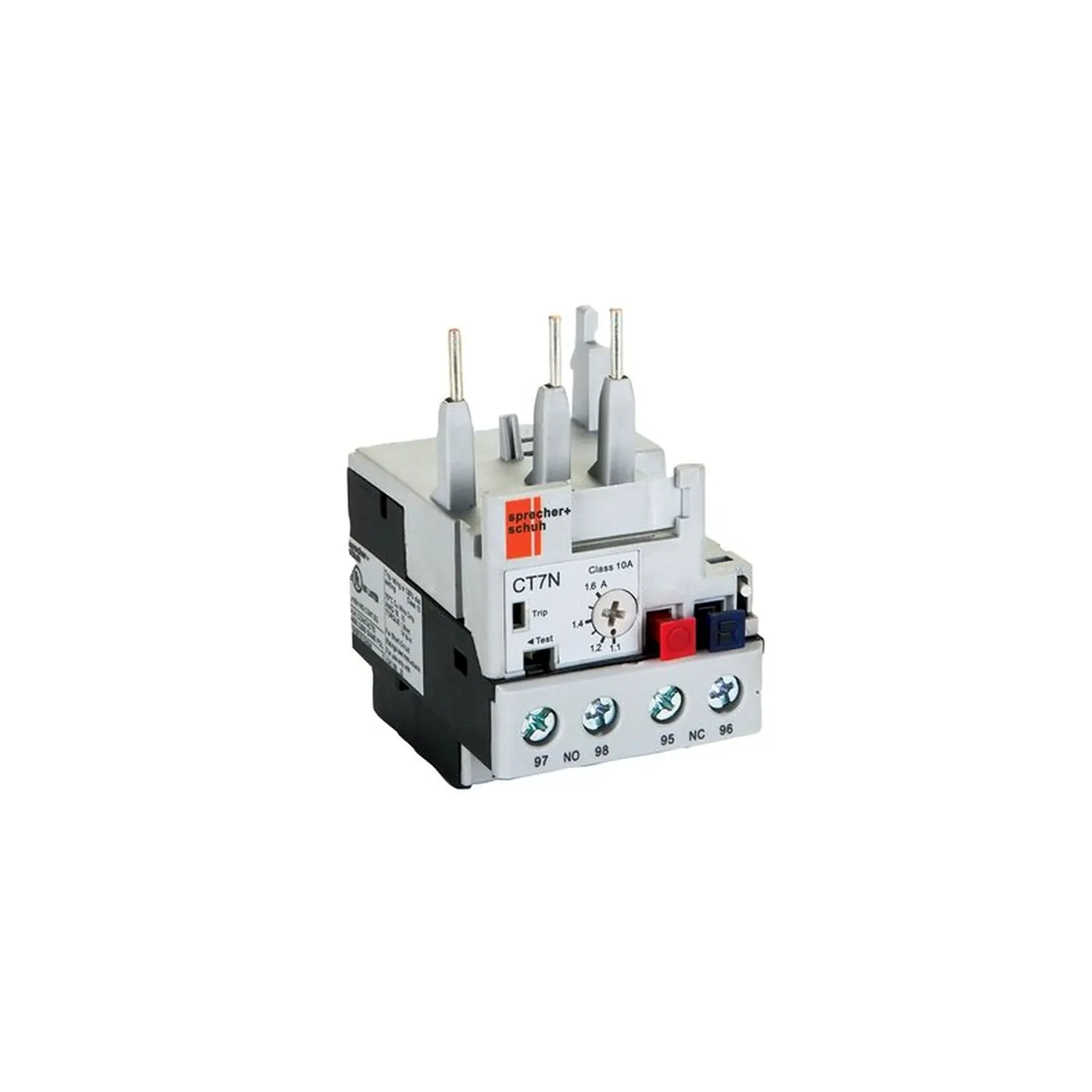

Elevate your motor protection with the Sprecher+Schuh CT7N-23-C10 Thermal Overload Relay, a pinnacle of consistent and reliable safeguarding for your home's motors. Crafted with precision and designed for versatility, this relay ensures unparalleled protection, making it the perfect choice for your diverse motor applications.
Benefits:
Dependable Motor Protection: Experience peace of mind with consistent and reliable motor protection, ensuring the longevity of your valuable equipment.
Phase Loss Sensitivity: The differential release feature adds an extra layer of protection, sensing phase loss conditions and preventing potential motor damage.
Versatile Application: Ideal for use with CA7-9 to CA7-23 Contactors, the CT7N-23-C10 is suitable for various applications, including light industry, conveyors, fans, pumps, and more.
Selectable Reset Options: Tailor the reset process to your preference with the selectable reset switch, offering both manual and automatic reset modes for added flexibility.
Optional Remote Reset Solenoid: Streamline your operations with the option for a remote reset solenoid, enhancing the convenience of managing resets.
Ideal for Diverse Motors: Whether you have VFD-controlled motors or DC motors, the CT7N-23-C10 caters to a wide range of motor types, making it a versatile choice for your home.
FAQ:
Q: What is the voltage rating of the CT7N-23-C10 Thermal Overload Relay?
A: This relay is rated for 690 Volt AC, ensuring robust protection for your motors.
Q: Can it be used for single-phase applications?
A: Yes, the CT7N-23-C10 is suitable for single-phase applications, accommodating various motor setups.
Q: Is the reset process customizable?
A: Absolutely. The CT7N-23-C10 offers a selectable reset switch, allowing users to choose between manual and automatic reset modes.
Q: What applications are ideal for this thermal overload relay?
A: The CT7N-23-C10 is perfect for light industry and low-critical process environments, including conveyors, fans, pumps, VFD-controlled motors, and DC motors.
Upgrade your motor protection strategy with the Sprecher+Schuh CT7N-23-C10 Thermal Overload Relay, delivering unmatched reliability and versatility for your home's motors. Make the smart choice for your motors—choose the CT7N-23-C10.
(CT7N-23-C10)
The warranty starts from the Invoice Date.
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
| Specification | Details |
|---|---|
| UNSPSC CLASS | 39122300 |
| UOM | EA |
| CONTACT CONFIGURATION | 1 Normally Opened & 1 Normally Closed |
| CONTROL TYPE | Automatic/Manual |
| FREQUENCY | 50/60 Hz |
| FOR USE WITH | CA7-9 to CA7-23 Contactors |
| MOUNTING METHOD | Direct |
| PLEASE NOTE | 1 Phase |
| OPERATIONAL VOLTAGE | 690 Volt AC |
| SETTING RANGE TO (AMP) | 10 |
| PRODUCT TYPE | Contactor Overloads |
| TERMINAL CONNECTION | Screw |
| TIGHTENING TORQUE | 1.5-2.2 N/m |
| TEMPERATURE | -20 to 60 deg C |
| SETTING RANGE FROM (AMP) | 7.2 |
| TRIP CHARACTERISTIC | Class 10A |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Sprecher + Schuh |
| SKU | CT7N-23-C10 |
| Barcode # | 10662074718761 |
| Shipping Weight | 0.1150kg |
| Shipping Width | 0.075m |
| Shipping Height | 0.050m |
| Shipping Length | 0.085m |
| Shipping Cubic | 0.000318750m3 |
| TYPE | VALUE |
|---|---|
| Type | Thermal Overload Relay |
| Brand | Sprecher+Schuh |
