        SUNGROW S100 | Single Phase Smart Energy Meter 100 Amp
        $145.20 $132.00 ex. GST
        Video

        Learn more by watching our SUNGROW S100 | Single Phase Smart Energy Meter 100 Amp video.

        Description

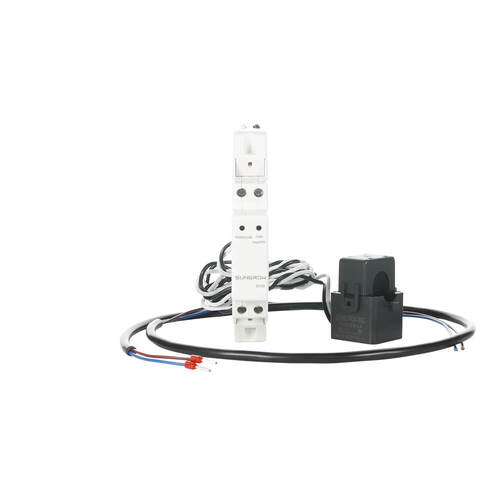

        SUNGROW S100 | Single Phase Smart Energy Meter 100 Amp

        The Sungrow S100 Single Phase Smart Energy Meter is a vital accessory for homeowners seeking efficient energy management. Designed to integrate seamlessly with Sungrow String Inverters, this energy meter provides precise monitoring and control of energy export.

        It supports a 100 Amp capacity and is perfect for residential installations. The S100 allows for effective management of energy flow, ensuring optimal use and compliance with energy export limits.

        Smart Energy Meter Features:

        • Seamless Integration: Designed to work with Sungrow String Inverters for efficient energy management.
        • High Capacity: Supports up to 100 Amps, suitable for residential energy monitoring.
        • Export Control: Allows setting export limits to the grid, with options for full, partial, or no export.
        • Easy Installation: Installs at the main switch with a CT clamp and RS485 cable for connection.
        • User-Friendly: Settings accessible via the inverter's main menu, with clear instructions for setup and adjustment.

        S100 FAQ:

        Q: How does the Sungrow S100 Energy Meter integrate with Sungrow inverters?
        A: It connects via an RS485 cable and integrates seamlessly with the inverter’s settings for export control.

        Q: What capacity does the S100 Energy Meter support?
        A: It supports a 100 Amp capacity, making it ideal for residential use.

        Q: Can the S100 Energy Meter control the amount of energy exported to the grid?
        A: Yes, it allows users to set export limits to the grid, with options for full, partial, or no export.

        Q: Is the installation process straightforward?
        A: Yes, the S100 installs at the main switch using a CT clamp and an RS485 cable, with clear instructions provided.

        (S100)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Years from installation date but no more than 2 years from manufacturing date.
        Commercial Use: 1 Years from installation date but no more than 2 years from manufacturing date.
        Warranty Method: Return to Sparky Direct



        Features
        Specification Details
        Electrical Parameter
        Nominal voltage 240 Vac
        Input voltage range 180 Vac–286 Vac
        Power consumption < 2 W (10 VA)
        Max. operating current 100 A
        Grid frequency 50 Hz
        Measurement accuracy Class I
        Interface and communication RS485
        Environmental Condition
        Ingress protection rating IP20
        Operating ambient temperature -25°C to 75°C
        Relative humidity 0–95%
        Mechanical Data
        Dimensions (W x H x D) 18 mm x 117 mm x 65 mm
        Weight 0.2 kg
        Installation 35 mm DIN-rail
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand SUNGROW
        SKU S100
        Barcode # B2342369377
        Shipping Weight 1.0000kg
        Shipping Width 0.100m
        Shipping Height 0.095m
        Shipping Length 0.235m
        Shipping Cubic 0.002232500m3
        View Datasheet
        TYPE VALUE
        Type Energy Meter
        Brand Sungrow
        Colour White
