        SUNGROW SG10RS-ADA | 10000W Multi-MPPT String Inverter for 600 Vdc
        $2,329.80 $2,118.00 ex. GST
        Description

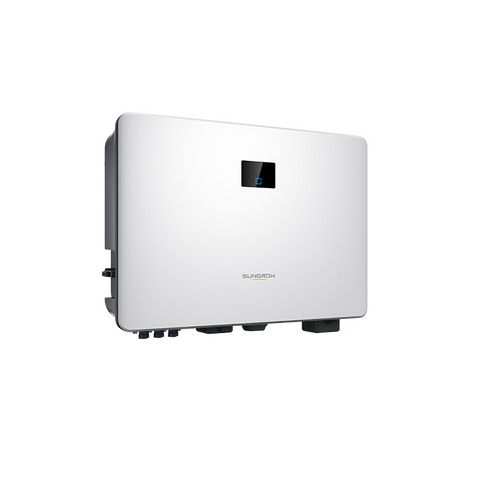

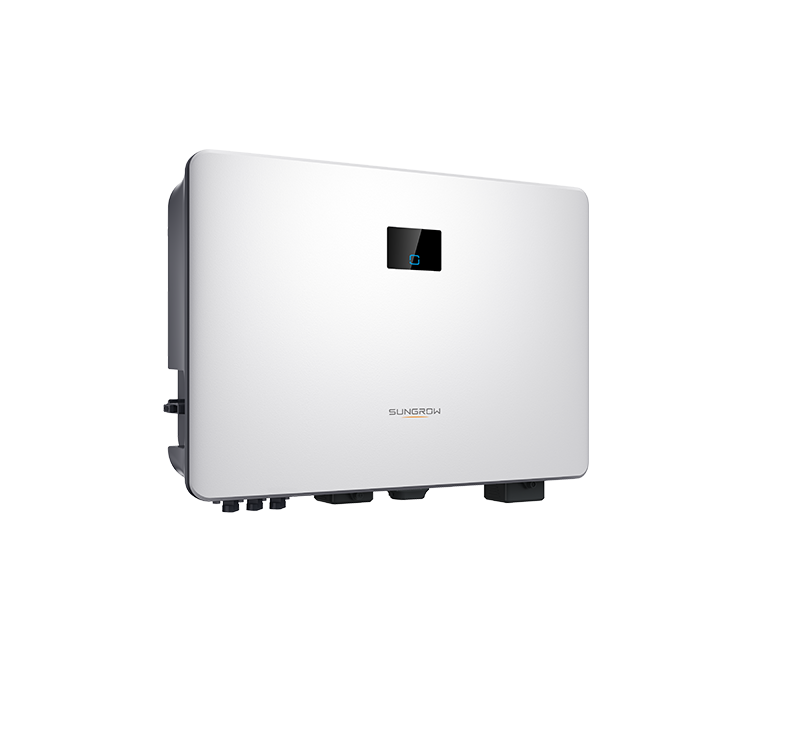

        SUNGROW SG10RS-ADA | 10000W Multi-MPPT String Inverter for 600 Vdc

        The Sungrow SG10RS-ADA is a high-performance 10000W multi-MPPT string inverter designed for residential solar systems. It integrates seamlessly with solar setups, providing efficient energy conversion and optimal performance. This inverter features a wide MPPT voltage range and a built-in smart PID recovery function, ensuring high yield.

        With integrated arc fault circuit interrupter, Type II DC&AC SPD, and corrosion protection rated at C5, the SG10RS-ADA guarantees safety and reliability. Its user-friendly design includes a plug-and-play installation, real-time data monitoring, and a light, compact build for easy setup and operation.

        10000W String Inverter Features:

        • High Yield: Supports high power PV modules and bifacial modules with a lower startup and wider MPPT voltage range.
        • Safe and Reliable: Integrated arc fault circuit interrupter, built-in Type II DC&AC SPD, and C5 corrosion protection.
        • User-Friendly Setup: Plug-and-play installation, one-click access to iSolarCloud monitoring platform, and optimized heat dissipation design.
        • Smart Management: Real-time data monitoring, online IV curve scan, and diagnosis with 24/7 live monitoring both online and with an integrated display.
        • Efficient Performance: Max efficiency of 97.8% and European efficiency of 97.3%.

        SG10RS-ADA FAQ:

        Q: What is the maximum efficiency of the Sungrow SG10RS-ADA inverter?
        A: The maximum efficiency is 97.8%.

        Q: Can the SG10RS-ADA inverter be monitored remotely?
        A: Yes, it offers one-click access to the iSolarCloud monitoring platform for real-time data and 24/7 live monitoring.

        Q: What safety features does the SG10RS-ADA include?
        A: The inverter includes an integrated arc fault circuit interrupter, Type II DC&AC SPD, DC reverse polarity protection, AC short-circuit protection, leakage current protection, and ground fault monitoring.

        Q: What type of solar modules is the SG10RS-ADA compatible with?
        A: It is compatible with high power PV modules and bifacial modules.

        (SG10RS-ADA)

        Warranty

        Warranty starts from Invoice Date

        This warranty offers a combined coverage of 10 years, divided into two phases:

        First 5 Years: During this period, you are entitled to a full product replacement in case of any issues or defects. This means if your product malfunctions within the first 5 years, you'll receive a brand-new replacement.

        Following 5 Years: After the initial 5 years, the warranty continues for an additional 5 years, but it shifts to covering parts only. In this phase, if any product components need replacement or repair, the warranty will cover the cost of those parts.

        This comprehensive warranty (Warranty Method: Return to Sparky Direct) ensures both the longevity and performance of your product, offering you peace of mind for a full decade.

        Features
        Specification Details
        Input (DC)
        Recommended max. PV input power 15 kWp
        Max. PV input voltage 600 V
        Min. operating PV voltage / Start-up input voltage 40 V / 50 V
        Rated PV input voltage 360 V
        MPP voltage range 40 – 560 V
        No. of independent MPP inputs 3
        Default No. of PV strings per MPPT 1
        Max. PV input current 48A (16A/16A/16A)
        Max. DC short-circuit current 60A (20A/20A/20A)
        Max. Current for DC Connector 30A
        Output (AC)
        Rated AC output power 9999W
        Max. AC Output power 9999W
        Rated AC output current (at 230V) 43.5A
        Max. AC output current 45.5A
        Rated AC voltage 220V/230V/240V
        AC voltage range 154-276V
        Rated grid frequency / Grid frequency range 50 Hz / 60 Hz, 45 – 55 Hz / 55 – 65 Hz
        Harmonic (THD) < 3 % (at rated power)
        Power factor at rated power / Adjustable power factor > 0.99 / 0.8 leading – 0.8 lagging
        Feed-in phases / Connection phases 1/1
        Efficiency
        Max. efficiency 97.8%
        European efficiency 96.9%
        Protection
        Grid monitoring Yes
        DC reverse polarity protection Yes
        AC short-circuit protection Yes
        Leakage current protection Yes
        Surge Protection DC type II / AC type II
        Ground Fault Monitoring Yes
        DC switch Yes
        PV string current monitoring Yes
        Arc fault circuit interrupter (AFCI) Yes
        PID Zero Function Yes
        DC Terminal Protective Cover Yes
        General Data
        Dimensions (W*H*D) 490 * 340 * 170 mm
        Weight 19 kg
        Mounting method Wall-mounting bracket
        Topology Transformerless
        Degree of protection/Corrosion IP65, C5
        Operating ambient temperature range -25 to 60 ℃
        Allowable relative humidity range (non-condensing) 0 – 100 %
        Cooling method Natural cooling
        Max. operating altitude 4000 m
        Communication
        Display LED digital display & LED indicator
        Communication Ethernet / WLAN / RS485 / DI (Ripple control & DRM)
        DC connection type MC4 (Max. 6 mm² )
        AC connection type Plug and play connector (Max. 6 mm² )
        Grid compliance IEC 62109-1/2, AS/NZS 4777.2:2020
        Grid Support Active & reactive power control and power ramp rate control
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand SUNGROW
        SKU SG10RS-ADA
        Shipping Weight 21.0000kg
        Shipping Width 0.540m
        Shipping Height 0.390m
        Shipping Length 0.220m
        Shipping Cubic 0.046332000m3
        TYPE VALUE
        Type String Inverter
        Brand Sungrow
        Colour White
