    Description

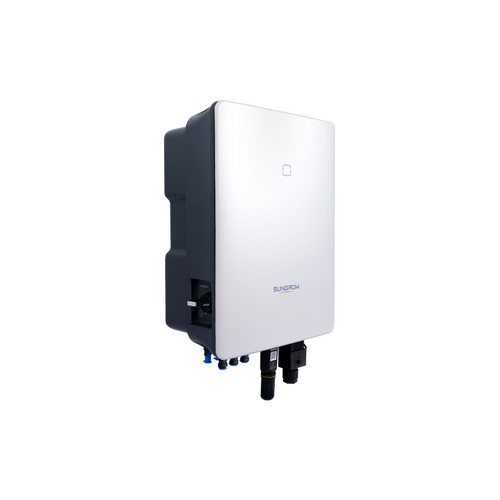

    SUNGROW SG10RT | 10kW Multi-MPPT 3 Phase Inverter

    The Sungrow SG10RT is a high-performance 10kW multi-MPPT 3-phase inverter designed for residential solar systems. It offers a wide MPPT voltage range and a built-in PID recovery function, ensuring high energy yield and system reliability. With smart management features such as IV curve scanning and 24/7 live monitoring, this inverter provides comprehensive energy management solutions.

    The SG10RT is equipped with advanced safety features, including quick arc fault circuit interrupter, Type II DC&AC SPD, and C5 anti-corrosion rating. Its user-friendly design features plug-and-play installation, natural cooling, and an LED display for easy operation.

    10kW Three Phase Inverter Features:

    • High Efficiency: Max efficiency of 98.5% and European efficiency of 97.9%.
    • Smart Management: Real-time data monitoring, IV curve scanning, and remote firmware updates.
    • Robust Safety: Quick arc fault circuit interrupter, Type II DC&AC SPD, and C5 anti-corrosion rating.
    • User-Friendly: Plug-and-play installation, natural cooling, and LED display for easy operation.
    • Wide MPPT Range: Supports 160V to 1000V, compatible with bifacial modules.

    SG10RT FAQ:

    Q: What is the maximum efficiency of the Sungrow SG10RT inverter?
    A: The maximum efficiency is 98.5%.

    Q: Can the SG10RT be monitored remotely?
    A: Yes, it offers real-time data monitoring and remote firmware updates.

    Q: What safety features are included in the SG10RT?
    A: It includes a quick arc fault circuit interrupter, Type II DC&AC SPD, and a C5 anti-corrosion rating.

    Q: What is the MPPT voltage range for the SG10RT?
    A: The MPPT voltage range is 160V to 1000V, making it compatible with a variety of modules.

    (SG10RT)

    Warranty

    Warranty starts from Invoice Date

    This warranty offers a combined coverage of 10 years, divided into two phases:

    First 5 Years: During this period, you are entitled to a full product replacement in case of any issues or defects. This means if your product malfunctions within the first 5 years, you'll receive a brand-new replacement.

    Following 5 Years: After the initial 5 years, the warranty continues for an additional 5 years, but it shifts to covering parts only. In this phase, if any product components need replacement or repair, the warranty will cover the cost of those parts.

    This comprehensive warranty (Warranty Method: Return to Sparky Direct) ensures both the longevity and performance of your product, offering you peace of mind for a full decade.

    Features
    Specification Details
    Input (DC)
    Recommended max. PV input power 15 kWp
    Max. PV input voltage 1100 V
    Min. operating PV voltage / Start-up input voltage 180 V / 180 V
    Rated PV input voltage 600 V
    MPP voltage range 160 – 1000 V
    No. of independent MPP inputs 2
    Default No. of PV strings per MPPT 2/1
    Max. PV input current 37.5A (25A/12.5A)
    Max. DC short-circuit current 48A (32A/16A)
    Max. Current for DC Connector 30A
    Output (AC)
    Rated AC output power 10000W
    Max. AC output apparent power 11000VA
    Rated AC output apparent power 11000VA
    Rated AC output current (at 230V) 16.7A
    Max. AC output current 14.5A
    Rated AC voltage 3 / N / PE, 220 / 380 V, 3 / N / PE, 230 / 400 V, 3 / N / PE, 240 / 415 V
    AC voltage range 180V – 276V / 311V - 478V
    Rated grid frequency / Grid frequency range 50 Hz / 60 Hz, 45 – 55 Hz / 55 – 65 Hz
    Harmonic (THD) < 3 % (at rated power)
    Power factor at rated power / Adjustable power factor > 0.99 / 0.8 leading – 0.8 lagging
    Feed-in phases / Connection phases 3 / 3-PE
    Efficiency
    Max. efficiency 98.5%
    European efficiency 97.9%
    Protection
    Grid monitoring Yes
    DC reverse polarity protection Yes
    AC short-circuit protection Yes
    Leakage current protection Yes
    Surge Protection DC type II / AC type II
    Ground Fault Monitoring Yes
    DC switch Yes
    PV string current monitoring Yes
    Arc fault circuit interrupter (AFCI) Yes
    PID Zero Function Yes
    General Data
    Dimensions (W*H*D) 370 * 480 * 195 mm
    Weight 11 kg
    Mounting method Wall-mounting bracket
    Topology Transformerless
    Degree of protection/Corrosion IP65, C5
    Night power consumption < 6 W
    Operating ambient temperature range -25 to 60 ℃
    Allowable relative humidity range (non-condensing) 0 – 100 %
    Cooling method Natural cooling
    Max. operating altitude 4000 m
    Communication
    Display LED digital display & LED indicator
    Communication WLAN / Ethernet / RS485 / DI / DO
    DC connection type MC4 (Max. 6 mm² )
    AC connection type Plug and play connector (Max. 6 mm² )
    Grid compliance IEC / EN 61000-6-1/2/3/4, IEC 61000-3-2/3/11/12, IEC / EN62109-1/2, IEC 61727, IEC 62116, IEC 61683, IEC 60068-2-1/2/14/30/64/27, IEC TS 62910, EN50530, AS/NZS 4777.2:2020, VDE-AR-N-4105, DIN VDE0126- 1-1/A1, EN50549-1, DEWA, VFR 2019, UTE C15-712-1, PSE NC RfG, UNE 206006/7 IN, MEA/PEA, G98, UNE 217002:2020, NTS V2 TypeA
    Grid Support LVRT, HVRT, active & reactive power control and power ramp rate control
    Specifications

    These specifications and characteristics outline physical, mechanical, electrical details.

    Brand SUNGROW
    SKU SG10RT
    Package Weight 20.000kg
    Package Width 0.420m
    Package Height 0.530m
    Package Length 0.245m
    TYPE VALUE
    Type String Inverter
    Brand Sungrow
    Colour White
