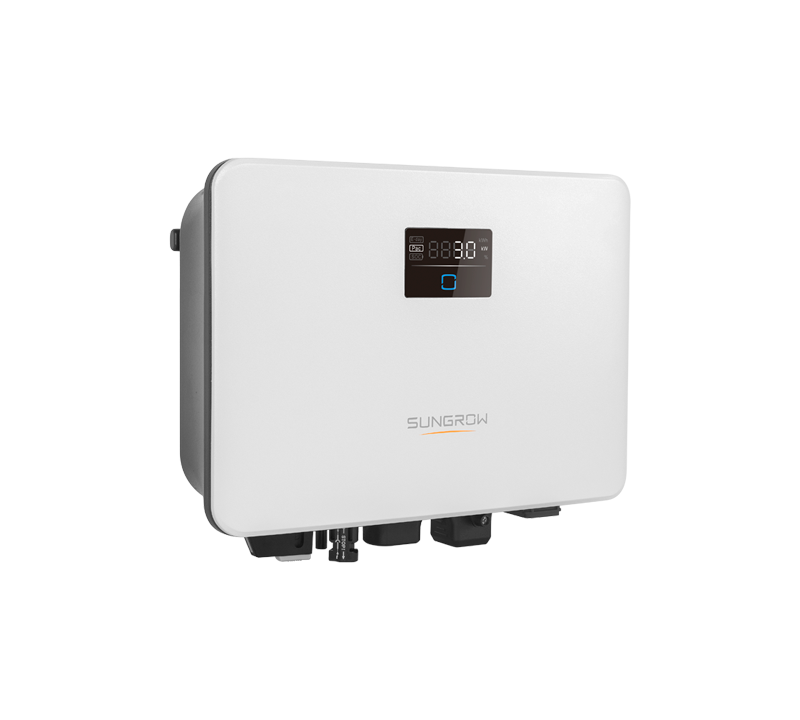

The Sungrow SG2.0RS-S is a high-performance 2000W single-MPPT string inverter designed for residential solar systems. Compatible with high-power PV modules and bifacial modules, this inverter offers a wide MPPT voltage range for increased energy yield.
It features a built-in smart PID recovery function and advanced safety measures such as an integrated arc fault circuit interrupter and Type II DC&AC SPD. The user-friendly design includes plug-and-play installation, real-time data monitoring, and a compact, lightweight build, making it an excellent choice for homeowners seeking reliable and efficient solar energy solutions.
Q: What is the maximum efficiency of the Sungrow SG2.0RS-S inverter?
A: The maximum efficiency is 97.8%.
Q: Can the SG2.0RS-S be monitored remotely?
A: Yes, it offers real-time data monitoring and over-the-air firmware updates for remote management.
Q: What safety features are included in the SG2.0RS-S?
A: The inverter includes an integrated arc fault circuit interrupter, built-in Type II DC&AC SPD, and a C5 anti-corrosion rating.
Q: What is the MPPT voltage range for the SG2.0RS-S?
A: The MPPT voltage range is 40V to 560V, making it compatible with various PV modules.
(SG2.0RS-S)
Warranty starts from Invoice Date
This warranty offers a combined coverage of 10 years, divided into two phases:
First 5 Years: During this period, you are entitled to a full product replacement in case of any issues or defects. This means if your product malfunctions within the first 5 years, you'll receive a brand-new replacement.
Following 5 Years: After the initial 5 years, the warranty continues for an additional 5 years, but it shifts to covering parts only. In this phase, if any product components need replacement or repair, the warranty will cover the cost of those parts.
This comprehensive warranty (Warranty Method: Return to Sparky Direct) ensures both the longevity and performance of your product, offering you peace of mind for a full decade.
Specification | Details |
---|---|
Input (DC) | |
Recommended max. PV input power | 3 kWp |
Max. PV input voltage | 600 V |
Min. operating PV voltage / Start-up input voltage | 40 V / 50 V |
Rated PV input voltage | 360 V |
MPP voltage range | 40 – 560 V |
No. of independent MPP inputs | 1 |
Default No. of PV strings per MPPT | 1 |
Max. PV input current | 16A |
Max. DC short-circuit current | 20A |
Output (AC) | |
Rated AC output power | 2000W |
Max. AC Output power | 2000W |
Rated AC output current (at 230V) | 8.7A |
Max. AC output current | 9.1A |
Rated AC voltage | 220V/230V/240V |
AC voltage range | 154-276V |
Rated grid frequency / Grid frequency range | 50 Hz / 45 – 55 Hz, 60 Hz / 55 – 65 Hz |
Harmonic (THD) | < 3 % (at rated power) |
Power factor at rated power / Adjustable power factor | > 0.99 / 0.8 leading – 0.8 lagging |
Feed-in phases / Connection phases | 1/1 |
Efficiency | |
Max. efficiency | 97.8% |
European efficiency | 96.9% |
Protection | |
Grid monitoring | Yes |
DC reverse polarity protection | Yes |
AC short-circuit protection | Yes |
Leakage current protection | Yes |
Surge Protection | DC type II / AC type II |
DC switch | Yes |
PV string current monitoring | Yes |
Arc fault circuit interrupter (AFCI) | Optional |
General Data | |
Dimensions (W*H*D) | 320 * 225 * 120 mm |
Weight | 6 kg |
Mounting method | Wall-mounting bracket |
Topology | Transformerless |
Degree of protection | IP65 |
Operating ambient temperature range | -25 to 60 ℃ |
Allowable relative humidity range (non-condensing) | 0 – 100 % |
Cooling method | Natural cooling |
Max. operating altitude | 4000 m |
Communication | |
Display | LED digital display & LED indicator |
Communication | Ethernet / WLAN / RS485 / DI (Ripple control & DRM) |
DC connection type | MC4 (Max. 6 mm² ) |
AC connection type | Plug and play connector (Max. 6 mm² ) |
Grid compliance | IEC / EN62109-1/2, IEC / EN62116, IEC / EN61727, IEC / EN61000-6-2/3, EN50549-1, AS4777.2, UNE 217002:2020, NTS V2 TypeA, CEI 0-21:2020, VDE0126-1-1/A1(VFR-2019), UTE C15-712, C10/11, G98/G99 |
Grid Support | Active & reactive power control and power ramp rate control |
