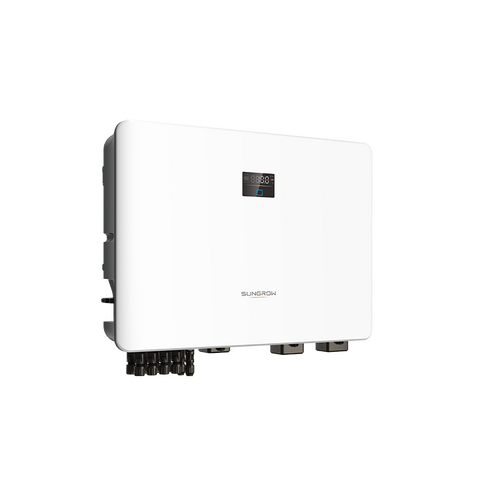

SUNGROW SH10.0RS | 10kW Hybrid Single Phase Solar Inverter
The Sungrow SH10.0RS is a high-performance 10kW hybrid single phase solar inverter designed for residential use. This inverter supports a 600 Vdc system and integrates seamlessly with solar power setups to provide efficient energy conversion and management.
Equipped with advanced features such as smart PID recovery, real-time data monitoring, and a wide MPPT voltage range, the SH10.0RS ensures optimal performance and reliability. Its user-friendly design includes plug-and-play installation, 24/7 live monitoring via the iSolarCloud platform, and robust safety features such as arc fault circuit interrupter and surge protection.
Features:
FAQ:
Q: What is the maximum efficiency of the Sungrow SH10.0RS inverter?
A: The maximum efficiency is 97.5%.
Q: Can the SH10.0RS be monitored remotely?
A: Yes, it offers real-time data monitoring and over-the-air firmware updates via the iSolarCloud platform.
Q: What safety features are included in the SH10.0RS?
A: The inverter includes an arc fault circuit interrupter, built-in Type II DC&AC SPD, and a C5 corrosion protection rating.
Q: What is the MPPT voltage range for the SH10.0RS?
A: The MPPT voltage range is 40V to 560V, making it compatible with various PV modules.
(SH10.0RS)
Warranty starts from Invoice Date
This warranty offers a combined coverage of 10 years, divided into two phases:
First 5 Years: During this period, you are entitled to a full product replacement in case of any issues or defects. This means if your product malfunctions within the first 5 years, you'll receive a brand-new replacement.
Following 5 Years: After the initial 5 years, the warranty continues for an additional 5 years, but it shifts to covering parts only. In this phase, if any product components need replacement or repair, the warranty will cover the cost of those parts.
This comprehensive warranty (Warranty Method: Return to Sparky Direct) ensures both the longevity and performance of your product, offering you peace of mind for a full decade.
| Specification | Details |
|---|---|
| Input (DC) | |
| Recommended max. PV input power | 20000 Wp |
| Max. PV input voltage | 600 V |
| Min. operating PV voltage / Start-up input voltage | 40 V / 50 V |
| Rated PV input voltage | 360 V |
| MPP voltage range | 40V – 560 V |
| No. of independent MPP inputs | 4 |
| Default No. of PV strings per MPPT | 1\1\1\1 |
| Max. PV input current | 64 A (16 A / 16 A / 16 A / 16 A) |
| Max. DC short-circuit current | 80 A (20 A / 20 A / 20 A / 20 A) |
| Max. current for input connector | 20 A |
| Battery Data | |
| Battery type | Li-ion battery |
| Battery voltage range | 80 V – 460 V |
| Max. charge / discharge current | 50 A / 50 A |
| Max. charge / discharge power | 10000 W / 10000 W |
| Output (AC) | |
| Max. AC input power from grid | 14500 VA |
| Rated AC output power | 9999 W |
| Max. AC output power | 9999 VA |
| Max. AC output current | 45.5 A |
| Rated AC voltage | 1 / N / PE, 220 V / 230 V / 240V |
| AC voltage range | 154 V – 276 V |
| Rated grid frequency / Grid frequency range | 45 Hz – 55 Hz / 55 Hz – 65 Hz |
| Harmonic (THD) | < 3 % (at rated power) |
| Power factor at rated power / Adjustable power factor | > 0.99 / 0.8 leading – 0.8 lagging |
| Feed-in phases / Connection phases | 1 / 1-N-PE |
| Backup Data (on grid mode) | |
| Rated output power for backup load | 14500 W |
| Rated output current for backup load | 63 A |
| Backup Data (off-grid mode) | |
| Rated voltage | 1 / N / PE, 220 V / 230 V / 240V( ± 2 % ) |
| Rated grid frequency | 50 Hz / 60Hz ( ± 2 % ) |
| Output voltage harmonic ( THD ) | < 2 % |
| Switch time to emergency mode | < 10 ms |
| Rated output power | 9999 W / 9999 VA |
| Peak output power | 13680 VA, 10 s |
| Efficiency | |
| Max. efficiency | 97.5% |
| European efficiency | 97.1% |
| Protection & Function | |
| Grid monitoring | Yes |
| DC reverse polarity protection | Yes |
| AC short-circuit protection | Yes |
| Leakage current protection | Yes |
| DC switch(solar) | Yes |
| Surge protection | DC type II / AC type II |
| PID Zero | Yes |
| Parallel operation on grid port / Max. No of inverters | 3 |
| Battery input reverse polarity protection | Yes |
| AFCI | Yes |
| IV scan and diagnosis | Yes |
| General Data | |
| Dimensions (W*H*D) | 605 * 435 * 181 mm |
| Weight | 29 kg |
| Mounting method | Wall-mounting bracket |
| Topology | Transformerless |
| Degree of protection | IP65 |
| Operating ambient temperature range | -25 to 60 ℃ |
| Allowable relative humidity range (non-condensing) | 0 – 100 % |
| Cooling method | Natural Convection |
| Max. operating altitude | 4000 m |
| Noise ( typical ) | 45 dB ( A ) |
| Communication | |
| Display | LED digital display & LED indicator |
| Communication | RS485 / Ethernet / WLAN / CAN |
| DI / DO | DI * 1 / DO * 2 / DRM |
| DC connection type | MC4 ( PV ) / Plug and play connector ( battery ) |
| AC connection type | Plug and play connector |
| Grid compliance | IEC 62109-1:2010, IEC 62109-2, IEC 62477-1, IEC61000-6-1/-2/-3/-4, IEC62920, EN55011, CISPR 11, AS/NZS 4777.2:2020 |
