        SUNGROW SH5.0RS | 5kW Hybrid Single Phase Solar Inverter
        $2,145.00 $1,950.00 ex. GST
        Description

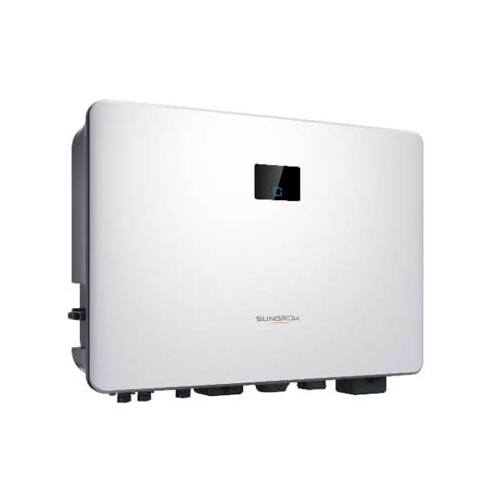

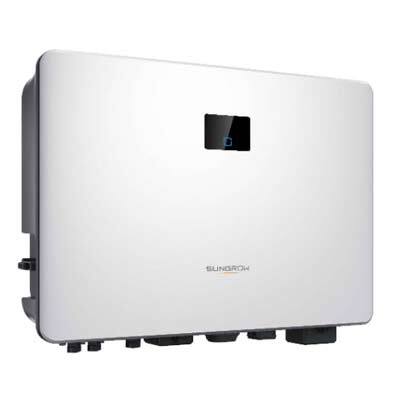

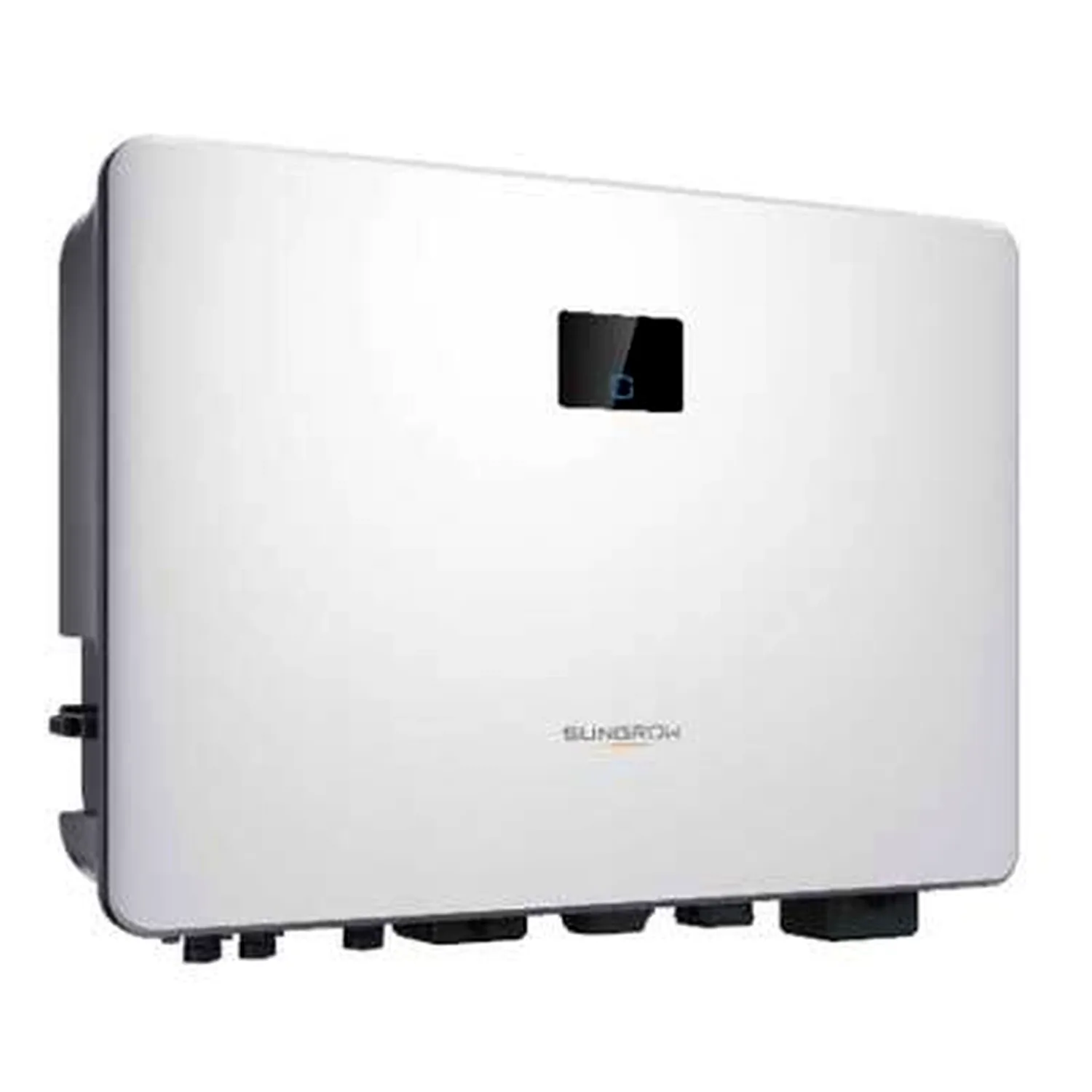

        SUNGROW SH5.0RS | 5kW Hybrid Single Phase Solar Inverter

        The Sungrow SH5.0RS is a high-performance 5kW hybrid single-phase solar inverter designed for residential use. This inverter supports a 600 Vdc system and features dual MPPs for enhanced energy harvesting. It integrates seamlessly with solar power setups, providing efficient energy conversion and management.

        With advanced features like seamless transition to backup mode, smart energy management, and high self-consumption with optimized built-in EMS, the SH5.0RS ensures reliable and efficient performance. Its user-friendly design includes plug-and-play installation, smartphone commissioning, and comprehensive online monitoring, making it an excellent choice for residential solar systems.

        5kW Hybrid Single Phase Inverter Features:

        • High Yield: Supports high power PV modules with a wide MPP voltage range (40V-560V) for maximum energy harvest.
        • Energy Independence: Seamless transition to backup mode and fast charging/discharging to meet higher consumption demands.
        • Smart Management: Real-time data monitoring, remote firmware updates, and customizable settings.
        • Robust Safety: Includes integrated DC and AC Type II surge protection, arc fault circuit interrupter, and C5 corrosion protection.
        • User-Friendly: Easy installation with unique push-in connectors, touch-free commissioning via smartphone, and lightweight, compact design.

        SH5.0RS FAQ:

        Q: What is the maximum efficiency of the Sungrow SH5.0RS inverter?
        A: The maximum efficiency is 97.7%.

        Q: Can the SH5.0RS be monitored remotely?
        A: Yes, it offers real-time data monitoring, remote firmware updates, and customizable settings through online platforms.

        Q: What safety features are included in the SH5.0RS?
        A: The inverter includes DC and AC Type II surge protection, arc fault circuit interrupter, and C5 corrosion protection.

        Q: What is the MPPT voltage range for the SH5.0RS?
        A: The MPPT voltage range is 40V to 560V, making it compatible with a variety of PV modules.

        (SH5.0RS)

        Warranty

        Warranty starts from Invoice Date

        This warranty offers a combined coverage of 10 years, divided into two phases:

        First 5 Years: During this period, you are entitled to a full product replacement in case of any issues or defects. This means if your product malfunctions within the first 5 years, you'll receive a brand-new replacement.

        Following 5 Years: After the initial 5 years, the warranty continues for an additional 5 years, but it shifts to covering parts only. In this phase, if any product components need replacement or repair, the warranty will cover the cost of those parts.

        This comprehensive warranty (Warranty Method: Return to Sparky Direct) ensures both the longevity and performance of your product, offering you peace of mind for a full decade.

        Features
        Specification Details
        Input (DC)
        Recommended max. PV input power 12000 Wp
        Max. PV input voltage 600 V
        Min. operating PV voltage / Start-up input voltage 40 V / 50 V
        Rated PV input voltage 360 V
        MPP voltage range 40V – 560 V
        No. of independent MPP inputs 2
        Default No. of PV strings per MPPT 1
        Max. PV input current 32A (16A/16A)
        Max. DC short-circuit current 40A (20A/20A)
        Output (AC)
        Max. AC input power from grid 12000 VA
        Rated AC output power 5000 W
        Max. AC output power 5000 VA
        Rated AC output current (at 230V) 21.8A
        Max. AC output current 22.8A
        Rated AC voltage 220 / 230 / 240 V
        AC voltage range 154 V – 276 V
        Rated grid frequency / Grid frequency range 50 Hz / 45 – 55 Hz, 60 Hz / 55 – 65 Hz
        Harmonic (THD) < 3 % (at rated power)
        Power factor at rated power / Adjustable power factor > 0.99 / 0.8 leading – 0.8 lagging
        Feed-in phases / Connection phases 1/1
        Efficiency
        Max. efficiency 97.7%
        European efficiency 97.3%
        Protection & Function
        Grid monitoring Yes
        DC reverse polarity protection Yes
        AC short-circuit protection Yes
        Leakage current protection Yes
        Surge Protection DC type II / AC type II
        DC switch(solar) Yes
        DC fuse(battery) Yes
        PID recovery function Yes
        Battery input reverse polarity protection Yes
        Battery Data
        Battery type Li-ion battery
        Battery voltage 80 V - 460 V
        Max charge/discharge current 30 A / 30 A
        Max charge/discharge power 6600 W
        General Data
        Dimensions (W*H*D) 490 * 340 * 170 mm
        Weight 18.5 kg
        Mounting method Wall-mounting bracket
        Topology Transformerless
        Degree of protection IP65
        Operating ambient temperature range -25 to 60 ℃
        Allowable relative humidity range (non-condensing) 0 – 100 %
        Cooling method Natural Convection
        Max. operating altitude 4000 m
        Display LED digital display & LED indicator
        Communication
        Communication RS485 / Ethernet / WLAN / CAN
        DI / DO DI * 4 / DO * 1 / DRM
        DC connection type MC4 (PV) / Sunclix (Battery)
        AC connection type Plug and play connector
        Grid compliance IEC/EN 62109-1, IEC/EN 62109-2, IEC/EN 61000-3-11, IEC/EN 61000-3-12, EN 62477-1, AS/NZS 4777.2, EN 50549-1, CEI 0-21, G98 / G99
        Backup Data (on grid mode)
        Rated output power for backup load 6000 W
        Rated output current for backup load 27.3 A
        Backup Data (off-grid mode)
        Rated voltage 220 V / 230 V / 240 V (±2 %)
        Frequency range 50 Hz / 60 Hz (±0.2 %)
        Total output THDv for linear load < 2 %
        Switch time to emergency mode < 10 ms
        Rated output power 5000 W / 5000 VA
        Peak output power 8400 VA, 10s
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand SUNGROW
        SKU SH5.0RS
        Shipping Weight 23.5000kg
        Shipping Width 0.590m
        Shipping Height 0.330m
        Shipping Length 0.490m
        Shipping Cubic 0.095403000m3
        TYPE VALUE
        Type Hybrid Inverter
        Brand Sungrow
        Colour White
