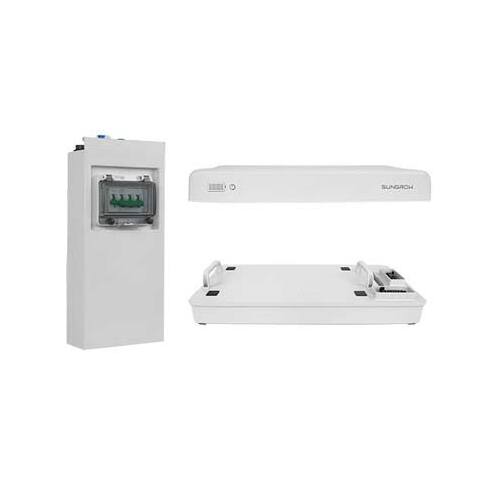

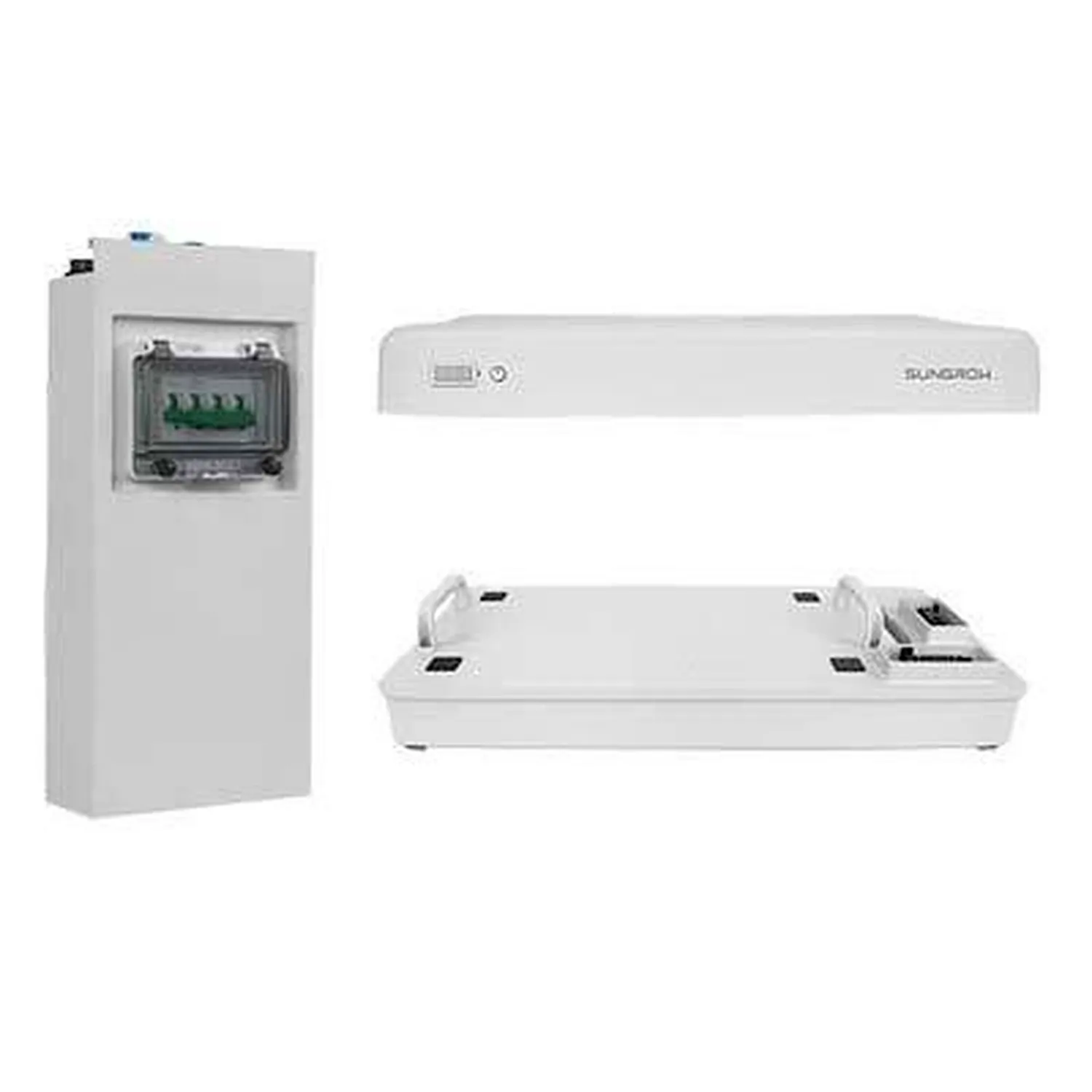

        SUNGROW SSBRACC | Switchgear cover and base for Sungrow SBR batteries

        The Sungrow SSBRACC Switchgear Cover and Base is a comprehensive kit designed to complement your Sungrow SBR battery setup. This essential accessory optimizes your energy storage system for enhanced performance and peace of mind. The SSBRACC kit includes everything you need, such as a base plate, top cover, and internal DC switchgear.

        It is designed to accommodate 3-8 Sungrow 3.2 kWh battery modules per stack and can connect up to 4 stacks in parallel, providing an impressive maximum capacity of 102.4 kWh. With an IP55 rating, this kit ensures your system remains secure and protected in challenging environments.

        Sungrow Switchgear Cover And Base Features:

        • Complete Kit: Includes a base plate, top cover, and internal DC switchgear for a comprehensive solution.
        • Scalability: Supports 3-8 battery modules per stack and up to 4 stacks in parallel for flexible energy storage.
        • Maximum Capacity: Achieve up to 102.4 kWh by connecting multiple battery stacks.
        • Side Cover Support: Requires side covers for modules beyond the 3rd unit, ensuring secure and efficient operation.
        • Rugged and Reliable: IP55 rating for durability and protection in challenging environments.

        SSBRACC FAQ:

        Q: What does the SSBRACC kit include?
        ​​​​​​​A: The kit includes a base plate, top cover, and internal DC switchgear, providing a complete solution to enhance your Sungrow SBR battery setup.

        Q: How many battery modules can I connect using this kit?
        A: You can connect 3-8 Sungrow 3.2 kWh battery modules within each battery stack, allowing you to tailor your system to your energy needs.

        Q: What is the maximum capacity I can achieve with this kit?
        A: The SSBRACC kit supports the connection of up to 4 battery stacks in parallel, offering an impressive maximum capacity of 102.4 kWh.

        Q: Do I need side covers for my battery modules?
        A: Yes, for each battery module beyond the 3rd unit, a side cover is required to ensure the security and efficiency of your setup.

        Q: Is the SSBRACC kit built to withstand challenging environments?
        A: Absolutely! The kit boasts an IP55 rating, ensuring its durability and resilience, even in demanding conditions.

        (SSBRACC)

        Warranty

        Warranty starts from Invoice Date

        This warranty offers a combined coverage of 10 years, divided into two phases:

        First 5 Years: During this period, you are entitled to a full product replacement in case of any issues or defects. This means if your product malfunctions within the first 5 years, you'll receive a brand-new replacement.

        Following 5 Years: After the initial 5 years, the warranty continues for an additional 5 years, but it shifts to covering parts only. In this phase, if any product components need replacement or repair, the warranty will cover the cost of those parts.

        This comprehensive warranty (Warranty Method: Return to Sparky Direct) ensures both the longevity and performance of your product, offering you peace of mind for a full decade.

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand SUNGROW
        SKU SSBRACC
        Shipping Weight 21.9000kg
        Shipping Width 0.550m
        Shipping Height 0.260m
        Shipping Length 0.730m
        Shipping Cubic 0.104390000m3
        TYPE VALUE
        Type Battery Accessories
        Brand Sungrow
        Colour White
