    Video

    Learn more by watching our Tesla ATS-1DR | Analogue Time Switch with Daily Program | 16A 230V video.

    Description

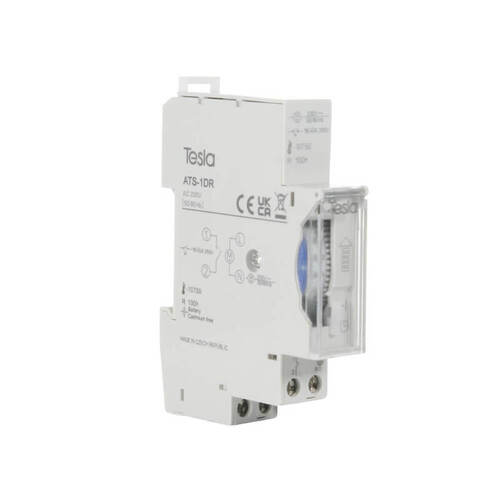

    Tesla ATS-1DR | Analogue Time Switch with Daily Program | 16A 230V

    Description:

    The Tesla ATS-1DR Analogue Time Switch is the perfect blend of simplicity and efficiency for managing your daily electrical system needs. Designed with electricians and their customers in mind, this mechanical time switch offers a straightforward and cost-effective solution to control heating, ventilation, cooling, lighting, or pump systems with a precise daily program.

    Features:

    • Daily Program Cycle: Enables precise control over connected systems with 96 switch segments and a minimum interval of 15 minutes.
    • Operating Modes Selection: A switch on the panel allows for automatic operation according to the set program or permanent closure.
    • Power Reserve: Maintains settings for up to 100 hours after a power failure, ensuring reliability and convenience.
    • User-Friendly Installation: DIN rail mounting and a compact design (90 × 18 × 66 mm) make installation straightforward in various settings.
    • Robust Performance: Features 1x NO contact rated at 16 A/AC1, with a mechanical life of 100,000 operations and an electrical life of 30,000 operations at AC1.

    FAQ:

    Q: What are the benefits of the Tesla ATS-1DR?
    A: It's designed to be a reliable, user-friendly time switch for your electrical systems, suitable for residential and commercial applications.

    Q: How does the Tesla ATS-1DR ensure continuous operation during power outages?
    A: With its power reserve feature, it can maintain its program for up to 100 hours after being fully charged, minimizing disruptions.

    Q: What makes the Tesla ATS-1DR a good choice compared to digital time switches?
    A: Its mechanical design offers simplicity and reliability, with fewer components that can fail, making it an inexpensive yet effective solution for many applications.

    The Tesla ATS-1DR Analogue Time Switch is more than just a time control device; it's a testament to efficient and reliable electrical system management. Whether for residential or commercial settings, it delivers consistent performance, ensuring your heating, ventilation, cooling, and lighting systems operate seamlessly according to your daily schedule.

    (ATS-1DR)

    Warranty

    Warranty starts from Invoice Date

    Domestic Use: 1 Year
    Commercial Use: 1 Year
    Warranty Method: Return to Sparky Direct

    Features
    Supply
    Supply terminals L-N
    Supply voltage AC 230 V (50/60 Hz)
    Power consumption (max.) 1.5 VA/1 W
    Supply voltage tolerance −10 %; +10 %
    Time Circuit
    Program Daily
    Number of switching segments 96
    Minimum switching interval 15 mins
    Operating accuracy ±2s/day at 25 °C
    Power reserve Max. 100 hrs
    Output
    Number of contacts 1x NO (AgCdO15)
    Rated current 16 A/AC1
    Breaking capacity 4000 VA/AC1
    Switching voltage 250 V AC
    Mechanical life 100.000 ops.
    Electrical life (AC1) 30.000 ops.
    Other Information
    Operating temperature −10 to +50 °C
    Storage temperature −10 to +50 °C
    Dielectric strength 4 kV (supply − output)
    Operating position Any
    Mounting DIN rail EN 60715
    Protection degree IP20
    Overvoltage category III
    Pollution degree 2
    Cross-wire section − solid/stranded with ferrule (mm2) Max. 1× 4, 2× 2.5/ max. 1× 4 (12 AWG)
    Dimensions 90 × 18 × 66 mm
    Weight 70g
    Standards EN 61812-1, EN 60730
    Specifications

    These specifications and characteristics outline physical, mechanical, electrical details.

    Brand Tesla
    SKU ATS-1DR
    Barcode # 8595188182171
    Package Weight 0.090kg
    Package Width 0.100m
    Package Height 0.030m
    Package Length 0.075m
    TYPE VALUE
    Type Timer
    Brand Tesla
