Description:

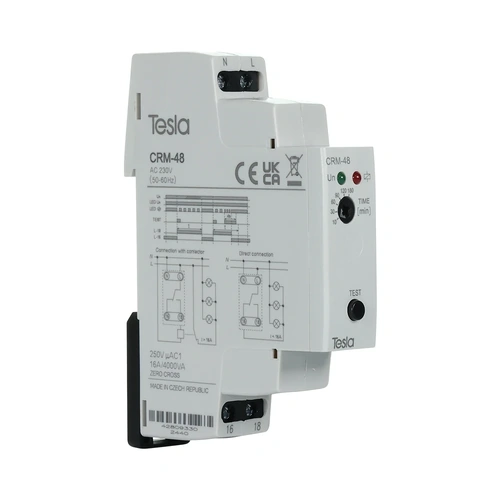

The Tesla TESCRM-48 is an automated emergency light tester for 230V AC systems. It offers an adjustable time delay from 10 to 180 minutes, set via a rotary switch with six presets. Features include a manual test button, LED indicators for status, and ZERO CROSS switching for stable operation. Rated at 16A, it connects directly to emergency lighting or through a contactor for higher loads. The unit mounts on a DIN rail, complies with EN 61812-1, has IP40 front protection, and operates from -20°C to +55°C.
Q: What is the voltage and current rating of the TESCRM-48?
A: The device operates at 230V AC and supports a current rating of 16A.
Q: How is the time delay adjusted?
A: Time delay is set using a rotary switch with options between 10 and 180 minutes.
Q: Does the TESCRM-48 support DIN rail installation?
A: Yes, it is designed for DIN rail mounting according to EN 60715.
(TESCRM-48)
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
| Specification | Details |
|---|---|
| Model | TESCRM-48 |
| Supply Voltage | AC 230 V (50-60 Hz) |
| Power Consumption | 3.9 VA / 1.9 W |
| Supply Voltage Tolerance | -15% / +10% |
| Number of Functions | 1 |
| Time Delay Settings | 10m, 30m, 60m, 90m, 120m, 180m (rotary switch) |
| Time Deviation | 5% (mechanical setting) |
| Repeat Accuracy | 0.2% |
| Temperature Coefficient | 0.01% / °C |
| Output Contact Type | 1 x Changeover (AgSnO2) |
| Current Rating | 16A / AC1 |
| Breaking Capacity | 4000 VA / AC1 |
| Inrush Current | 80A / 20ms (NO contact) |
| Switching Voltage | 250V AC / 24V DC |
| Power Dissipation | 1.2W |
| Mechanical Life | 10,000,000 cycles |
| Electrical Life (AC1) | 20,000 cycles |
| Operating Temperature | -20°C to +55°C |
| Storage Temperature | -30°C to +70°C |
| Mounting | DIN rail EN 60715 |
| Protection Degree | IP40 (front panel) / IP20 (terminals) |
| Overvoltage Category | III |
| Pollution Degree | 2 |
| Cross-Wire Section | Max 1 x 2.5mm² or 2 x 1.5mm² |
| Dimensions (mm) | 90 x 17.6 x 64 |
| Weight | 53g |
| Standards | EN 61812-1 |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Tesla |
| SKU | TESCRM-48 |
| Barcode # | 8595188191227 |
| Package Weight | 0.069kg |
| Package Width | 0.027m |
| Package Height | 0.073m |
| Package Length | 0.099m |
| TYPE | VALUE |
|---|---|
| Type | Emergency Light Tester |
| Brand | Tesla |
| Voltage (V) | 230 |
| Dimensions | 90 x 17.6 x 64mm |
| Amperage | 16A |
