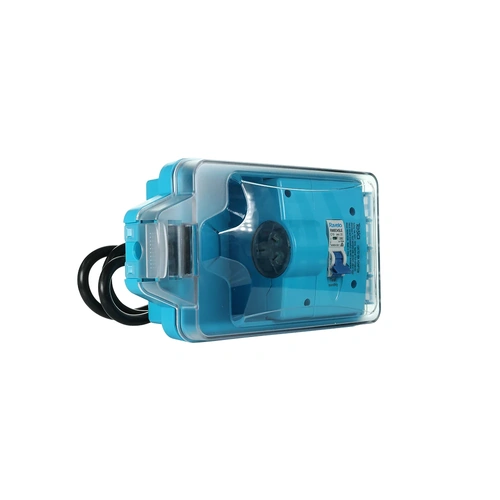

The Tesla RVPA-1510B Caravan Power Adaptor safely connects a 15A caravan or motorhome plug to a standard 10A domestic outlet. Designed for outdoor use, it features an IP55 weatherproof rating and a built-in RCBO for protection against overloads and current leakage. The adaptor includes a durable plastic lid and a 1.5 metre power cord for easy connection.
Rated at 10A and 2400W, it complies with AS/NZS 3190:2016+A1 and is TUV approved. Ideal for caravans, motorhomes, and tools requiring a 15A plug on a 10A outlet.
Q: Can I use this adaptor outdoors?
A: Yes, its IP55 rating makes it weatherproof and suitable for outdoor use.
Q: What protection does it provide?
A: It has an RCBO for overload and current leakage protection.
Q: What’s the maximum load?
A: It supports up to 10A, 2400W at 250V~ 50/60Hz.
(RVPA-1510B)
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
| Specification | Details |
|---|---|
| Model | RVPA-1510B |
| Panel Type | Monocrystalline PERC |
| Rated Power (Pmax) | 510 W |
| Module Efficiency | 20.9% |
| Open Circuit Voltage (Voc) | 49.60 V |
| Short Circuit Current (Isc) | 13.00 A |
| Voltage at Pmax (Vmp) | 41.60 V |
| Current at Pmax (Imp) | 12.26 A |
| Maximum System Voltage | 1500 V DC |
| Power Tolerance | 0 ~ +5 W |
| Operating Temperature | -40°C to +85°C |
| NOCT | 45 ± 2°C |
| Temperature Coefficient (Pmax) | -0.35%/°C |
| Temperature Coefficient (Voc) | -0.28%/°C |
| Temperature Coefficient (Isc) | +0.048%/°C |
| Dimensions (L x W x H) | 2094 x 1134 x 35 mm |
| Weight | 25.0 kg |
| Glass Type | 3.2mm Tempered Glass |
| Frame Material | Anodized Aluminium Alloy |
| Junction Box | IP68 Rated |
| Cable | 4mm² (length 1200mm) |
| Connector Type | MC4 Compatible |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Tesla |
| SKU | RVPA-1510B |
| Barcode # | 0710497785228 |
| Package Weight | 0.920kg |
| Package Width | 0.270m |
| Package Height | 0.105m |
| Package Length | 0.170m |
| TYPE | VALUE |
|---|---|
| Brand | Tesla |
| Voltage (V) | 250 |
| Pin Number | 3 |
| Amperage Range | 15A to 10A |
| Weatherproof | Yes | IP55 |
| Overload Circuit Breaker | 2400W |
