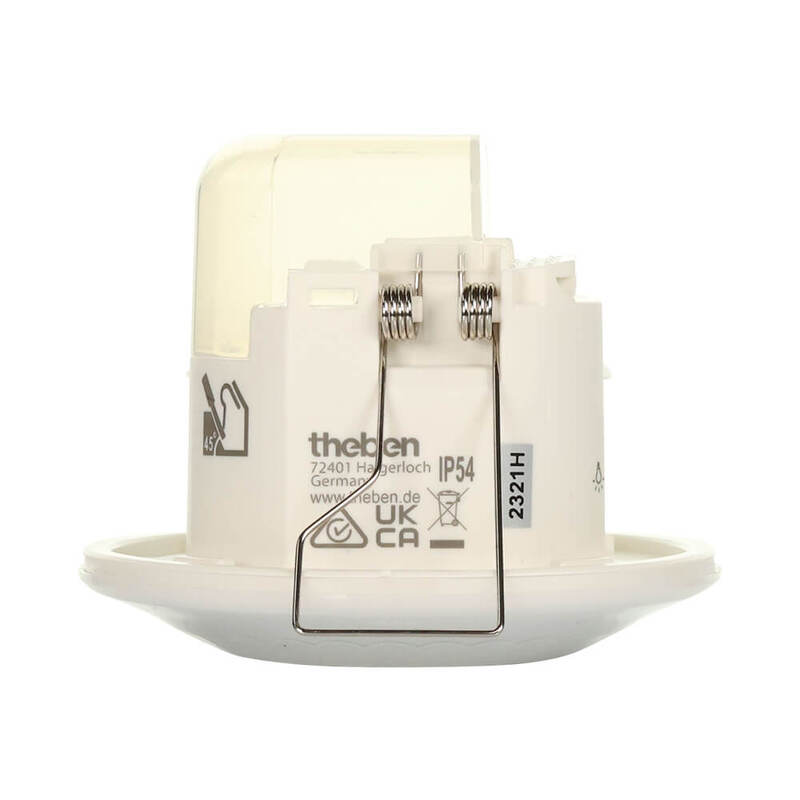

Theben 1030052 | Luxa PIR Detector Ceiling Surface/Flush Mount 360° | White
Learn more by watching our Theben 1030052 | Luxa PIR Detector Ceiling Surface/Flush Mount 360° | White video.
The Theben 1030052 Luxa PIR Detector is a versatile passive infrared presence detector designed for ceiling installations. It can be surface-mounted or flush-mounted using the included springs, protection cap, and mounting frame.
Featuring a 360° circular detection area with a diameter of 12 meters (covering 113 m²) at a 3-meter mounting height. It supports parallel switching of up to 8 detectors, extending the detection area.
Preconfigured for immediate use, it includes teach-in, pulse, test, and staircase lighting functions. The detection range can be restricted as needed, and it operates efficiently within a brightness setting range of 5 lx to 1000 lx.
Q: What is the detection range of the Theben 1030052 Luxa PIR Detector?
A: The detector has a 360° detection range with a diameter of 12 meters, covering an area of 113 m² at a 3-meter mounting height.
Q: Can this PIR detector be mounted flush with the ceiling?
A: Yes, it can be flush-mounted using the removable springs, protection cap, and enclosed mounting frame.
Q: How many detectors can be connected in parallel to extend the detection area?
A: Up to 8 detectors can be connected in parallel to extend the detection area.
Q: What types of lamps can this detector control?
A: The detector can control incandescent/halogen lamps, fluorescent lamps, energy-saving lamps, and LEDs.
(1030052)
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
| Specification | Details |
|---|---|
| Operating voltage | 230 V AC |
| Frequency | 50 Hz |
| Stand-by consumption | ca. 0.5 W |
| Light measurement | Mixed light measurement |
| Colour | White |
| Switching output | Light |
| Installation type | Ceiling installation |
| Setting range brightness | 5 lx - 1000 lx |
| Detection angle | 360° |
| Installation height | 2.5 - 3.5 m |
| Light switch-off delay | 15 s - 30 min |
| Incandescent/halogen lamp load | 2300 W |
| Inrush current max. | 500 A / 200 µs |
| LED lamp 2-8 W | 400 W |
| LED lamp > 8 W | 400 W |
| Lamp types | Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs |
| Detection range | 113 m² (ø 12 m | 360°) |
| Detection range | Round |
| Remote controlled | Optional |
| Ambient temperature | -25°C ... 55°C |
| Type of protection | IP 54 (when fitted) |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Theben |
| SKU | 1030052 |
| Barcode # | 4003468101735 |
| Shipping Weight | 0.1100kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.070m |
| Shipping Length | 0.090m |
| Shipping Cubic | 0.000630000m3 |
| TYPE | VALUE |
|---|---|
| Type | PIR Sensor |
| Brand | Theben |
| Colour | White |
| Detection angle | 360° |
| Frequency | 50Hz |
| Installation Height | 2.5 - 3.5 m |
| Operating Temperature | 230V AC |
| Brightness Range | 5 lx - 1000 lx |
| IP Rating | IP54 |
