        Learn more by watching our Theben THELUXA-S180-WH | Outdoor Wall PIR Motion Detector 180° IP55 | White video.

        Description

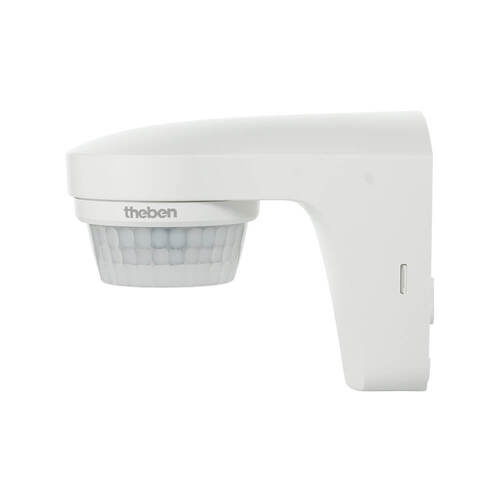

        Theben THELUXA-S180-WH | Outdoor Wall PIR Motion Detector 180° IP55 | White

        Theben THELUXA-S180-WH is a high-performance outdoor PIR motion detector designed to provide reliable home security. With a 180° detection angle and adjustable sensor head, this device ensures comprehensive coverage of outdoor areas.

        It has features such as adjustable brightness and switch-off delay, mixed light measurement, and zero-cross switching for extended relay life. The robust design includes IP55 protection, making it suitable for various weather conditions. Easy to install and operate, the THELUXA-S180-WH is an excellent choice for enhancing outdoor security.

        180°PIR Motion Detector Features:

        • Wide Detection Angle: 180° detection angle ensures broad coverage.
        • Adjustable Sensor Head: The sensor head can be turned ±90° horizontally.
        • Mixed Light Measurement: Suitable for controlling fluorescent, incandescent, halogen lamps, and LEDs.
        • Zero-Cross Switching: Extends relay life and supports high lamp loads.
        • Adjustable Settings: Customisable brightness switching value (5 lx - 1000 lx) and switch-off delay (1s - 20 mins).
        • Robust Design: IP55 rated for protection against dust and water and IK04 impact resistance.
        • Easy Installation: Single-handed plug-in installation on a flush-mounted socket (60mm).
        • Energy Efficient: Low stand-by consumption of ~0.9W.
        • Instant Start-Up: Factory presets allow for quick and easy initial setup.
        • Creep Under Protection: Additional protection for enhanced security.

        THELUXA-S180-WH FAQ:

        Q: What type of lamps can the THELUXA-S180-WH control?
        A: It can control incandescent, halogen, fluorescent lamps, energy-saving lamps, and LEDs.

        Q: How easy is it to install the THELUXA-S180-WH?
        A: The detector features a single-handed plug-in installation and can be mounted on a flush-mounted socket (60mm) for quick and easy setup.

        Q: Can the brightness and switch-off delay be adjusted?
        A: Yes, the brightness switching value can be set between 5 lx and 1000 lx, and the switch-off delay can be adjusted from 1 second to 20 minutes.

        Q: What is the detection range of the motion detector?
        A: The detection range is semicircular, covering a 180° angle.

        (THELUXA-S180-WH)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Features
        Specification Detail
        Operating Voltage 230 V AC
        Frequency 50 Hz
        Stand-by Consumption ~0.9 W
        Light Measurement Mixed light measurement
        Number of Channels 1
        Colour White (similar RAL 9010)
        Switching Output Light
        Installation Type Wall installation, Outdoor
        Setting Range Brightness 5 lx - 1000 lx
        Switching Capacity 10 A at 230 V AC, cos φ = 1, 6 A at 230 V AC, cos φ = 0.6, 3 AX at 230 V AC, cos φ = 0.3
        Detection Angle 180°
        Installation Height 2 - 4 m
        Light Switch-off Delay 1 s - 20 min
        Incandescent/Halogen Lamp Load 2300 W
        Fluorescent Lamp Load (Conventional, Not Corrected) 2300 VA
        Fluorescent Lamp Load (Conventional, Parallel-Corrected) 1200 VA 120 µF
        Fluorescent Lamp Load (Conventional, Series-Corrected) 2300 VA
        Fluorescent Lamp Load
        (Electronic Ballast)
        1000 W
        Energy Saving Lamps 250 W
        Inrush Current Max. 300 A / 200 µs
        LED Lamp < 2 W 50 W
        LED Lamp 2-8 W 500 W
        LED Lamp > 8 W 500 W
        Lamp Types Incandescent/halogen lamps,
        fluorescent lamps,
        energy-saving lamps,
        LEDs
        Detection Range Semicircular
        Ambient Temperature -25°C ... 45°C
        Impact Resistance IK04
        Protection Class II
        Type of Protection IP 55
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Theben
        SKU THELUXA-S180-WH
        Barcode # 4003468100240
        Shipping Weight 0.2800kg
        Shipping Width 0.135m
        Shipping Height 0.105m
        Shipping Length 0.090m
        Shipping Cubic 0.001275750m3
        TYPE VALUE
        Type PIR Sensor
        Brand Theben
        Colour White
        Frequency 50Hz
        IP Rating IP55
        Operating Voltage 230V AC
        IK Rating IK04
        Detection angle 180°
        Brightness Range 5 lx - 1000 lx
        Installation Height 2 - 4m
