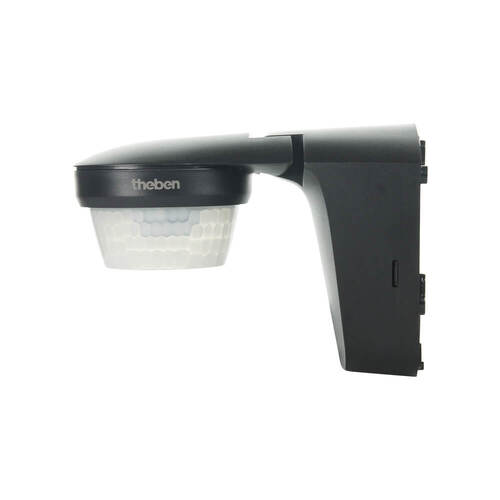

Theben THELUXA-S360-BK | Outdoor Wall PIR Motion Detector 360° IP66 | Black
Learn more by watching our Theben THELUXA-S360-BK | Outdoor Wall PIR Motion Detector 360° IP66 | Black video.
The Theben THELUXA-S360-BK is an advanced outdoor PIR motion detector for wall and ceiling installations. With a comprehensive 360° detection angle, this device ensures complete coverage of your outdoor areas. The adjustable sensor head allows for precise positioning, and the detector is equipped with features such as adjustable brightness, switch-off delay, and sensitivity settings.
It supports various lamp types, including fluorescent, incandescent, halogen, and LEDs, making it versatile for most lighting. The robust IP66 rating ensures durability against harsh weather conditions, while the easy installation process makes it a convenient choice for homeowners looking to enhance their security.
Q: What applications is the THELUXA-S360-BK suitable for?
A: It is ideal for outdoor security in residential areas, ensuring complete coverage of spaces such as gardens, driveways, and patios.
Q: How does the sensitivity adjustment feature work?
A: Sensitivity can be reduced to limit the detection area, and you can use the lens attachment to define the area of detection further.
Q: What types of lamps can this motion detector control?
A: It is compatible with incandescent, halogen, fluorescent lamps, energy-saving lamps, and LEDs.
Q: Is the THELUXA-S360-BK weatherproof?
A: Yes, it has an IP66 rating, providing excellent protection against dust and water, making it suitable for outdoor use in various weather conditions.
(THELUXA-S360-BK)
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
| Specification | Detail |
|---|---|
| Operating Voltage | 230 V AC |
| Frequency | 50 Hz |
| Stand-by Consumption | ~0.5 W |
| Light Measurement | Mixed light measurement |
| Number of Channels | 1 |
| Colour | Black (similar RAL 9005) |
| Switching Output | Light |
| Installation Type | Wall and ceiling installation, Outdoor |
| Setting Range Brightness | 5 lx - 1000 lx |
| Switching Capacity | 10 A at 230 V AC, cos φ = 1, 6 A at 230 V AC, cos φ = 0.6, 3 AX at 230 V AC, cos φ = 0.3 |
| Detection Angle | 360° |
| Installation Height | 2 - 4 m |
| Light Switch-off Delay | 1 s - 20 min |
| Incandescent/Halogen Lamp Load | 2300 W |
| Fluorescent Lamp Load (Conventional, Not Corrected) | 2300 VA |
| Fluorescent Lamp Load (Conventional, Parallel-Corrected) | 1200 VA 120 µF |
| Fluorescent Lamp Load (Conventional, Series-Corrected) | 2300 VA |
| Fluorescent Lamp Load (Electronic Ballast) | 1000 W |
| Energy Saving Lamps | 250 W |
| Inrush Current | Max. 300 A / 200 µs |
| LED Lamp < 2 W | 50 W |
| LED Lamp 2-8 W | 500 W |
| LED Lamp > 8 W | 500 W |
| Lamp Types | Incandescent/halogen lamps, fluorescent lamps, energy-saving lamps, LEDs |
| Detection Range | Round |
| Ambient Temperature | -25°C ... 45°C |
| Protection Class | II |
| Type of Protection | IP 66 |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Theben |
| SKU | THELUXA-S360-BK |
| Barcode # | 4003468100271 |
| Shipping Weight | 0.3300kg |
| Shipping Width | 0.150m |
| Shipping Height | 0.105m |
| Shipping Length | 0.090m |
| Shipping Cubic | 0.001417500m3 |
| TYPE | VALUE |
|---|---|
| Type | PIR Sensor |
| Brand | Theben |
| Colour | Black |
| Frequency | 50Hz |
| IP Rating | IP66 |
| Operating Temperature | 230V AC |
| Detection angle | 360° |
| Brightness Range | 5 lx - 1000 lx |
| Installation Height | 2 - 4m |
