The Thermogroup 112006TD Thermonet Underfloor Heating Kit is designed to provide warmth across 3m² of flooring area, utilizing 600 watts of power for an efficient heating solution. Designed for screed layers of 20mm to 50mm, this system is optimal when installed over insulation boards, ensuring maximum efficiency and comfort. Featuring a unique, stress-free cable that emits zero electromagnetic fields (Zero EMF), the Thermonet kit prioritizes your health and safety while delivering consistent heat.
The self-adhesive mesh backing simplifies the installation process, firmly securing the heating mat to the substrate and facilitating easy levelling and tile fixing. With its 200W/m² power rating, this underfloor heating system is ideally suited for small spaces, providing an extensive heat output that efficiently warms the entire room. It's particularly effective in areas prone to high heat loss, a situation significantly improved with the addition of under-heating insulation.

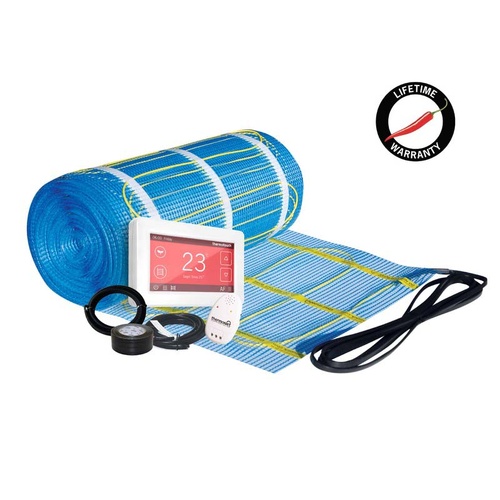

Thermonet 200W/m² Mat
Programmable Thermostat (5245)
Floor Temperature Sensor
Sensor Conduit, Fixing Tape
Cable Monitor (6025)
Installation Guide & Warranty Form.
Q: Can the Thermonet kit be used under any flooring type?
A: Yes, it's compatible with most flooring types, offering versatile installation options.
Q: What is the maximum temperature the Thermonet system can reach?
A: The Thermonet system is designed to reach a maximum temperature of 28°C, providing comfortable warmth without overheating the space.
Q: How does the system handle high heat loss areas?
A: The 200W/m² rating provides significant warmth, with improved efficiency when installed over insulation, making it ideal for high heat loss areas.
(112006TD)
Warranty starts from Invoice Date
Domestic Use: Lifetime
Commercial Use: Lifetime
Thermostat Warranty: 3 Years
Warranty Method: Return to Sparky Direct
| Specification | Details |
|---|---|
| Width | 500mm |
| Heated Width | 430mm |
| Thickness | 3.5mm |
| Area | 3m² |
| Max. Temperature | 28°C |
| Protection Rating | IP68 |
| Wattage | 200W/m² |
| Amperage | 2.08A |
| Resistance | 106Ω |
| Conductor Type | Single Ended |
| Cold Tail Length | 5m |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Thermogroup |
| SKU | 112006TD |
| Barcode # | 9349970011878 |
| Package Weight | 2.500kg |
| Package Width | 0.220m |
| Package Height | 0.700m |
| Package Length | 0.220m |
| TYPE | VALUE |
|---|---|
| Type | Floor Heating |
| Brand | Thermogroup |
