Name: Thermogroup 112007T | Thermonet Underfloor Heating Kit 7x0.5m - 3.5m² 700Watts
Brand: Thermogroup
SKU: 112007T
Price: 792.00 AUD
Availability: InStock

Thermogroup 112007T | Thermonet Underfloor Heating Kit 7x0.5m - 3.5m² 700Watts

The Thermonet 112007T Underfloor Heating Kit is designed to provide a warm, comfortable surface to any room, particularly suited for spaces prone to high heat loss. This 3.5m², 700W (200W/m²) heating kit is perfect for installation in screeds ranging from 20mm to 50mm, ideally atop insulation boards to maximize heat efficiency. It is an excellent choice for areas with limited floor space, ensuring high heat output across the entire floor area.

Featuring the unique TwistedTwin cable technology on a fully self-adhesive mesh, the Thermonet heating system promises a durable, long-lasting heating solution with zero electromagnetic field (Zero EMF) emission. This innovative design simplifies installation, ensuring the mat firmly adheres to the substrate, is ready for self-levelling and tile fixing, and streamlines the installation process.

Thermonet Underfloor Kit Features:

High Heat Output: 200W/m² rating ensures rapid and efficient heating, ideal for rooms with high heat loss.

Optimal for Limited Spaces: Specifically designed for areas with restricted floor availability, providing comprehensive coverage.

Innovative Cable Technology: TwistedTwin cable offers durability and a zero EMF, placed on a self-adhesive mesh for hassle-free installation.

Waterproof and Safe: IP68 protection rating guarantees safety in wet areas, backed by a lifetime warranty on the heating mat.

Comprehensive Kit: Includes a 7 x 0.5m heating mat covering a total area of 3.5m² with a 700W output and a 5m cold tail for easy connection.

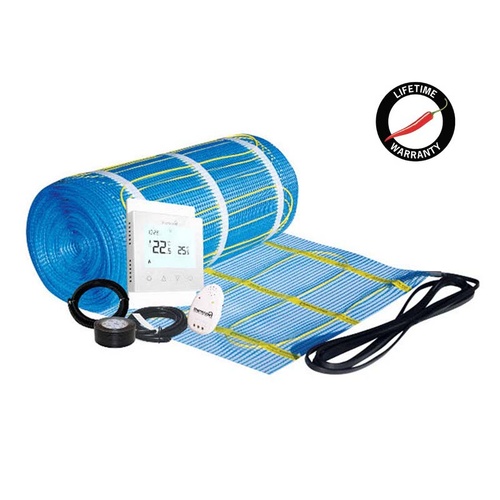

Heating Kit Includes:

Thermonet 200W/m² Mat
Programmable Thermostat (5220A)
Floor Temperature Sensor
Sensor Conduit, Fixing Tape
Cable Monitor (6025)
Installation Guide & Warranty Form.

112007T FAQ:

Q: Can the Thermonet heating kit be installed under any type of flooring?
A: It's designed for screed layers of 20mm to 50mm, ideal under tiled floors. Check compatibility for other flooring types.

Q: What makes the TwistedTwin cable unique?
A: Its stress-free construction ensures longevity and safety with zero EMF, making it suitable for health-conscious environments.

Q: How does the underfloor heating improve room warmth?
A: Its high output effectively combats areas with high heat loss, ensuring the entire room remains warm and comfortable.

Specification

Details

Width

500mm

Heated Width

430mm

Thickness

3.5mm

Area

3.5m²

Max. Temperature

28°C

Protection Rating

IP68

Wattage

200W/m²

Amperage

2.92A

Resistance

76Ω

Conductor Type

Single Ended

Cold Tail Length

TYPE

VALUE

Type

Floor Heating

Brand

Thermogroup

Brand	Thermogroup
SKU	112007T
Barcode #	9349970011588
Shipping Weight	2.5000kg
Shipping Width	0.220m
Shipping Height	0.700m
Shipping Length	0.220m
Shipping Cubic	0.033880000m3
