Description:
The Thermogroup 112009TD Thermonet Underfloor Heating Kit, designed for an area of 4.5m² and delivering 900 watts of power, is a prime solution for achieving efficient, high-output floor heating. This system is specifically tailored for in-screed applications, suitable for screed layers ranging from 20mm to 50mm, ensuring enhanced heat retention and reduced operational costs. Featuring a distinctive stress-free cable that emits zero electromagnetic fields (Zero EMF), the Thermonet kit is built for longevity while ensuring your well-being.
The self-adhesive mesh ensures a quick and straightforward installation process, firmly securing the heating mat for easy levelling and tile application. With a 200W/m² rating, these underfloor heating mats are perfectly suited for areas with restricted flooring space, offering significant heat output to thoroughly warm your environment. Moreover, they excel in high heat loss areas, with performance further amplified when used alongside under-floor insulation.

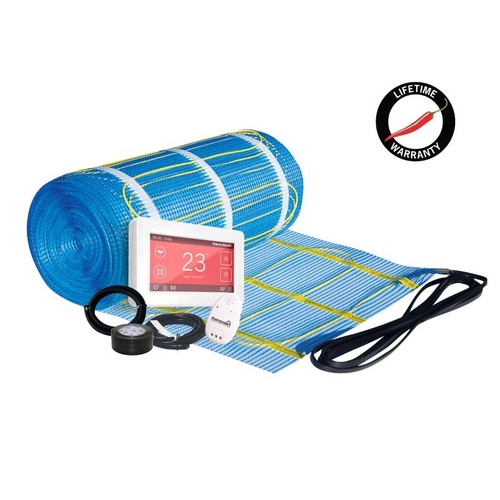

Thermonet 200W/m² Mat
Programmable Thermostat (5245)
Floor Temperature Sensor
Sensor Conduit, Fixing Tape
Cable Monitor (6025)
Installation Guide & Warranty Form.
Q: Can this underfloor heating system be used under any type of floor covering?
A: Yes, it's versatile enough to be installed under most floor coverings, enhancing the flexibility of your flooring choices.
Q: How does the system manage in areas prone to significant heat loss?
A: The 200W/m² power rating, along with the recommendation to install over insulation, ensures efficient warming of areas with high heat loss, maintaining a comfortable room temperature.
Q: What makes the Thermonet system environmentally friendly?
A: Its Zero EMF emission and energy-efficient operation make it an eco-friendly choice for underfloor heating, contributing to a healthier living environment.
(112009TD)
Warranty starts from Invoice Date
Domestic Use: Lifetime
Commercial Use: Lifetime
Thermostat Warranty: 3 Years
Warranty Method: Return to Sparky Direct
| Specification | Details |
|---|---|
| Width | 500mm |
| Heated Width | 430mm |
| Thickness | 3.5mm |
| Area | 4.5m² |
| Max. Temperature | 28°C |
| Protection Rating | IP68 |
| Wattage | 200W/m² |
| Amperage | 3.75A |
| Resistance | 59Ω |
| Conductor Type | Single Ended |
| Cold Tail Length | 5m |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Thermogroup |
| SKU | 112009TD |
| Barcode # | 9349970011908 |
| Shipping Weight | 2.5000kg |
| Shipping Width | 0.220m |
| Shipping Height | 0.700m |
| Shipping Length | 0.220m |
| Shipping Cubic | 0.033880000m3 |
| TYPE | VALUE |
|---|---|
| Type | Floor Heating |
| Brand | Thermogroup |
