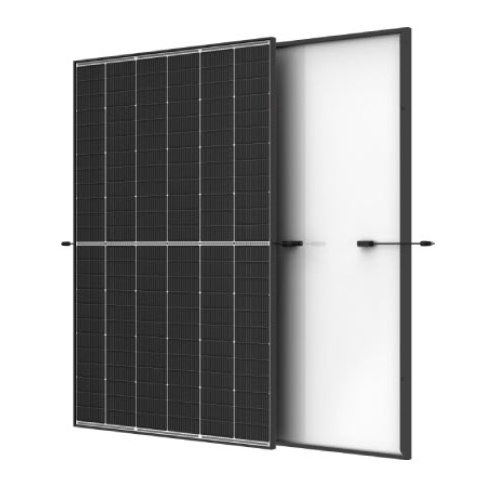

        Trina TSM-440NEG9R.28 | Vertex S Solar Panel Dual Glass Monocrystalline | 440W

        The Trina Vertex S+ 440W is a high-efficiency solar panel designed for long-lasting performance in challenging environments. With a peak efficiency of 22.5%, it maximizes energy yield while its innovative dual-glass construction enhances durability, resisting micro-cracks, scratches, and environmental stress. Ideal for residential and commercial setups, the panel operates efficiently in hot, humid, or coastal conditions, with superior protection against salt spray and sand dust.

        Built with advanced multi-busbar technology, it ensures improved light capture and reliability. The sturdy frame supports mechanical loads of up to 5400 Pa, making it compatible with most inverters and mounting systems. A 15-year product warranty and 30-year power output warranty guarantee long-term reliability and minimal degradation.

        Trina Vertex S+ 440W Features:

        • High Efficiency: Delivers up to 22.5% efficiency for maximum energy production.
        • Dual-Glass Design: Enhanced durability with resistance to micro-cracks and environmental stress.
        • Durability: Certified to withstand harsh climates, including salt spray and sand dust.
        • Temperature Resilience: Operates efficiently in warm environments with a low temperature coefficient.
        • High Power Output: Produces up to 440W of power with a tolerance of 0~+5W.
        • Compact Design: Lightweight and perfect for rooftops with limited load capacity.
        • Mechanical Strength: Handles up to 5400 Pa positive and 4000 Pa negative loads.

        Trina Vertex S+ 440W FAQ:

        Q: What is the efficiency of this solar panel?
        A: The panel achieves a maximum efficiency of 22.5%.

        Q: How long is the warranty period?
        A: It includes a 15-year product warranty and a 30-year power output warranty.

        Q: Is this panel suitable for coastal installations?
        A: Yes, its resistance to salt spray makes it ideal for coastal and humid environments.

        Q: Can it withstand heavy snow or wind?
        A: Absolutely, the panel is designed to endure up to 5400 Pa of positive and 4000 Pa of negative mechanical loads.

        Q: What technology improves the panel's performance?
        A: Advanced multi-busbar technology enhances light capture and reliability for improved overall performance.

        (TSM-440NEG9R.28)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 15 Year for materials and processing, 30 Year power warranty
        Commercial Use: 15 Year for materials and processing, 30 Year power warranty
        Warranty Method: Return To Sparky Direct

        Features
        Specification Details
        Model TSM-440NEG9R
        Maximum Power Output (Pmax) 440W
        Module Efficiency 21.8%
        Power Tolerance 0 ~ +5W
        Open Circuit Voltage (Voc) 51.8V
        Short Circuit Current (Isc) 9.99A
        Maximum Power Voltage (Vmpp) 43.6V
        Maximum Power Current (Impp) 10.09A
        Maximum System Voltage 1500V DC
        Fuse Rating 20A
        Dimensions (L x W x H) 1762mm x 1134mm x 30mm
        Weight 21.0 kg
        Operating Temperature -40°C ~ +85°C
        Connector Type MC4
        Cable Cross Section 4mm²
        J-Box IP68
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Trina
        SKU TSM-440NEG9R.28
        Package Weight 21.000kg
        Package Width 1.760m
        Package Height 0.030m
        Package Length 1.140m
        TYPE VALUE
        Type Solar Panel
        Brand Trina
        Wattage (W) 440
        IP Rating IP68
