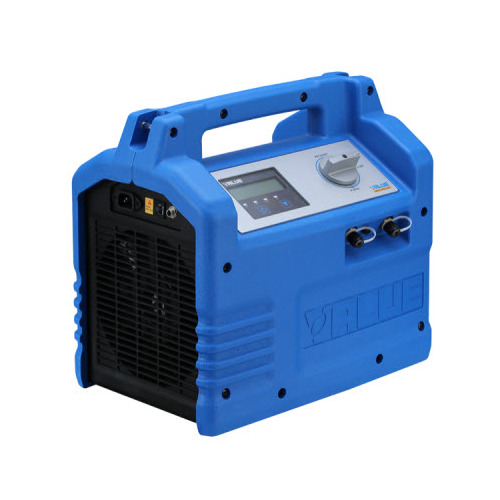

        Value VRR24M-B | Recovery Unit 220-240V AC 50/60Hz | Refrigerants Category III, IV and V

        Description:

        The Value VRR24M-B Recovery Unit is a high-performance tool crafted for HVAC professionals. This unit specializes in the rapid recovery of various refrigerants, including HFC and HCFC. It features a robust brushless DC motor with a 1 HP capacity, ensuring efficient and reliable operation. The digital display and high/low pressure gauges enhance usability, while the self-purge function and one-knob operation streamline the recovery process. The two-piston compressor enhances its performance, making it a must-have for demanding tasks.

        This unit is tailored for Refrigerants Categories III, IV, and V, making it versatile for a wide range of applications. It operates on a 230/50 V/Hz power supply and boasts a motor speed of 3000 RPM. With a maximum current draw of 5 A and an oil-less, air-cooled, piston-style compressor, it combines efficiency with durability. The automatic safety shut-off feature ensures secure operation.

        The recovery rates vary with each refrigerant category, offering impressive speeds for vapour, liquid, and push/pull methods. Its operating temperature range is from 0 to 40 ⁰C, and it's conveniently sized at 380 x 250 x 360 mm, with a manageable weight of 11.0 kg.

        Key Features:

        • Efficient Refrigerant Recovery: Rapid recovery suitable for multiple refrigerant types.
        • Powerful Motor: 1 HP brushless DC motor, 3000 RPM, 5 A max current draw.
        • User-Friendly Interface: Digital display with high/low pressure gauges.
        • Convenient Design: Self-purge function and one-knob operation.
        • High-Performance Compressor: Two-piston, oil-less, air-cooled design.
        • Safety Features: Automatic shut-off at 38.5/3850 bar/kPa (558 psi).
        • Adaptable Recovery Rates: Excellent for various refrigerants across Categories III, IV, and V.
        • Compact and Lightweight: Dimensions of 380 x 250 x 360 mm, weighing 11.0 kg.

        FAQ:

        Q: What refrigerants is the VRR24M-B compatible with?
        A: It's compatible with refrigerants in Categories III, IV, and V, including R-12, R-134a, R-407C, R-410A, and more.

        Q: What is the power specification of this recovery unit?
        A: It operates on a 230/50 V/Hz power supply with a 1 HP motor.

        Q: What are the dimensions and weight of this unit?
        A: The unit measures 380 x 250 x 360 mm and weighs 11.0 kg.

        Q: Is the compressor oil-less?
        A: Yes, it features an oil-less, air-cooled, piston-style compressor.

        (VRR24M-B)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Features
        Specification Detail
        Refrigerants: Category III R-12, R-134a, R-401C, R-500, 1234yf
        Refrigerants: Category IV R-22, R-401A, R-401B, R-402B, R-407C, R-407D, R-408A, R-409A, R-411A, R-411B, R-412A, R-502, R-509
        Refrigerants: Category V R-402A, R-404A, R-407A, R-407B, R-410A, R-507, R32
        Power supply 230/50 V/Hz
        Power 1 KM
        Motor speed 3000 RPM
        Maximum current draw 5 A
        Compressor Oil-less, air-cooled, piston style
        Automatic safety shut-off 38,5/3850 bar/kPa (558 psi)
        Recovery rate: Category III - Vapor / Liquid / Push/pull 0,40 / 3,30 / 7,50 kg/min
        Recovery rate: Category IV - Vapor / Liquid / Push/pull 0,50 / 3,85 / 8,50 kg/min
        Recovery rate: Category V - Vapor / Liquid / Push/pull 0,50 / 3,85 / 9,50 kg/min
        Operating temperature 0 - 40 ⁰C
        Dimensions 380 x 250 x 360 mm
        Weight 11.0 kg
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Value
        SKU VRR24M-B
        Shipping Weight 11.0000kg
        Shipping Width 0.380m
        Shipping Height 0.360m
        Shipping Length 0.250m
        Shipping Cubic 0.034200000m3
        TYPE VALUE
        Type Recovery Unit
        Brand Value
        Colour Blue
